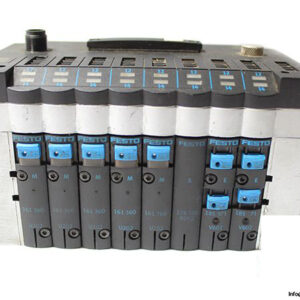

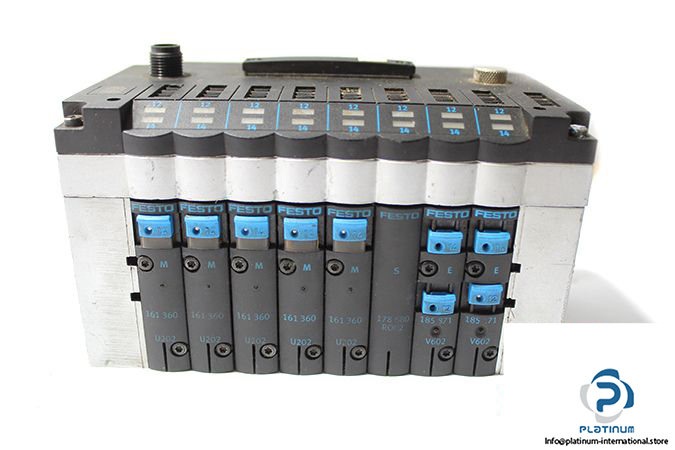

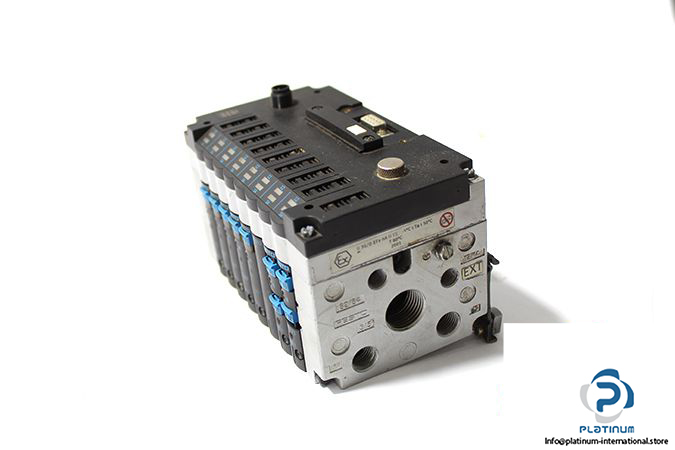

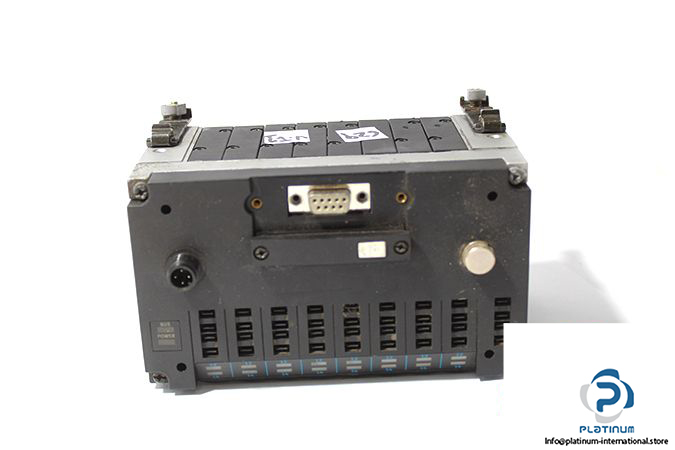

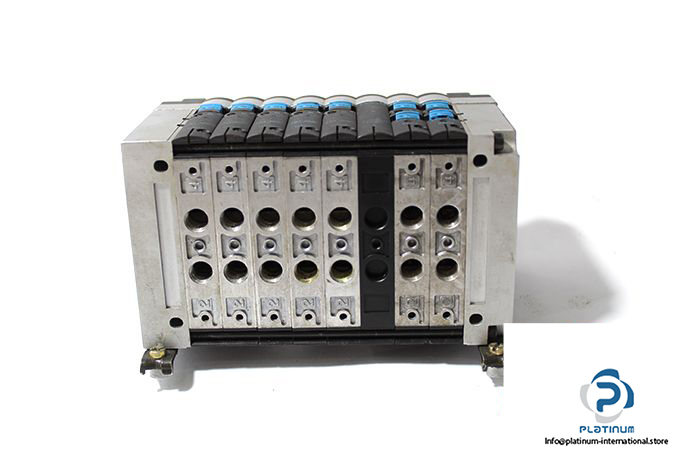

Festo 18210 Valve Terminals With 6 Valves

Name: FESTO 18210 VALVE TERMINALS WITH 6 VALVES
SKU: 972762
Availability: LimitedAvailability

festo-18210-valve-terminals-with-6-valves-4

festo-18210-valve-terminals-with-6-valves-2

festo-18210-valve-terminals-with-6-valves-3

festo-18210-valve-terminals-with-6-valves-1

Used

Available on request

SKU

972762

Category

Pneumatic Valves

Condition

Used

6 CPV functions Pneumatic Terminals Valve valves

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: FESTO

Type: Valve Terminals With 6 Valves

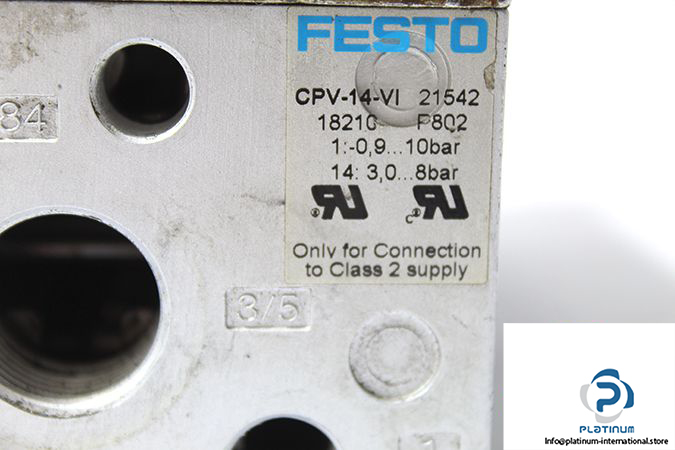

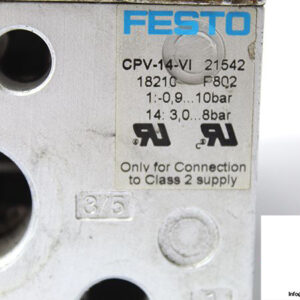

Model: CPV-14-VI

Part No.: 18210

Design: Electromagnetically Actuated Piston Spool Valve

Valve functions:

5x 5/2 Air solenoid valve (FESTO 161360)

1x Separator plate (FESTO 178680)

2x Vacuum generator (FESTO 185871)

Width: 14 mm

Nominal Flow Rate without Fitting: 800 l/m

Pneumatic Connections:

Supply ports (1/11): G1/4

Exhaust port (3/5): G1/2

Working ports (2/4): G1/8

Pilot air supply ports (12/14): M7

Pilot Exhaust Air Ports (82/84): M7

Operating pressure:

Port (1): -0.9 …. 10 bar

Port (14): 3 …. 8 bar

Electrical connection: 9 pin-plug

Ambient Temperature: -5 …. +50 °C

Operating voltage: 24 VDC

Weight: 1.46 kg
