Festo 18210 Valve Terminals With 8 Valves

Name: FESTO 18210 VALVE TERMINALS WITH 8 VALVES
SKU: 973144
Availability: LimitedAvailability

festo-18210-valve-terminals-with-8-valves-4-3

festo-18210-valve-terminals-with-8-valves-2-3

festo-18210-valve-terminals-with-8-valves-3-3

festo-18210-valve-terminals-with-8-valves-1-3

Used

Available on request

SKU

973144

Category

Pneumatic Valves

Condition

Used

8 CPV functions Pneumatic Terminals Valve valves

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: FESTO

Type: Valve Terminals With 8 Valves

Model: CPV14-VI

Part No.: 18210

Design: Electromagnetically Actuated Piston Spool Valve

Valve functions:

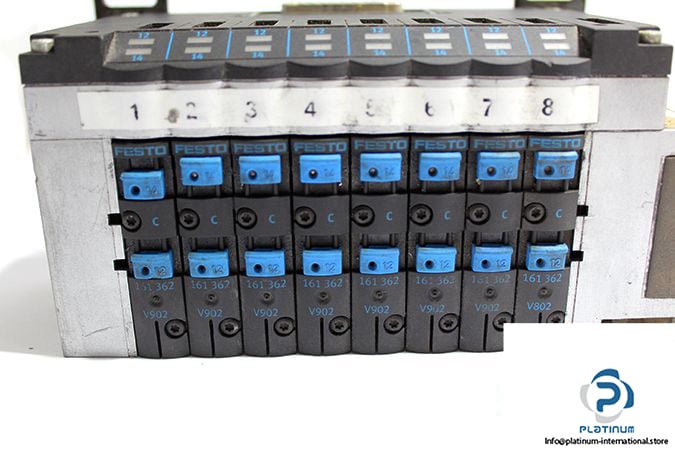

8x 3 /2 Air solenoid valve (FESTO 161362)

Width: 14 mm

Nominal Flow Rate without Fitting: 800 l/m

Pneumatic Connections:

Supply port (1): G1/4

Exhaust port (3/5): G1/2

Working ports (2/4): G1/8

Pilot Exhaust Air Port (82/84): 1/8

Operating pressure:

Port (1): -0.9 …. 10 bar

Port (14): 3 …. 8 bar

Electrical connection: 25 pin-plug

Ambient Temperature: -5 …. +50 °C

Operating voltage: 24 VDC

Weight: 1.7 kg
