Festo 18210 Valve Terminals With 8 Valves

Name: FESTO 18210 VALVE TERMINALS WITH 8 VALVES
SKU: 973754
Availability: LimitedAvailability

festo-18210-valve-terminals-with-8-valves-8

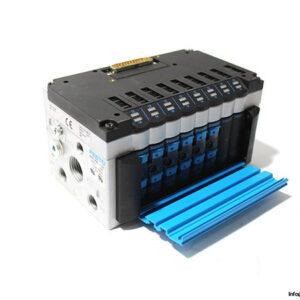

festo-18210-valve-terminals-with-8-valves-5-2

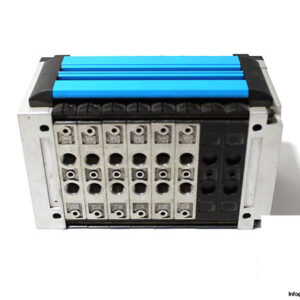

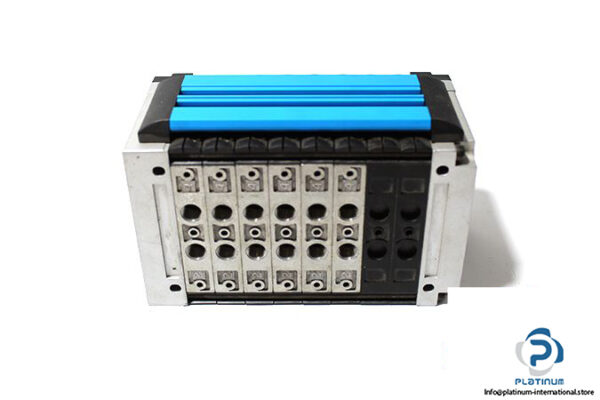

festo-18210-valve-terminals-with-8-valves-4-4

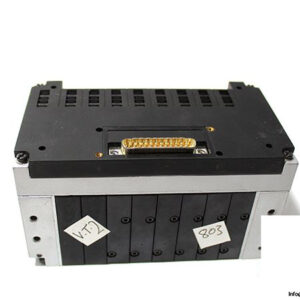

festo-18210-valve-terminals-with-8-valves-2-4

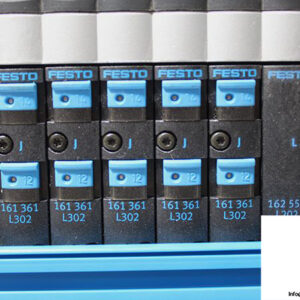

festo-18210-valve-terminals-with-8-valves-3-4

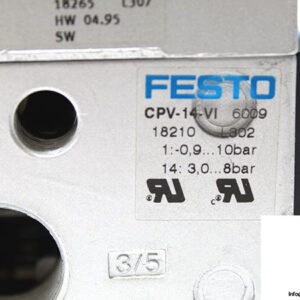

festo-18210-valve-terminals-with-8-valves-1-4

New

Available on request

SKU

973754

Category

Pneumatic Valves

Condition

New

8 CPV functions Pneumatic Terminals Valve valves

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: FESTO

Type: Valve Terminals With 8 Valves

Model: CPV-14-VI

Part No.: 18210

Design: Electromagnetically Actuated Piston Spool Valve

Valve functions:

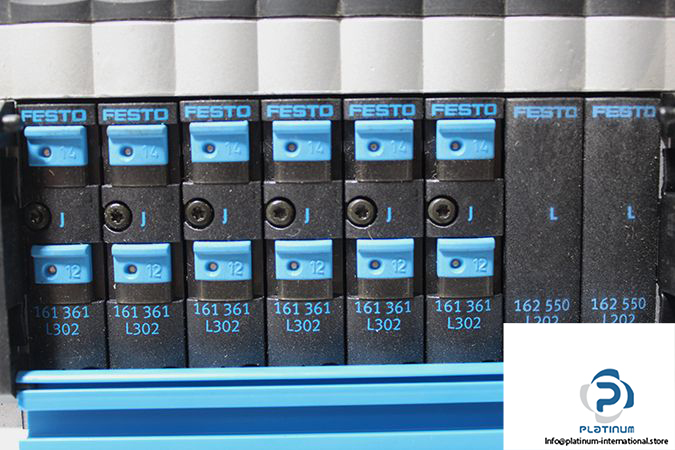

6x 5/2 Air solenoid valve (FESTO 161361)

2x Blanking plate (FESTO 162550)

Width: 14 mm

Nominal Flow Rate without Fitting: 800 l/m

Pneumatic Connections:

Supply ports (1/11): G1/4

Exhaust port (3/5): G1/2

Working ports (2/4): G1/8

Pilot air supply ports (12/14): G1/8

Pilot Exhaust Air Port (82/84): G1/8

Operating pressure:

Port (1): -0.9 …. 10 bar

Port (14): 3 …. 8 bar

Electrical connection: 25 pin-plug

Ambient Temperature: -5 …. +50 °C

Operating voltage: 24 VDC

Weight: 1.4 kg
