Festo 184495 Double Solenoid Valve Coil 373855
Used
In stock1 unitReady to ship
DOUBLE SOLENOID VALVE
FESTO JMEBH-5/2-D-1-ZSR-C double solenoid valve with MSEB-3-24V DC coil, 5/2 bistable function, and 1200 l/min flow capacity for air systems.5/2AirAluminiumBaseBistablecoildcDoubleFestoIndustrialJMEBH-5/2-D-1-ZSR-CMSEB-3-24VPneumaticsolenoidsubValveWay
New
Available on request 100,00$
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
FESTO JMEBH-5/2-D-1-ZSR-C DOUBLE SOLENOID VALVE WITH COIL

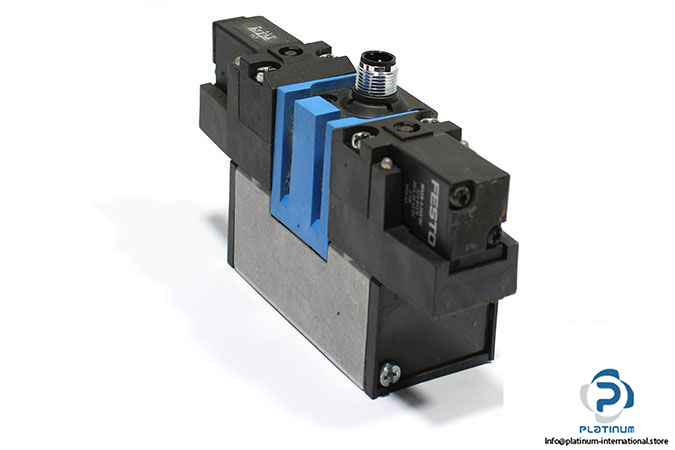

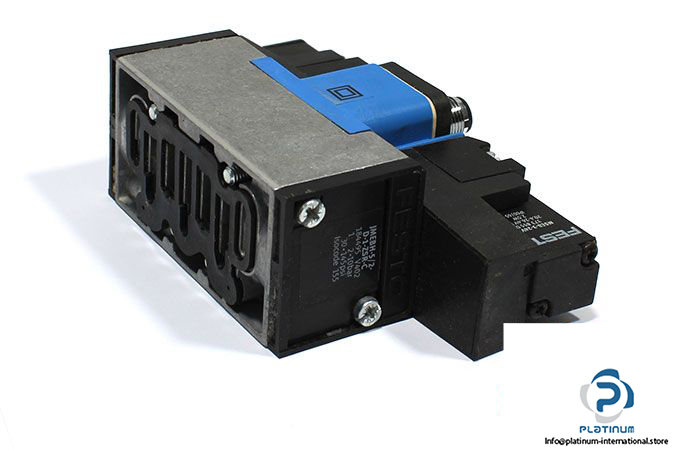

The FESTO JMEBH-5/2-D-1-ZSR-C is a high-performance 5/2 way bistable double solenoid valve designed for fast, reliable control in pneumatic systems. Built with robust aluminium die cast housing and paired with the FESTO MSEB-3-24V DC solenoid coil, this unit ensures efficient operation under varying pressure and temperature conditions.
Manufacturer: FESTO
Type: Double Solenoid Valve

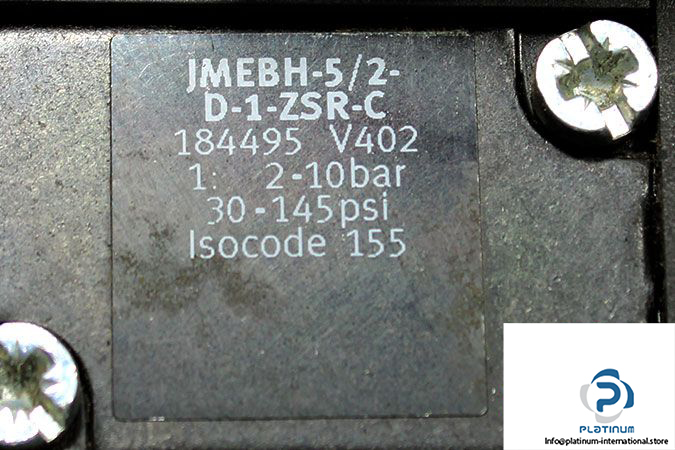

Model: JMEBH-5/2-D-1-ZSR-C
Part No.: 184495
Coil Technical Information
| Fluid | Air |

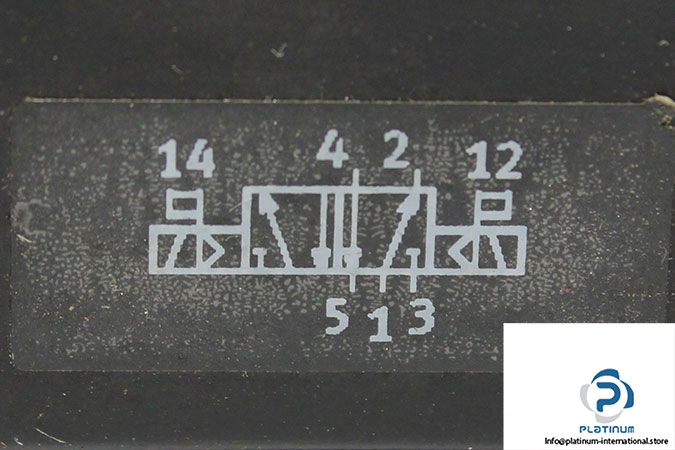

| Valve Function | 5/2 way bistable |
| Type of Actuation | Electrically |
| Operating Pressure | 2 / 10 bar |
| Nominal Flow Rate | 1200 l/min |
| Pneumatic Connection | Sub-base size 2 |
| Material | Aluminium die cast |
| Ambient Temperature | -5 / 40 °C |

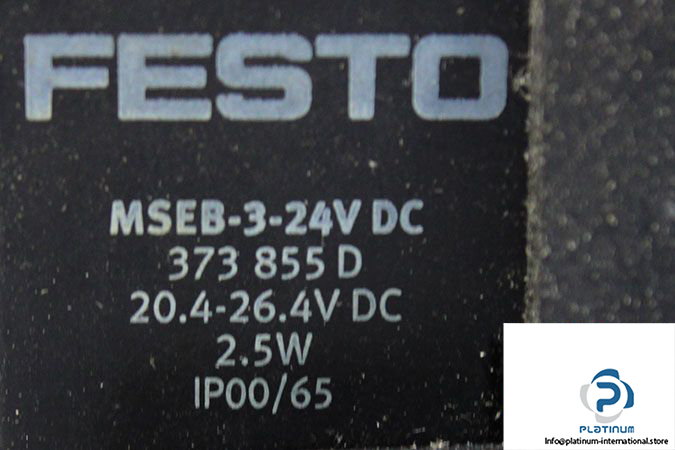

| Attachment | FESTO MSEB-3-24V DC Solenoid Coil |
| Part No. | 373855 D |
| Supply Voltage | 20.4 ... 26.4 V DC |
| Power Consumption | 2.5 W |
| Protection Class | IP00 / IP65 |
