Festo 184508 Single Solenoid Valve
Used
In stock1 unitReady to ship
SINGLE SOLENOID VALVE
FESTO MEBH-5/2-D-3-ZSR-FR-C single solenoid valve with MSEB-3-24V DC coil, 5/2-way monostable operation, sub-base mount, and 4500 l/min nominal flow.5/2-WayassemblycoildcFestoIndustrialMEBH-5/2-D-3-ZSR-FR-CMSEB-3-24VPneumaticSinglesolenoidSub-BaseValveWith
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

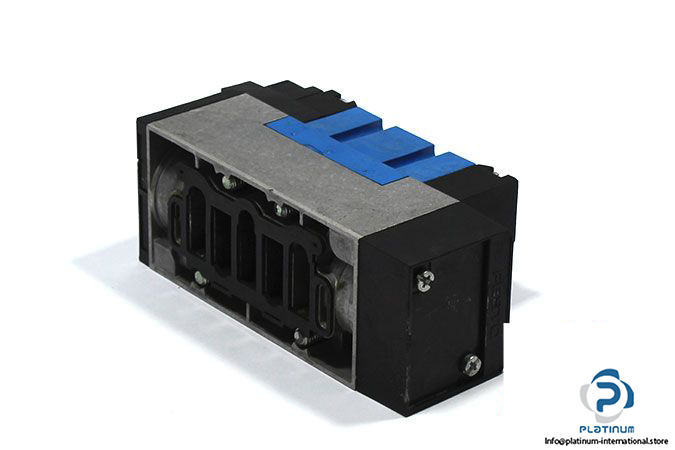

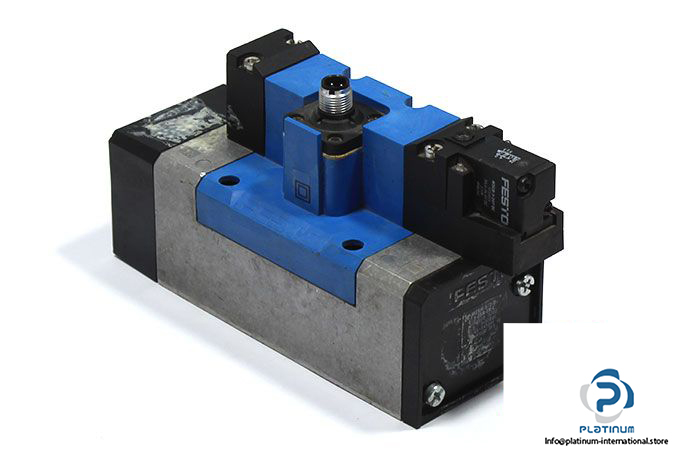

FESTO MEBH-5/2-D-3-ZSR-FR-C SINGLE SOLENOID VALVE WITH COIL
The FESTO MEBH-5/2-D-3-ZSR-FR-C is a high-performance single solenoid valve engineered for reliable operation in pneumatic systems. It features a monostable 5/2-way function, robust die-cast aluminium body, and is designed for sub-base mounting. Supplied with the FESTO MSEB-3-24V DC coil, this assembly ensures precise control and durable operation.
Manufacturer: FESTO
Type: Single Solenoid Valve

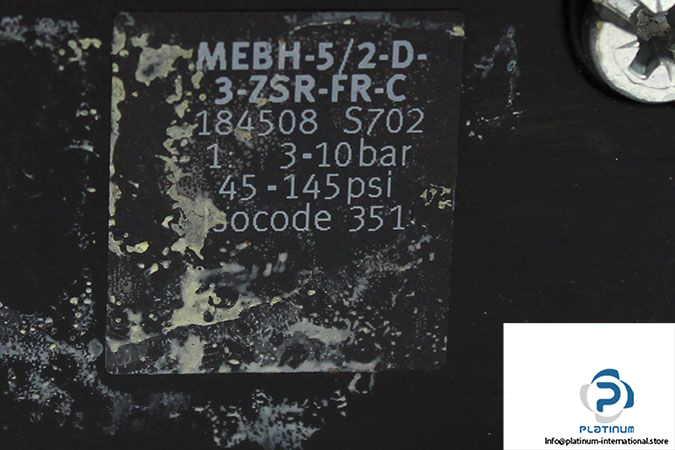

Model: MEBH-5/2-D-3-ZSR-FR-C
Part No.: 184508
Solenoid Coil Technical Information
| Fluid | Air |
| Design Structure | Piston gate valve |
| Valve Function | 5/2-way, monostable |
| Type of Actuation | Electrically |
| Operating Pressure | 3 / 10 bar |
| Nominal Flow Rate | 4500 l/min |
| Pneumatic Connection | Sub-base size 3 |
| Material | Die-cast aluminium |
| Ambient Temperature | -10 / 50 °C |

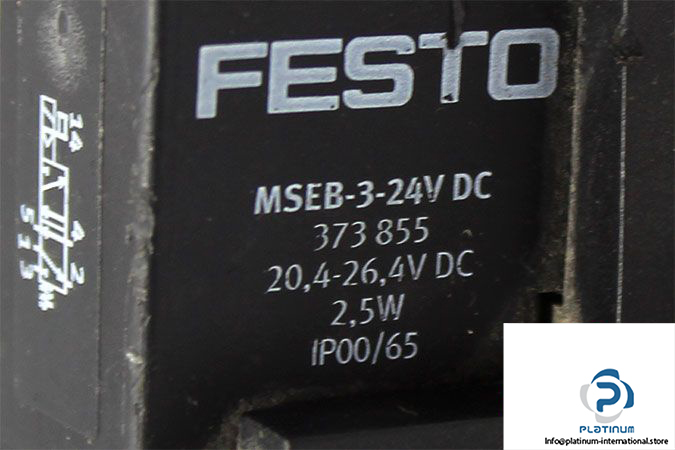

| Attachment | FESTO 373855 SOLENOID COIL |
| Part No. | 373855 |
| Supply Voltage | 20.4 ... 26.4 V DC |
| Power Consumption | 2.5 W |
| Protection Class | IP65 |
