Festo 185883 AIR Solenoid Valve
New
In stock1 unitReady to ship
Air Solenoid Valve
FESTO CPV14 air solenoid valve with piston gate design, 2×2/2-way monostable function, 800 l/min flow rate, and G1/8 connection, supplied with 21 V DC solenoid coil.21V2x2800AirAutomationcoilCPV14dcFestoG1/8Industriall/minMonostablePneumaticPneumaticssolenoidValveWay
Used
In stock
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
FESTO CPV14-M1H-2X2-GLS-1/8 Air Solenoid Valve
The FESTO CPV14-M1H-2X2-GLS-1/8 is a compact air solenoid valve designed for precise pneumatic control in industrial automation systems. It features a piston gate valve design with reliable electrically actuated operation and is supplied with a FESTO solenoid coil for efficient performance.
Manufacturer: FESTO
Type: Air Solenoid Valve
Model: CPV14-M1H-2X2-GLS-1/8
Part No.: 185883
| Fluid | Air |
| Design | Piston Gate Valve |
| Function | 2×2/2-Way, Monostable, Closed |
| Type Of Actuation | Electrically |
| Operating Pressure | -0.9 To 10 Bar |
| Pilot Pressure | 3 To 8 Bar |
| Nominal Flow Rate | 800 l/min |
| Pneumatic Connection | G1/8 |
| Material | Aluminum Die Cast |
| Ambient Temperature | -5 To 50 °C |

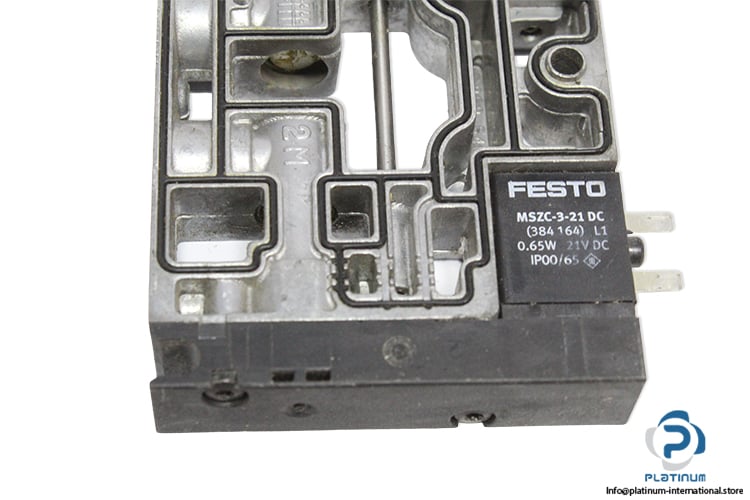

| Attachment | FESTO MSZE-3-21 DC Solenoid Coil |
| Part No. | 384164 |
| Supply Voltage | 21 V DC |
| Power Consumption | 0.65 W |
| Protection Class | IP65 |
