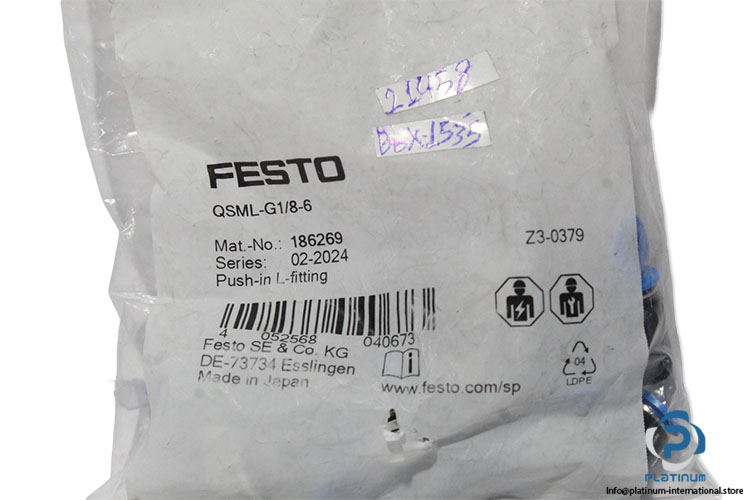

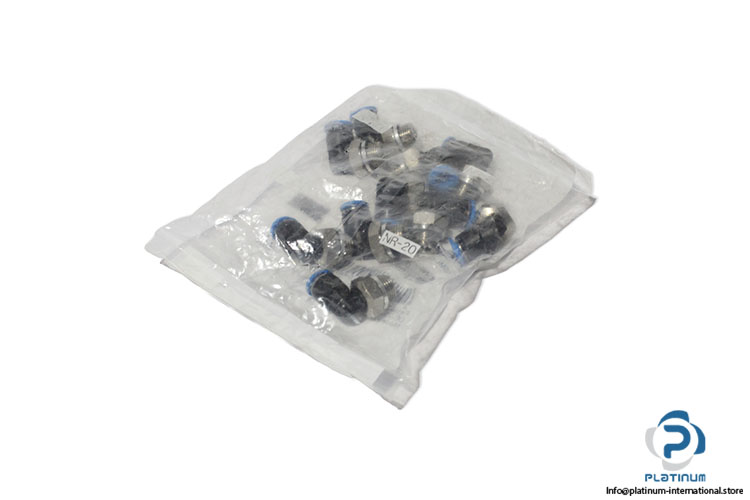

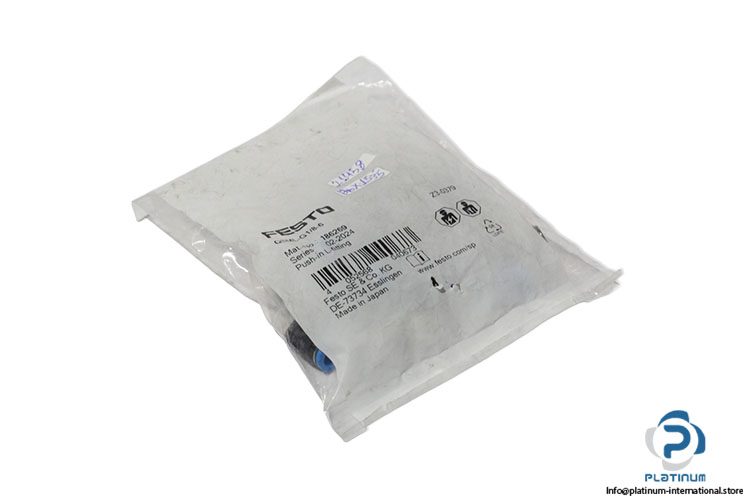

Festo 186269 Push-IN L-Fitting
New
In stock4 unitsReady to ship
Push-In L-Fitting Compact FESTO pneumatic push-in L-fitting designed for secure tubing connections, reliable airflow control, and efficient installation in automation systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 186269 |
| Series | QSML |
| Size | Mini |
| Fluid | Compressed Air / Water (Liquid, Ice-Free) |
| Design | L-Shape Push-Pull Principle |
| Nominal Size | 3.3 mm |
| Operating Pressure | -0.95 ... 6 bar / -0.095 ... 1.4 MPa |
| Water Pressure Max. | 0.6 MPa |
| Tubing Insertion Depth | 11.9 mm |
| Pneumatic Connection, Port 1 | Male Thread G1/8 |
| Pneumatic Connection, Port 2 | For Tubing Outer Diameter Of 6 mm Material: PBT |
| Ambient Temperature | -10 ... 80 °C |
| Items Per Set | 10 |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 1102199 |
| Weight | 0,10 |
