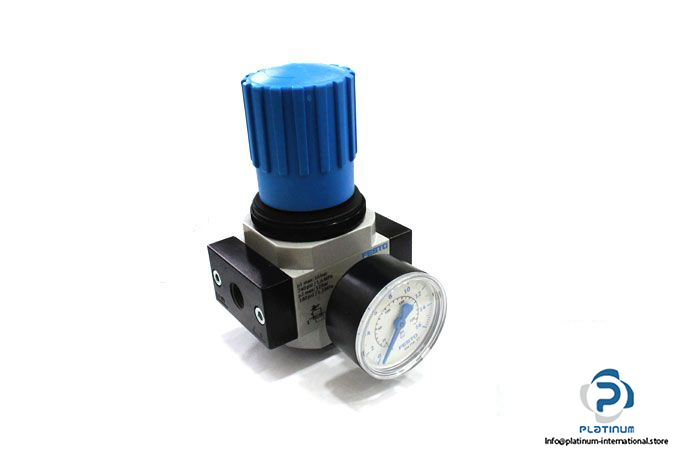

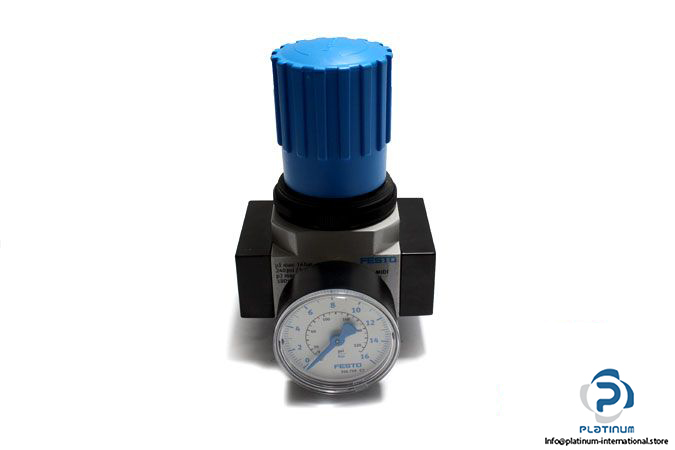

Festo 186451 Pressure Regulator

Manufacturer: FESTO

Type: Pressure Regulator

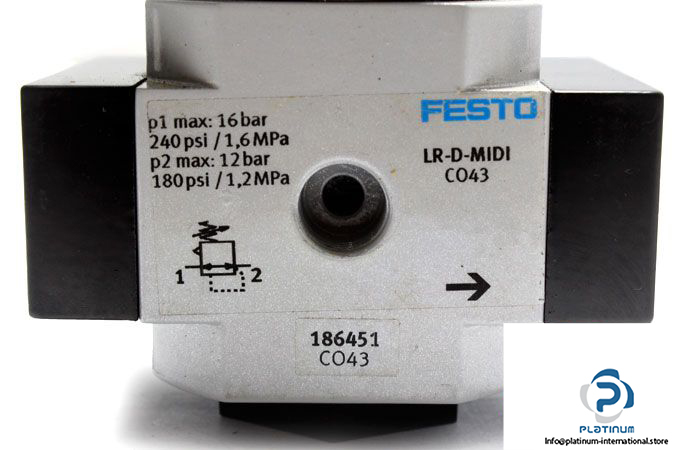

Part No.: 186451

Model: LR-1/4-D-MIDI

Pneumatic Connection: G1/4

Media: Air

Operating Pressure Range: 0 … 16 bar

Pressure regulation Range: 0.5 … 12 bar

Max. Pressure (Ports P1,P2): 16,12 bar

Nominal Flow Rate: 2100 l/min

Housing Material: Die-cast zinc

Actuator Lock: Rotary knob with detent

Temperature Range: -10 … 60°C

Weight: 1.1 kg
