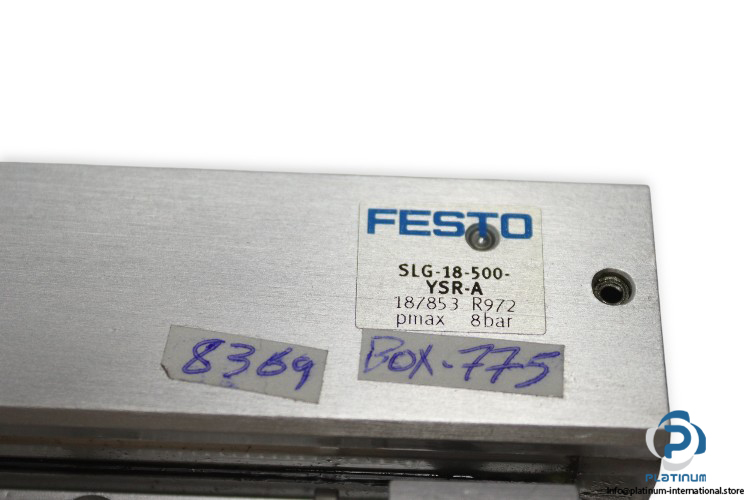

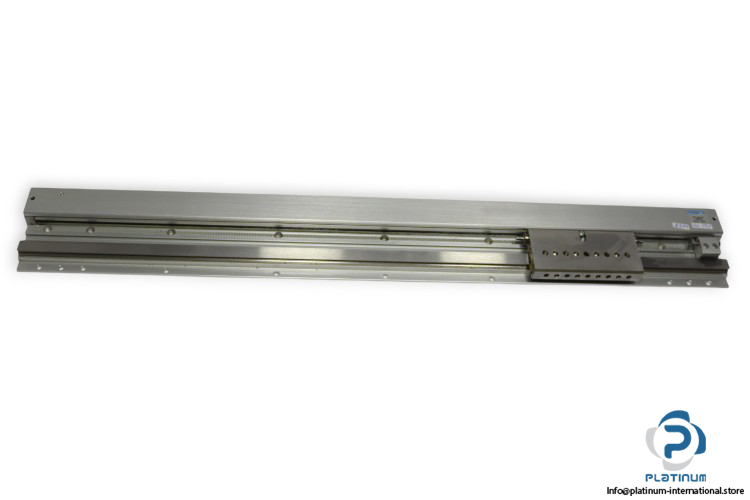

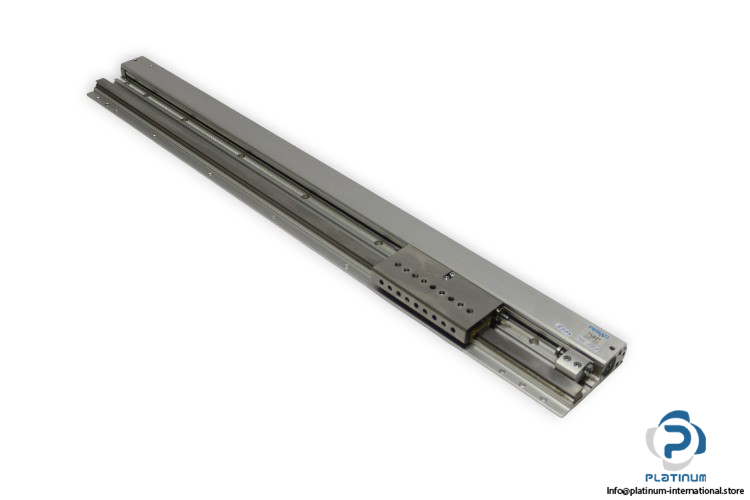

Festo 187853 Linear Actuator

Manufacturer: FESTO
Type: Linear actuator
Model: SLG-18-500-YSR-A
Part No.: 187853

Stroke Length: 500 mm
Piston Diameter: 18 mm
Guide: Recirculating ball bearing guide
Max. number of intermediate positions: 4
Cushioning: Elastic cushioning rings/pads at both ends
Position Sensing: For proximity sensing
Operating pressure: 1 bar … 8 bar
Mode of operation: Double-acting
Operating medium: Compressed air
Pneumatic Connection: 5 mm
Temperature: -10 … 60 °C
Theoretical force at 6 bar, retracting: 153 N
Theoretical force at 6 bar, advancing: 153 N
Housing material: Aluminum, Anodized
