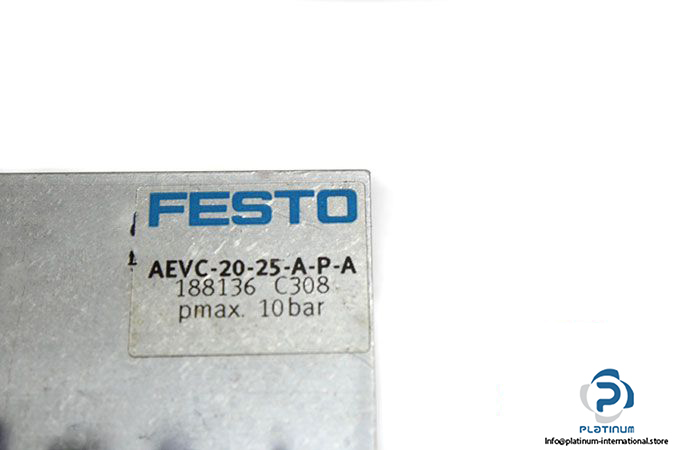

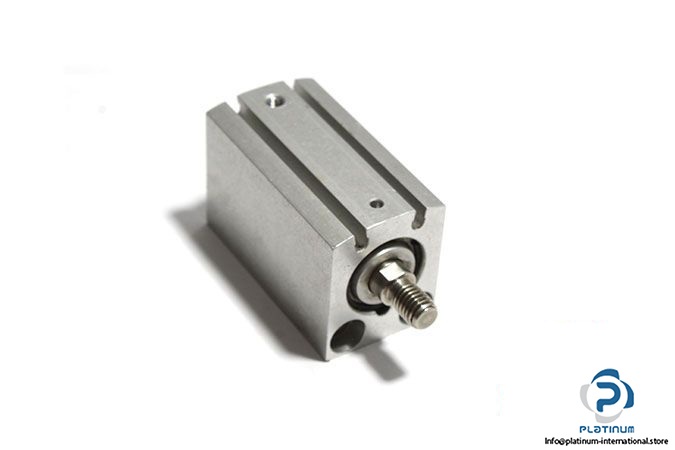

Festo 188136 Short-Stroke Cylinder

Manufacturer: FESTO

Type: Short-stroke cylinder

Model: AEVC-20-25-A-P-A

Part No.: 188136



Stroke Length: 25 mm

Piston Diameter: 20 mm

Spring resetting force with piston rod in retracted position: 10 N

Piston rod thread: Male thread

Max. Operating Pressure: 10 bar

Mode of operation: Single acting

Cushioning: Elastic cushioning rings/pads at both ends

Position Sensing: For proximity sensing

Pneumatic Connection: M5

Temperature: -20 … 80 °C

Weight: 0.2 kg
