Festo 188599 40X160 Round Cylinder
Used
In stock1 unitReady to ship
Round Cylinder
Festo DSEU-40-160-P-A pneumatic round cylinder with 160 mm stroke, 40 mm piston diameter, and G1/8 connection. Double-acting with flexible cushioning and durable high-alloy steel design.188599ActingAlloyconnectionCylinderDoubleDseuDSEU-40-160-P-AFestoG1/8HighIndustrialPneumaticRoundSeriesSteel
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

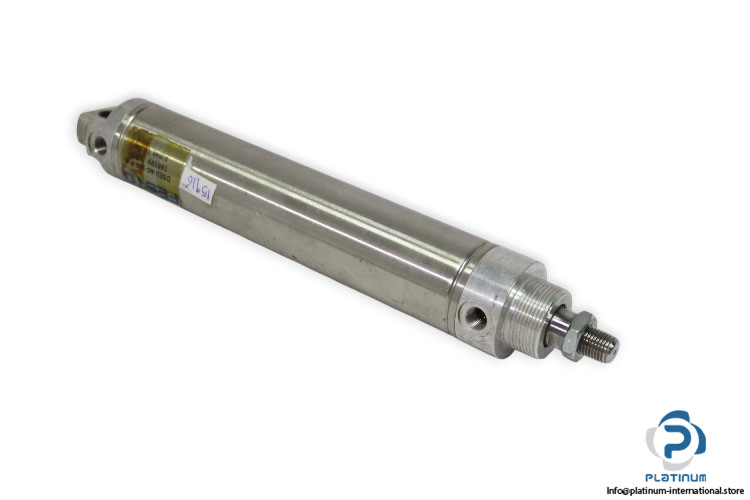

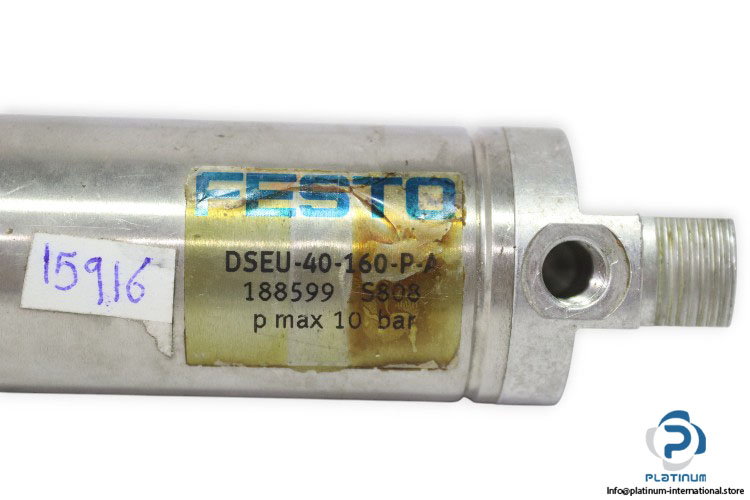

Festo DSEU-40-160-P-A Round Cylinder
The Festo DSEU-40-160-P-A is a robust pneumatic round cylinder from the DSEU / S808 series. Designed for reliable double-acting performance, it is engineered with high-quality materials for industrial automation, ensuring durability and efficiency in demanding applications.
Manufacturer: Festo
Type: Round Cylinder
Model: DSEU-40-160-P-A
Part No.: 188599
Series: DSEU / S808
| Stroke Length | 160 mm |
| Piston Diameter | 40 mm |
| Piston Rod Thread | 12 mm |
| Pneumatic Connection | G1/8 |
| Cushioning | Flexible cushioning rings/plates at both ends |
| Operating Medium | Dried Compressed Air |
| Variants | Single-ended piston rod |
| Max. Operating Pressure | 10 bar |
| Shape | Circular |
| Piston Action | Double-acting |
| Ambient Temperature | 0 to 80 °C |
| Materials “ Cover | Wrought Aluminum Alloy |
| Materials “ Seals | TPE-U(PU) |
| Materials “ Housing | High Alloy Steel, Non-corrosive |
| Materials “ Piston Rod | High Alloy Steel |
