Festo 191340 Double Solenoid Valve
Used
In stock2 unitsReady to ship
DOUBLE SOLENOID VALVE
FESTO MN2H-2X3G-D-01-ZSR valve with MSEB-3-24V DC coil ensures reliable 2×3/2 pneumatic control, electric actuation, and IP65-rated operation.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

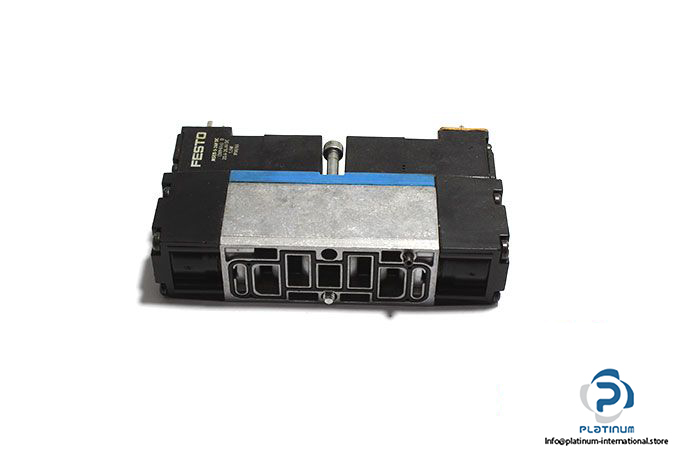

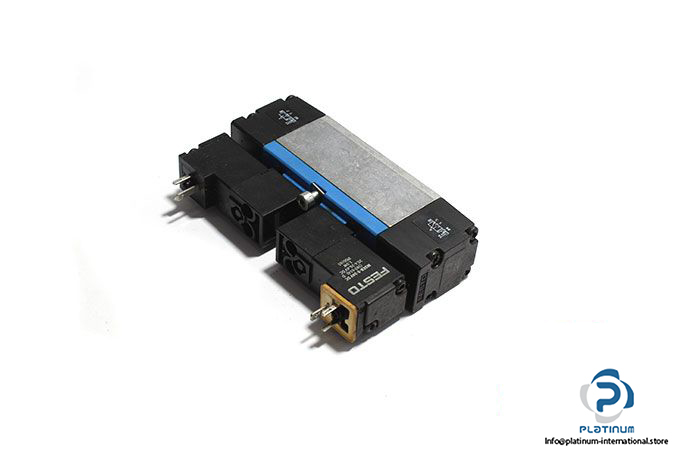

FESTO MN2H-2X3G-D-01-ZSR DOUBLE SOLENOID VALVE WITH COIL
The FESTO MN2H-2X3G-D-01-ZSR is a high-performance double solenoid valve engineered for reliable pneumatic control. Featuring a piston slide design and sub-base connection, it is ideal for industrial automation. Equipped with the FESTO MSEB-3-24V DC coil, this setup offers efficient and consistent actuation in demanding environments.
Manufacturer: FESTO
Type: Double Solenoid Valve

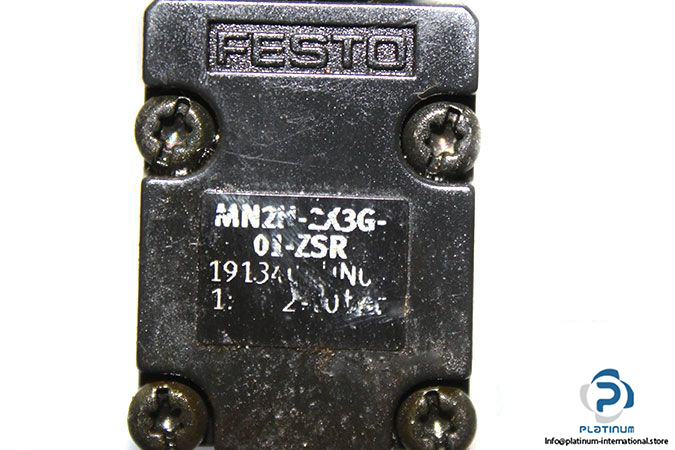

Model: MN2H-2X3G-D-01-ZSR
Part No.: 191340
Coil Technical Information
| Fluid | Air |
| Design Structure | Piston slide |
| Valve Function | 2x3/2 closed, single solenoid |
| Type of Actuation | Electrically |
| Operating Pressure | 2 / 10 bar |
| Nominal Flow Rate | 950 l/min |
| Pneumatic Connection | Sub-base |
| Material | Aluminium die cast |
| Ambient Temperature | -10 / 50 °C |

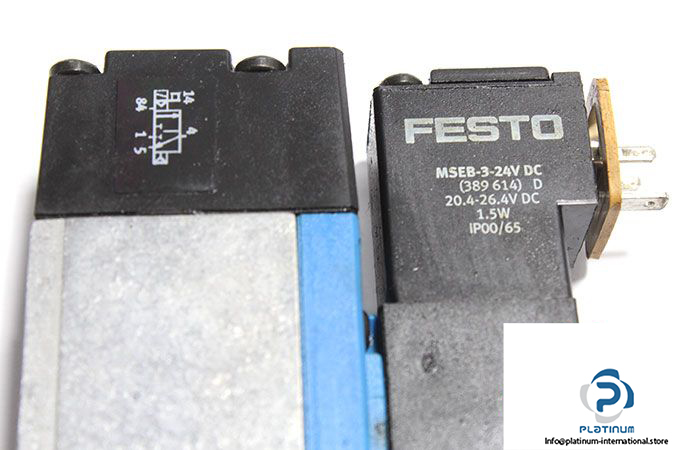

| Attached Solenoid Coil | FESTO MSEB-3-24V DC |
| Part No. | 389614 |
| Supply Voltage | 20.4 ... 26.4 V DC |
| Power Consumption | 1.5 W |
| Protection Class | IP65 |
