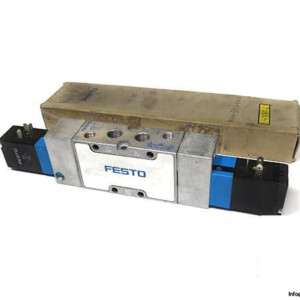

Festo 19138 Double Solenoid Valve
Used
In stock4 unitsReady to ship
50,00$
DOUBLE SOLENOID VALVE
FESTO MVH-5/3G-1/4-B double solenoid valve with MSV-3 coil offers 5/3 closed function, high flow rate, and IP65 protection for pneumatic systems.5/3AirAluminumBodyClosedcoilconnectionDoubleFestoG1/4IndustrialMSV-3MVH-5/3G-1/4-BPneumaticsolenoidValve
New
Available on request 70,00$
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

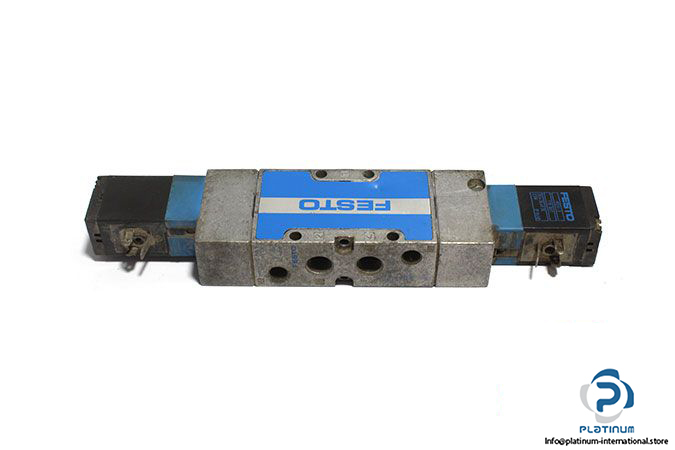

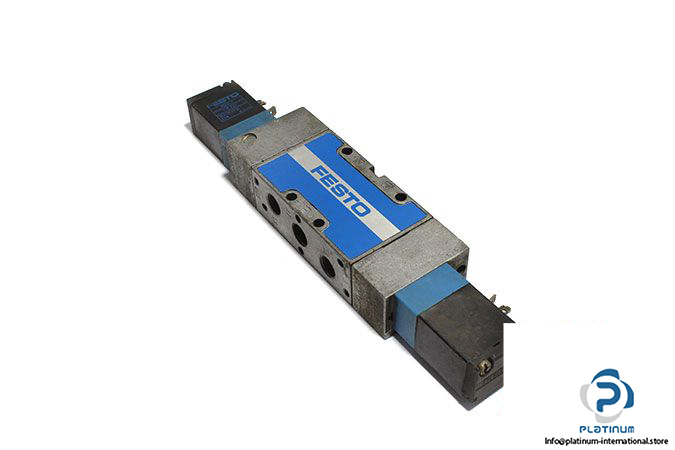

FESTO MVH-5/3G-1/4-B DOUBLE SOLENOID VALVE WITH MSV-3 COIL
The FESTO MVH-5/3G-1/4-B is a high-performance double solenoid valve designed for pneumatic control systems. Featuring a 5/3 closed function and durable aluminum die-cast body, it delivers reliable operation and fast switching performance. This valve comes equipped with the FESTO MSV-3 solenoid coil for optimal electrical control.
Manufacturer: FESTO
Type: Double Solenoid Valve

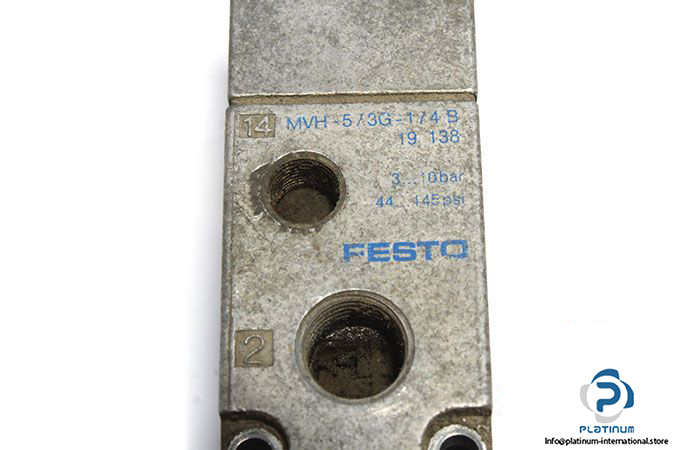

Model: MVH-5/3G-1/4-B
Part No.: 19138
Coil Technical Information
| Fluid | Air |
| Design | Piston gate valve |

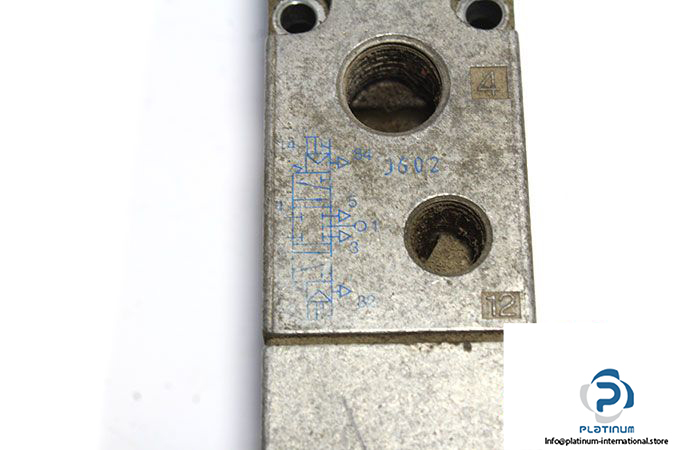

| Function | 5/3 closed |
| Type of Actuation | Electrically |
| Operating Pressure | 3 / 10 bar |
| Nominal Flow Rate | 1600 l/min |
| Pneumatic Connection | G1/4 |
| Material | Aluminum die cast |
| Ambient Temperature | -5 / 50 °C |

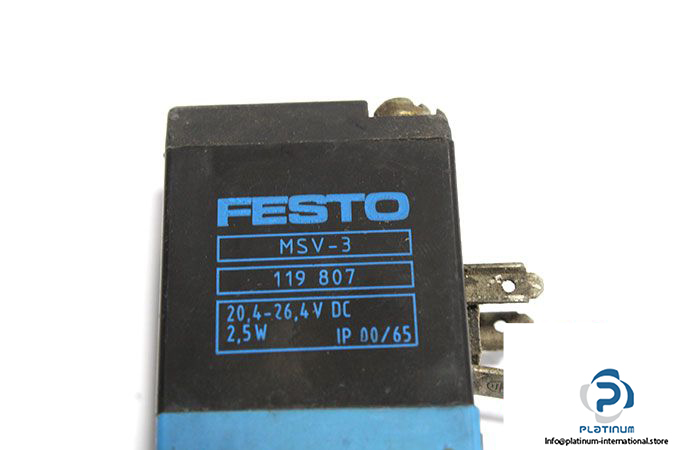

| Solenoid Coil Attachment | FESTO MSV-3 |
| Part No. | 119807 |
| Supply Voltage | 20.4 ... 26.4 V DC |
| Power Consumption | 2.5 W |
| Protection Class | IP65 |
