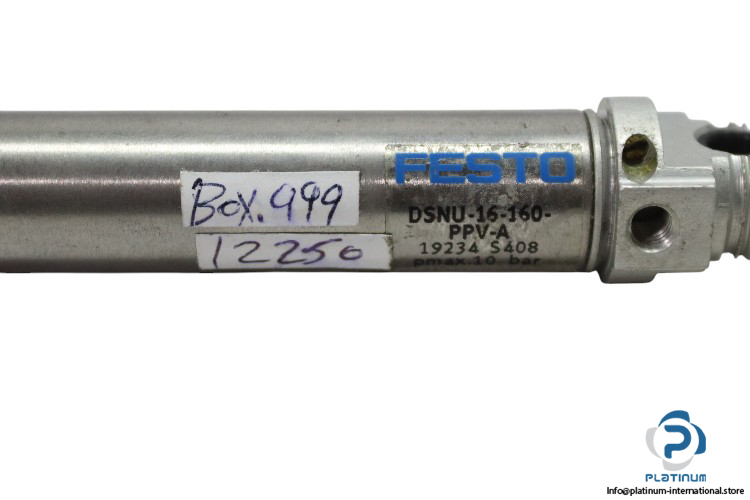

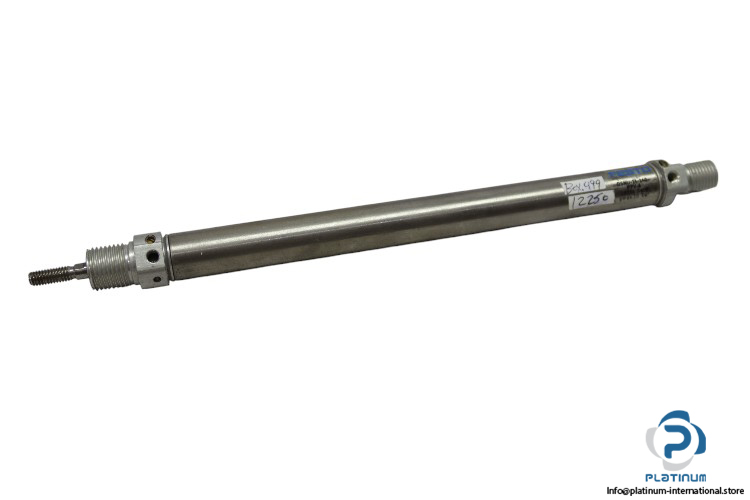

Festo DSNU-16-160-PPV-A ISO Cylinder “ Part No. 19234
The Festo DSNU-16-160-PPV-A is a reliable ISO-compliant pneumatic cylinder designed for high-performance motion applications. It offers a 160 mm stroke, durable construction, and adjustable pneumatic cushioning for controlled, double-acting operation under various industrial conditions.
Manufacturer: Festo
Type: ISO Cylinder
Model: DSNU-16-160-PPV-A
Part No.: 19234
| Stroke | 160 mm |
| Piston Diameter | 16 mm |
| Cushioning | Pneumatic Cushioning, Adjustable at Both Ends |
| Port Size | 5 mm |
| Piston-Rod End | Male Thread |
| Mode of Operation | Double-Acting |
| Operating Medium | Compressed Air |
| Maximum Pressure | 10 bar |
| Ambient Temperature | -20 to 80 °C |
| Cover Material | Wrought Aluminum Alloy |
| Material “ Seals | NBR |
| Material “ Piston Rod | High-Alloy Stainless Steel |
| Material “ Cylinder Barrel | High-Alloy Stainless Steel |
