Festo 19235 ISO Cylinder
Used
Available on request
Festo DSNU-16-200-PPV-A ISO Cylinder “ 16 mm diameter, 200 mm stroke, double-acting cylinder with stainless steel piston rod, aluminum cover, and 10 bar pressure capacity.
1619235200ActingActuatorAirCircularCompressedCylinderDoubleDSNU-16-200-PPV-AFestoIndustrialISOmmNBRPistonPneumaticRODSealsstainlessStanSteelStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

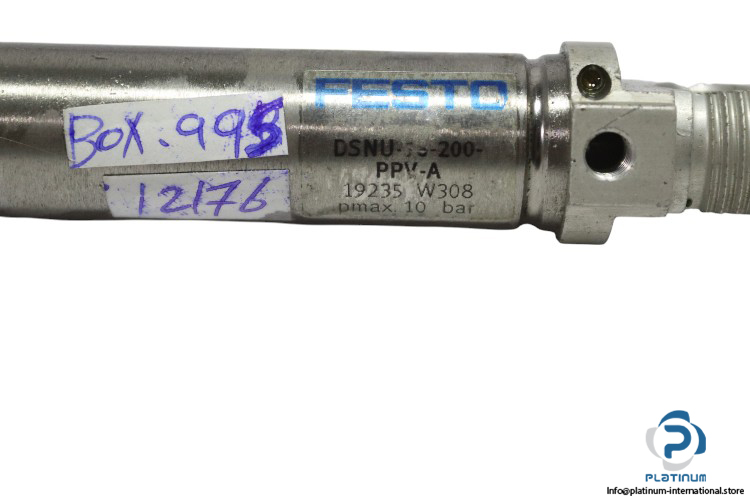

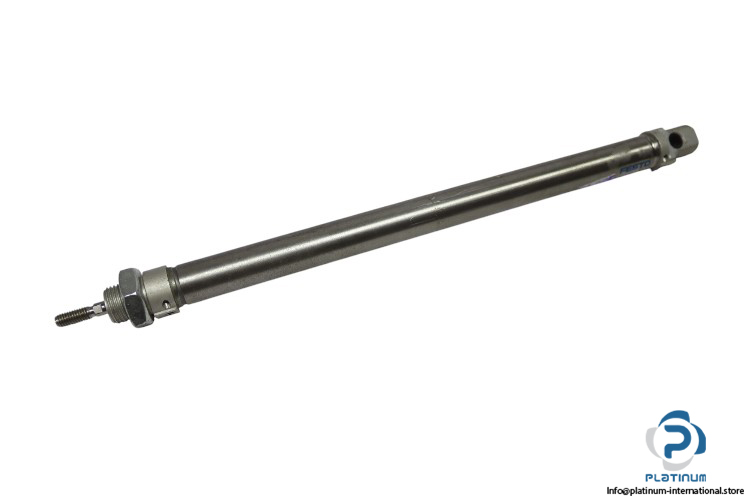

Festo DSNU-16-200-PPV-A Circular ISO Cylinder
The Festo DSNU-16-200-PPV-A is a high-performance circular ISO pneumatic cylinder engineered for consistent and reliable motion in automated systems. With a long stroke and double-acting operation, this cylinder is ideal for precision applications in industrial environments.
Manufacturer: Festo
Type: Circular ISO Cylinder
Model: DSNU-16-200-PPV-A
Part No.: 19235
| Piston Diameter | 16 mm |
| Stroke | 200 mm |
| Pneumatic Connection | 5 mm |
| Operating Medium | Compressed Air |
| Mode of Operation | Double Acting |
| Maximum Pressure | 10 bar |
| Piston Rod End | Male |
| Ambient Temperature | -20 to 80 °C |
| Cushioning Length | 12 mm |
| Material “ Piston Rod | High-Alloy Stainless Steel |
| Material “ Cover | Wrought Aluminum Alloy |
| Material “ Seals | NBR |
| Shape | Circular |
| Rod Direction | One Side |
