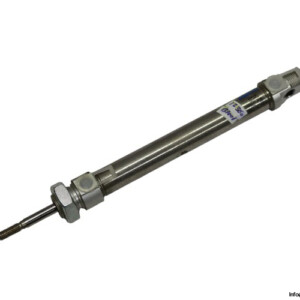

Festo 19240 ISO Cylinder
New
In stock1 unitReady to ship
ISO Cylinder
Festo DSNU-20-125-PPV-A is a double-acting ISO pneumatic cylinder with 20 mm piston and 125 mm stroke. Designed for compressed air systems, it features G1/8 connection, stainless steel barrel, and adjustable cushioning for precise control.12520ActingActuatorAdjustableAirAutomationCompressedconnectionCushioningCylinderDoubleDSNU-20-125-PPV-AFestoG1/8IndustrialISOmmPistonPneumaticstainlessSteelStroke
Used
In stock
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

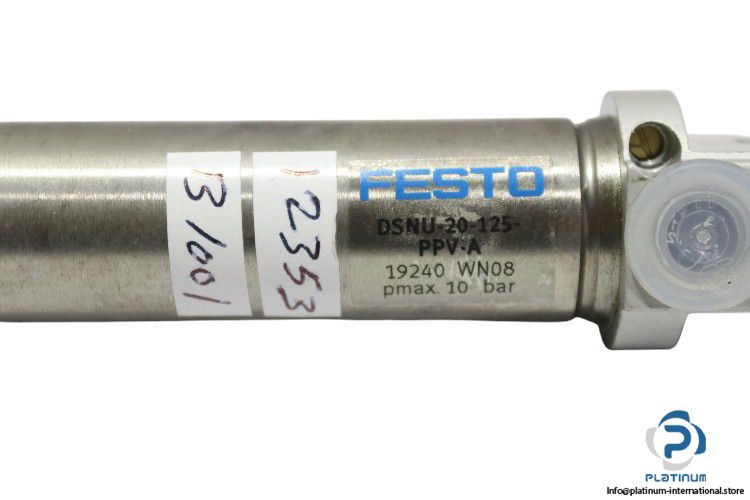

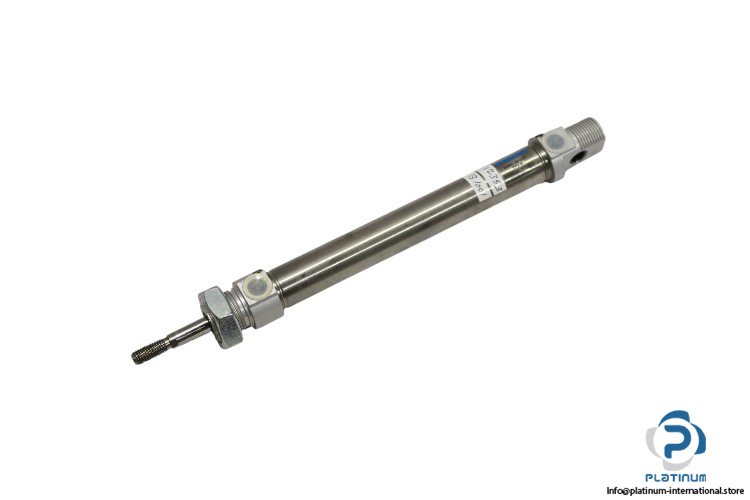

Festo DSNU-20-125-PPV-A ISO Cylinder “ Part No. 19240
The Festo DSNU-20-125-PPV-A is a precision-engineered ISO pneumatic cylinder designed for industrial automation systems. With a 20 mm piston diameter and a 125 mm stroke, this double-acting cylinder delivers smooth and accurate motion with adjustable cushioning at both ends.
Manufacturer: Festo
Type: ISO Cylinder
Model: DSNU-20-125-PPV-A
Part No.: 19240
| Media | Compressed Air |
| Piston Diameter | 20 mm |
| Stroke | 125 mm |
| Cushioning | Pneumatic Cushioning, Adjustable at Both Ends |
| Pneumatic Connection | G1/8 |
| Operation Mode | Double Acting |
| Piston Rod Thread | Male |
| Shape | Circular |
| Operating Pressure | Max. 10 bar |
| Ambient Temperature | -20 to 80 °C |
| Material “ Cover | Wrought Aluminum Alloy |
| Material “ Seals | NBR |
| Material “ Piston Rod | High-Alloy Stainless Steel |
| Material “ Cylinder Barrel | High-Alloy Stainless Steel |
