Festo 19245 ISO Cylinder
Used
In stock1 unitReady to ship
ISO Cylinder
The Festo DSNU-25-40-PPV-A is a double-acting ISO cylinder with 25 mm bore and 40 mm stroke. Built from corrosion-resistant stainless steel and equipped with adjustable cushioning, it ensures smooth operation and long-lasting reliability in pneumatic systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

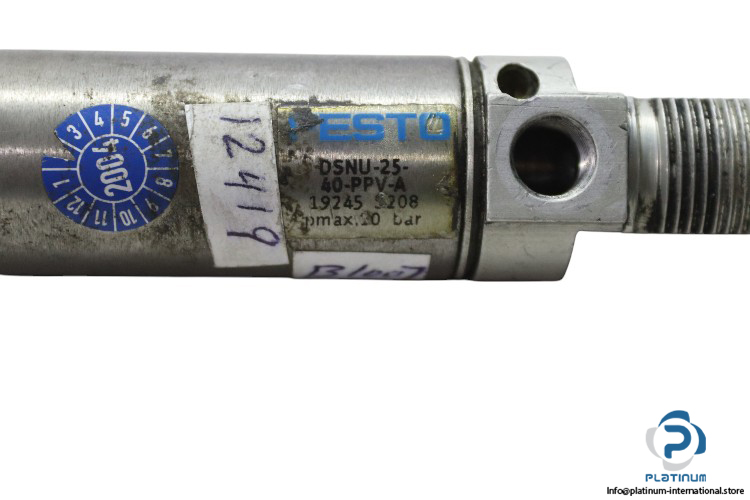

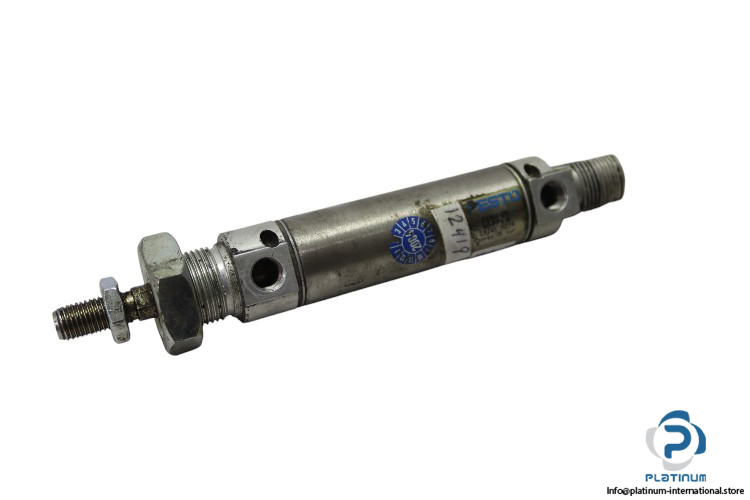

Festo DSNU-25-40-PPV-A “ ISO Cylinder
The Festo DSNU-25-40-PPV-A is a robust ISO-standard pneumatic cylinder designed for efficient and precise linear motion in automated systems. With adjustable pneumatic cushioning and durable stainless steel construction, this double-acting cylinder ensures reliable performance in high-demand industrial environments.
Manufacturer: Festo
Type: ISO Cylinder
Model: DSNU-25-40-PPV-A
Part No.: 19245
| Bore Diameter | 25 mm |
| Stroke | 40 mm |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Operating Medium | Compressed air |
| Pneumatic Connection | G1/8 |
| Variants | Piston rod at one end |
| Mode of Operation | Double-acting |
| Shape | Circular |
| Max. Operating Pressure | 10 bar |
| Ambient Temperature | -20 to 80 °C |
| Material Cover | Wrought aluminum alloy |
| Material Seals | NBR |
| Material Piston Rod | High-alloy stainless steel |
| Material Cylinder Barrel | High-alloy stainless steel |
