Festo 19268 ISO Cylinder
Used
In stock1 unitReady to ship
Festo ESNU-20-50-P-A ISO Cylinder “ Single-acting pneumatic cylinder with 50 mm stroke and 20 mm piston. Features G1/8 connection, elastic cushioning, and stainless steel construction.
20ActingActuatorAirAutomationCompactCylinderESNU-20-50-P-AFestoG1/8ISOmmPistonPneumaticSinglestainlessSteel
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

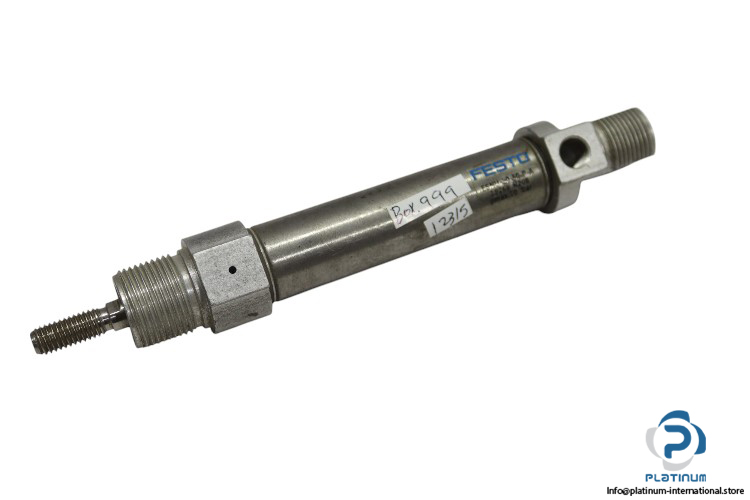

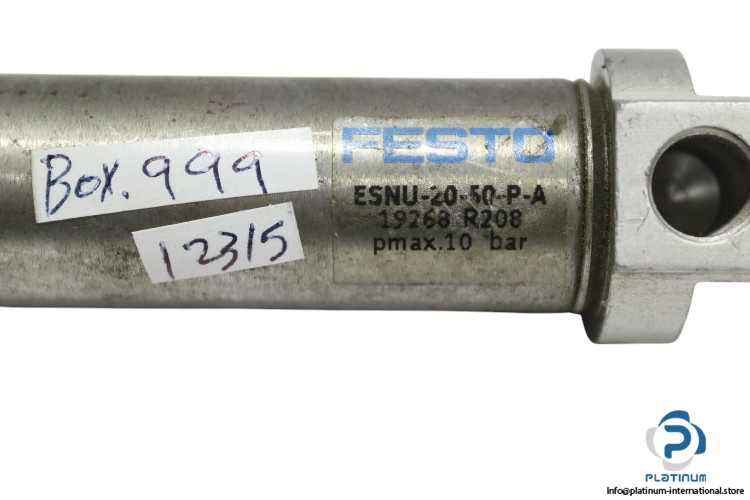

Festo ESNU-20-50-P-A ISO Cylinder “ Part No. 19268
The Festo ESNU-20-50-P-A is a compact ISO-standard pneumatic cylinder designed for reliable single-acting operation in automation systems. Featuring elastic cushioning at both ends and built from high-alloy stainless steel, this unit delivers efficient performance and durability in a range of industrial environments.
Manufacturer: Festo
Type: ISO Cylinder
Model: ESNU-20-50-P-A
Part No.: 19268
| Stroke | 50 mm |
| Piston Diameter | 20 mm |
| Connection | G1/8 |
| Cushioning | Elastic Cushioning Rings/Plates at Both Ends |
| Piston-Rod End | Male Thread |
| Mode of Operation | Pushing Single-Acting |
| Operating Medium | Compressed Air |
| Ambient Temperature | -20 to 80 °C |
| Pressure | 10 bar max. |
| Material “ Seals | NBR |
| Material “ Piston Rod | High-Alloy Stainless Steel |
| Material “ Cylinder Barrel | High-Alloy Stainless Steel |
