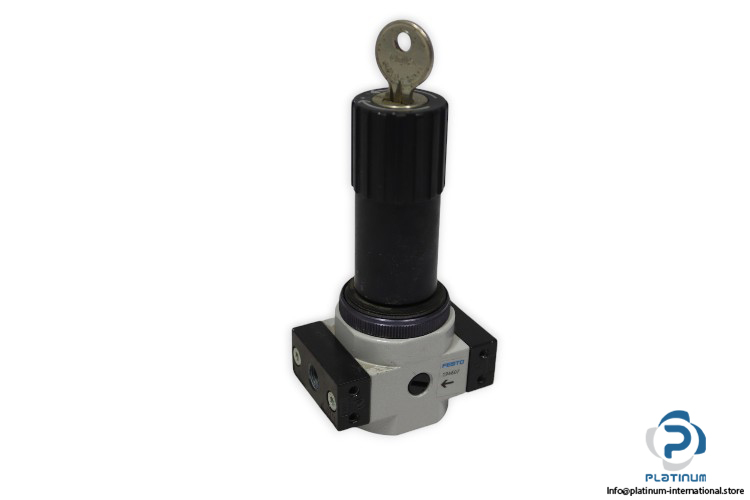

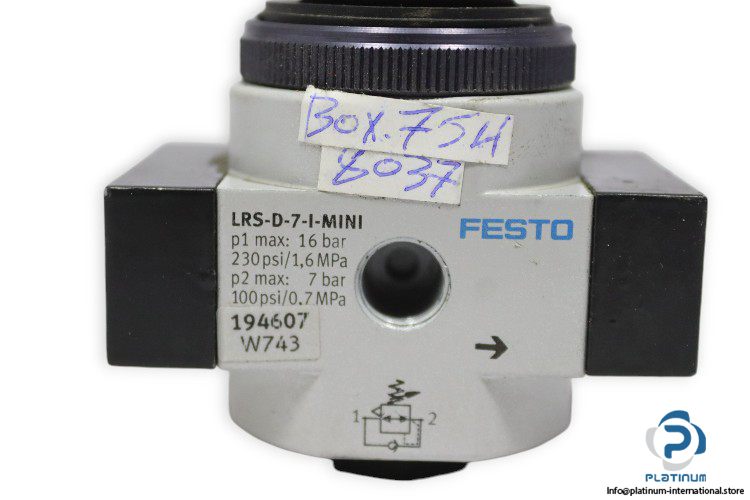

Festo 194607 Pressure Regulator

Manufacturer: FESTO
Type: Pressure Regulator
Model: LRS-1/8-D-7-I-MINI
Part No.: 194607

Size: Mini
Actuator lock: Rotary knob with integrated lock
Structural design: Directly controlled diaphragm regulator
Pressure gauge: with pressure gauge
Operating pressure: 0.1 MPa … 1.6 MPa
Pressure regulation range: 0.5 bar … 7 bar
Max. pressure hysteresis: 0.02 MPa
Max. pressure hysteresis: 2.9 psi
Standard nominal flow rate: 1000 l/min
Operating medium: Compressed air
Ambient temperature: –10 °C … 60 °C
Pneumatic connection: G1/8
Housing material: Die-cast zinc
