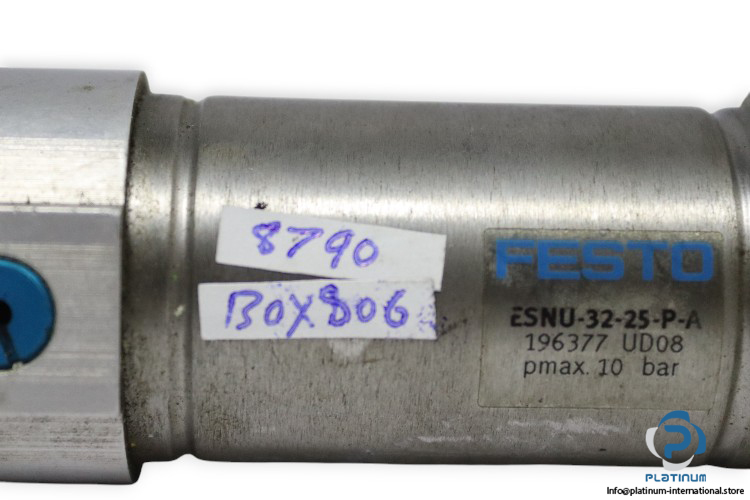

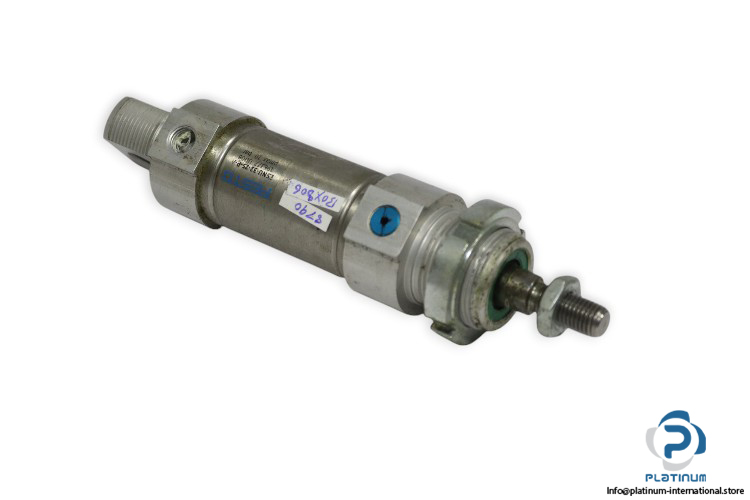

Festo 196377 Round Cylinder

Manufacturer: FESTO
Type: Round cylinder
Model: ESNU-32-25-P-A
Part No.: 196377

Stroke: 25 mm
Piston diameter: 32 mm
Operating medium: Compressed air
Piston rod thread: M10x1.25
Cushioning: Elastic cushioning rings/pads at both ends
Mode of operation: Pushing, Single-acting
Position sensing: For proximity sensor
Operating pressure: 1.2 bar … 10 bar
Ambient temperature: -20 °C … 80 °C
Pneumatic connection: G1/8
Cover material: Wrought aluminum alloy
Piston rod material: High-alloy steel
Spring resetting force with piston rod in retracted position: 30 N
