Festo 19750 Single Solenoid Valve
Used
In stock2 unitsReady to ship
70,00$
SINGLE SOLENOID VALVE
FESTO MVH-5-1/8-L-S-B valve with MSV-3 coil features a monostable 5/2-way function, high flow rate, and reliable electrical actuation for air control systems.5/2-WayAirAluminiumcoilControldie-castElectricalFestoIP65MSV-3MVH-5-1/8-L-S-BPneumaticProtectionSinglesolenoidValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

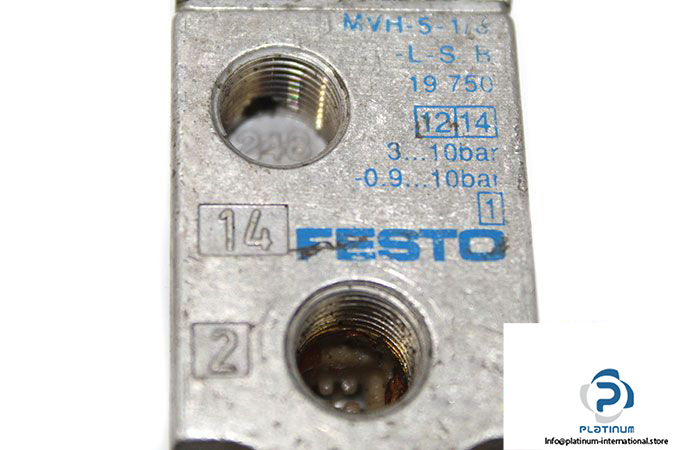

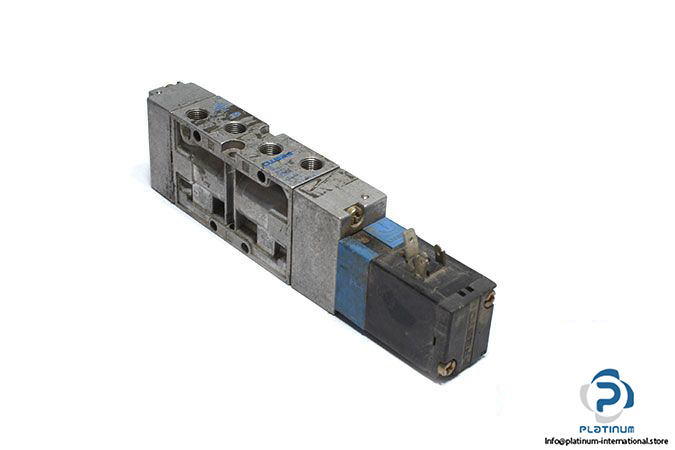

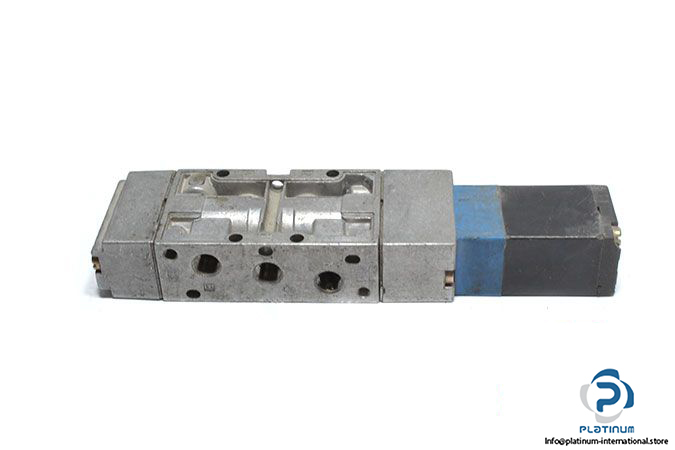

FESTO MVH-5-1/8-L-S-B SINGLE SOLENOID VALVE WITH MSV-3 COIL
The FESTO MVH-5-1/8-L-S-B is a robust and high-performance single solenoid valve engineered for industrial air control applications. With a piston gate design and monostable 5/2-way functionality, it offers fast response and long service life. The unit is paired with the FESTO MSV-3 solenoid coil to ensure efficient electrical actuation and reliable operation in demanding environments.
Manufacturer: FESTO
Type: Single Solenoid Valve
Model: MVH-5-1/8-L-S-B
Part No.: 19750
Solenoid Coil Technical Information
| Fluid | Air |
| Design | Piston gate valve |
| Function | 5/2-way, monostable |
| Type of Actuation | Electrically |
| Operating Pressure | 0.9 / 10 bar |
| Pilot Pressure | 3 / 10 bar |
| Nominal Flow Rate | 1000 l/min |
| Pneumatic Connection | G1/8 |
| Material | Die-cast aluminium |
| Ambient Temperature | -5 / 50 °C |

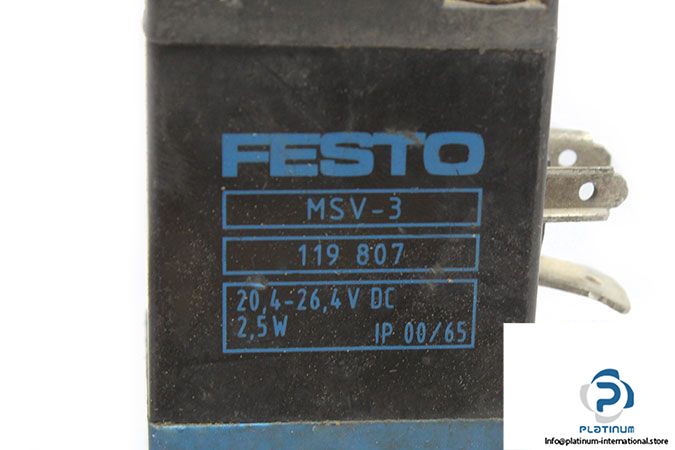

| Attachment | FESTO MSV-3 SOLENOID COIL |
| Part No. | 119807 |
| Supply Voltage | 20.4 ... 26.4 V DC |
| Power Consumption | 2.5 W |
| Protection Class | IP65 |
