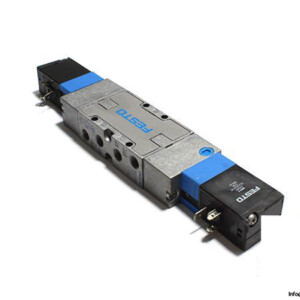

Festo 30477 Double Solenoid Valve

FESTO MVH-5/3G-1/8-B DOUBLE SOLENOID VALVE WITH MSV-3 COIL

The FESTO MVH-5/3G-1/8-B is a high-performance double solenoid valve engineered for precise air control in automation systems. Designed with a robust piston gate mechanism, this 5/3 closed-center valve ensures efficient flow regulation under varying pressures and environments.

Manufacturer: FESTO
Type: Double Solenoid Valve
Model: MVH-5/3G-1/8-B
Part No.: 30477

Valve Technical Information

• Fluid: Air
• Design: Piston gate valve
• Function: 5/3 closed
• Type of Actuation: Electrically
• Operating Pressure: 3 … 10 bar
• Nominal Flow Rate: 1000 l/min
• Pneumatic Connection: G1/8
• Material: Die-cast aluminium
• Ambient Temperature: -5 / 50 °C

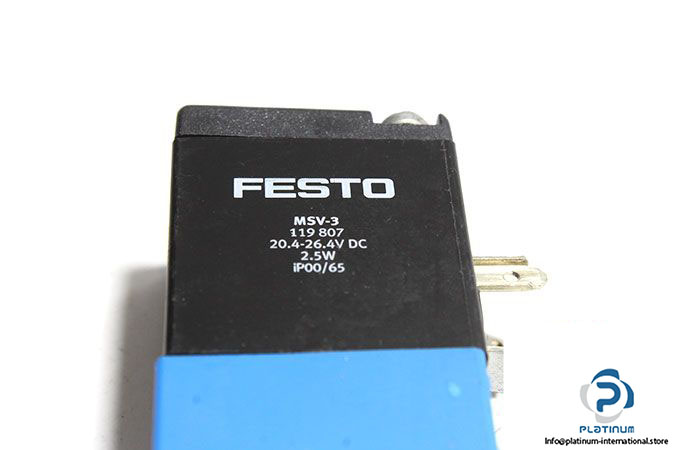

Attachment: FESTO MSV-3 SOLENOID COIL

Manufacturer: FESTO
Type: Solenoid Coil
Model: MSV-3
Part No.: 119807

Coil Technical Information

• Supply Voltage: 20.4 … 26.4 V DC
• Power Consumption: 2.5 W
• Protection Class: IP00 / IP65
