Festo 34718 ISO Cylinder
Used
In stock2 unitsReady to ship
ISO Cylinder
FESTO DSNU-20-320-P-A ISO Cylinder is a high-quality double-acting pneumatic cylinder featuring a 20 mm cylinder diameter, 320 mm stroke, and M8 piston rod thread. Built with high-alloy stainless steel, it offers durability and precise motion control for industrial applications.20320ActingAutomationCushioningCylinderdiameterDoubleElasticG1/8High-AlloyIndustrialM8mmPistonPneumaticPortRODSizestainlessSteelStrokeThread
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

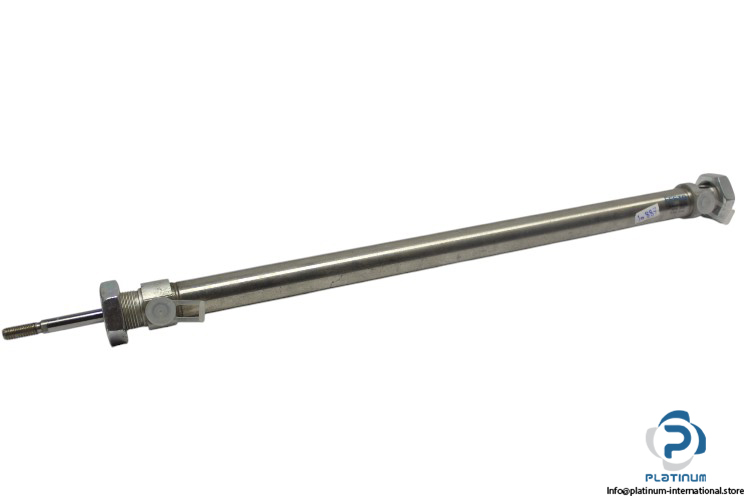

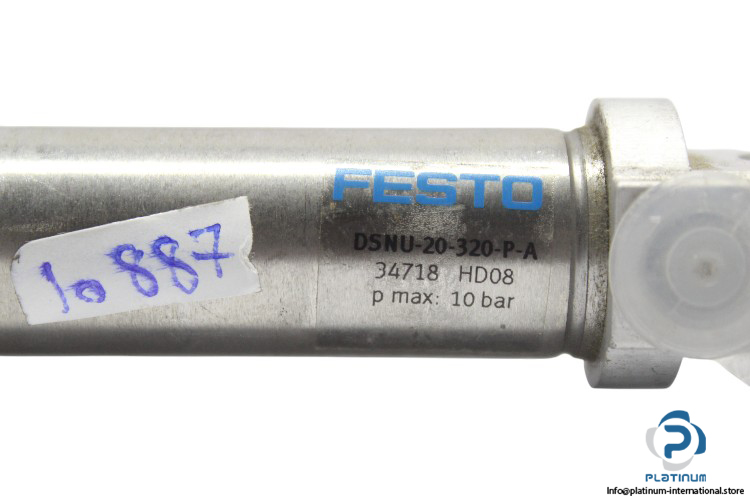

FESTO DSNU-20-320-P-A ISO Cylinder
The FESTO DSNU-20-320-P-A ISO Cylinder is a robust and efficient pneumatic cylinder designed for industrial automation and motion control applications. Built with high-alloy stainless steel, this double-acting cylinder offers excellent durability, corrosion resistance, and smooth operation in challenging environments. Its elastic cushioning rings at both ends ensure precise and reliable performance, while compatibility with proximity sensors enhances position sensing capabilities.
- Manufacturer: FESTO
- Type: ISO Cylinder
- Model: DSNU-20-320-P-A
- Part No.: 34718
Technical Specifications
- Cylinder Diameter: 20 mm
- Stroke: 320 mm
- Piston Rod Thread: M8
- Cushioning: Elastic cushioning rings/pads at both ends
- Position Sensing: For proximity sensor
- Variants: Piston rod at one end
- Max Pressure: 10 bar
- Ambient Temperature: -20 °C to 80 °C
- Mode of Operation: Double acting
- Material of Cylinder Barrel: High-alloy stainless steel
- Port Size: G1/8
