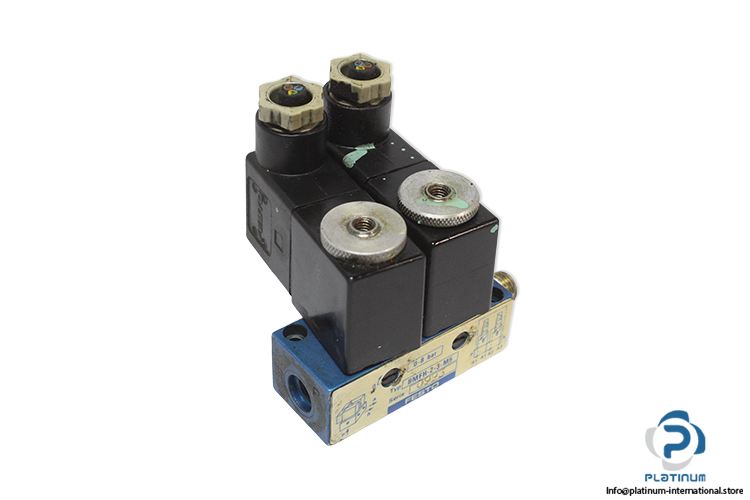

Festo 4522 AIR Solenoid Valve With Coil
Used
In stock2 unitsReady to ship
Air Solenoid Valve
FESTO BMFH-2-3-M5 air solenoid valve with 2×3/2 monostable function, 24 VDC solenoid coil, compact design, and reliable pneumatic performance.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

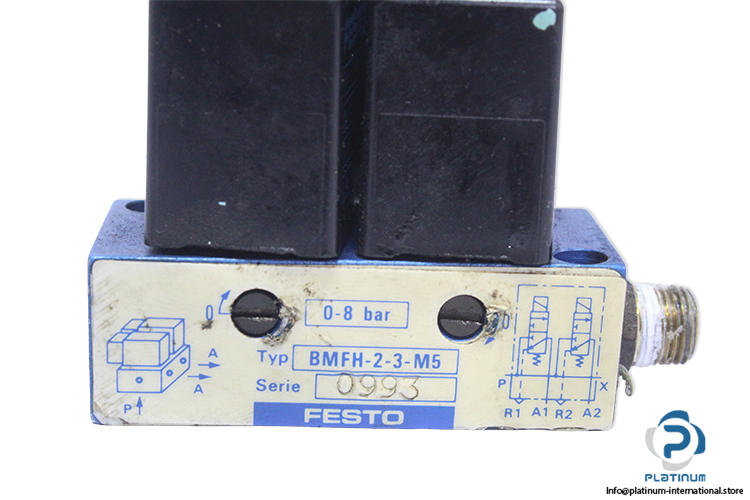

:contentReference[oaicite:0]{index=0} BMFH-2-3-M5 Air Solenoid Valve
The FESTO BMFH-2-3-M5 is a compact air solenoid valve designed for precise and reliable pneumatic control. With a poppet valve design and return spring, it delivers stable performance in space-constrained industrial pneumatic systems.
Manufacturer: FESTO
Type: Air Solenoid Valve
Model: BMFH-2-3-M5
Part No.: 4522
Solenoid Coil Information
| Valve Function | 2x3/2, Closed, Monostable |
| Actuation Type | Electrical |
| Normal Nominal Flow Rate (DIN 1343) | 50 l/min |
| Operating Pressure | 0 bar / 8 bar |
| Structural Design | Poppet Valve With Return Spring |
| Reset Method | Mechanical Spring |
| Degree Of Protection | IP65 |
| Nominal Width | 1.3 mm |
| Sealing Principle | Soft |
| Max. No. Of Valve Positions | 2 |
| Type Of Control | Direct |
| Operating Medium | Compressed Air |
| Pneumatic Working Port | M5 |
| Port Size | G1/8 |
| Pneumatic Connection 2 | M5 |
| Pneumatic Connection 3 | M5 |
| Ambient Temperature | -5 °C / 40 °C |
| Housing Material | Aluminum |

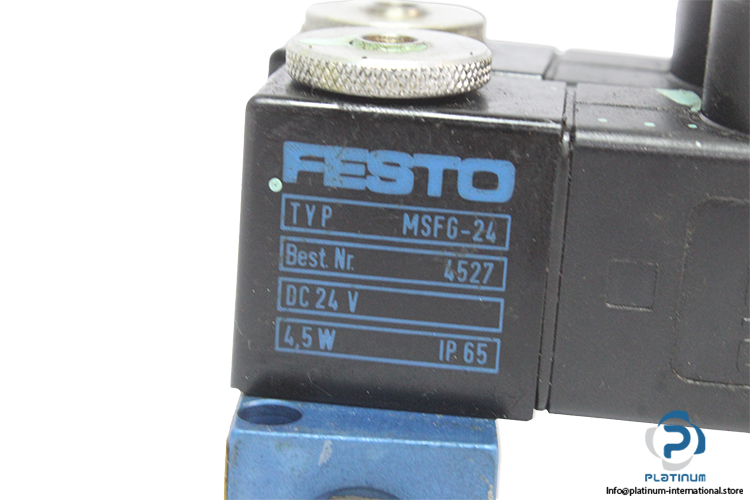

| Attached Coil | FESTO 4527 |
| Coil Model | MSFG-24 |
| Voltage | 24 VDC |
| Power Consumption | 4.5 W |
