Festo 4522 Double Solenoid Valve
Used
In stock5 unitsReady to ship
Air Solenoid Valve
FESTO BMFH-2-3-M5 air solenoid valve with 2×3/2 monostable function, IP65 protection, and compact design for pneumatic control applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

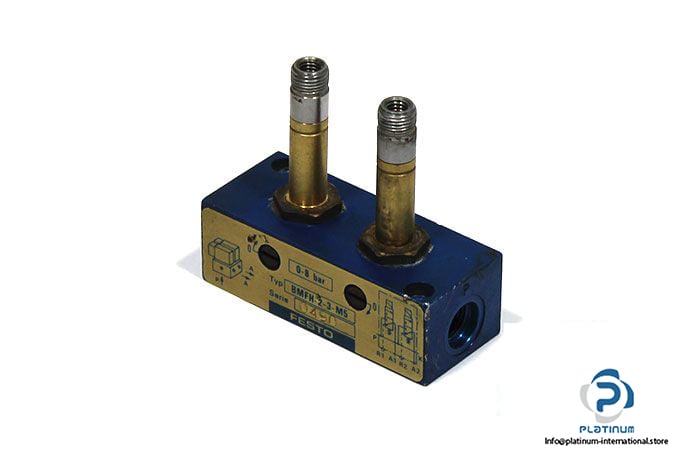

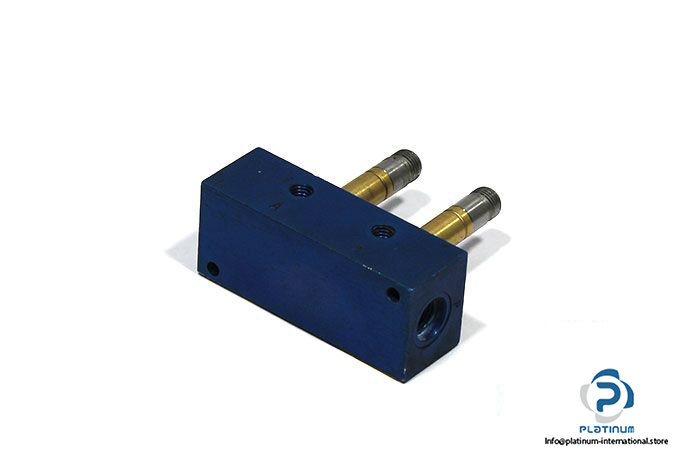

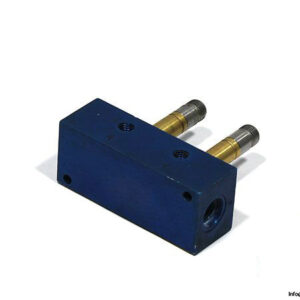

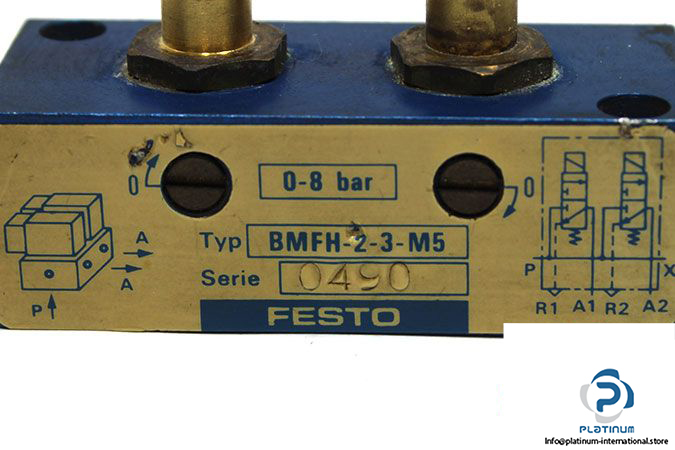

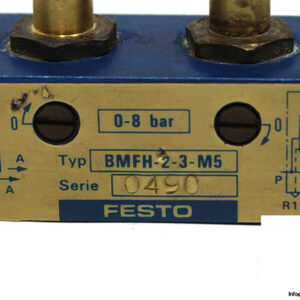

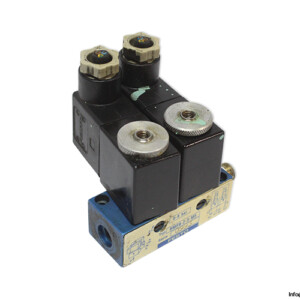

FESTO BMFH-2-3-M5 Air Solenoid Valve
The FESTO BMFH-2-3-M5 is a compact air solenoid valve designed for precise and reliable control of compressed air in industrial pneumatic systems. Its monostable poppet valve design with mechanical spring return ensures stable switching performance and dependable operation in demanding environments.
Manufacturer: FESTO
Type: Air Solenoid Valve
Model: BMFH-2-3-M5
Part No.: 4522
| Valve Function | 2x3/2, Closed, Monostable |
| Actuation Type | Electrical |
| Normal Nominal Flow Rate (DIN 1343) | 50 l/min |
| Pneumatic Working Port | M5 |
| Operating Pressure | 0 bar / 8 bar |
| Structural Design | Poppet Valve With Return Spring |
| Reset Method | Mechanical Spring |
| Degree of Protection | IP65 |
| Nominal Width | 1.3 mm |
| Sealing Principle | Soft |
| Max. Number of Valve Positions | 2 |
| Type of Control | Direct |
| Operating Medium | Compressed Air |
| Port Size | G1/8 |
| Pneumatic Connection 2 | M5 |
| Pneumatic Connection 3 | M5 |
| Ambient Temperature | -5 °C / 40 °C |
| Housing Material | Aluminum |
