Festo 527676 Branching Module With Pressure Sensor
Used
In stock2 unitsReady to ship
Branching Module
FESTO MS6-FRM-1/2-AD7 branching module with integrated pressure sensor and pressure gauge, designed for compressed air distribution and monitoring in industrial pneumatic systems.AirBranchingCompressedDistributionFestoFRMIndustrialModuleMS6PneumaticPneumaticsPressureSensorSeries
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

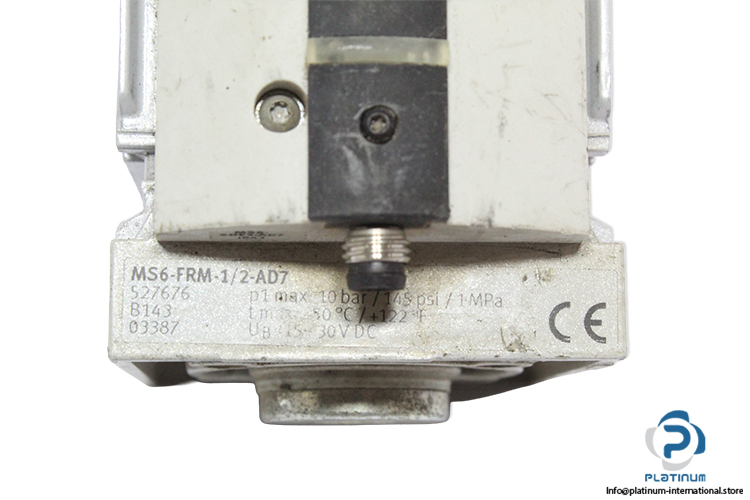

FESTO MS6-FRM-1/2-AD7 Branching Module
The FESTO MS6-FRM-1/2-AD7 is a robust branching module designed for compressed air systems, providing precise pressure monitoring and reliable air distribution. It is equipped with an integrated pressure sensor and pressure gauge, ensuring accurate pressure control and system monitoring in industrial pneumatic applications.
Manufacturer: FESTO
Type: Branching Module
Model: MS6-FRM-1/2-AD7
MRN: 527676
Attached Pressure Sensor
| Operating Medium | Compressed Air |
| Structural Design | Branching Module |
| Symbol | 00991510 |
| Pressure Gauge | G1/4 Prepared, G1/8 Prepared |
| Additional Features | With Pressure Sensor, With Pressure Gauge |
| Max. Operating Pressure | 10 bar |
| Standard Nominal Flow Rate (Main Flow Direction 1 †’ 2) | 3200 l/min / 14700 l/min |
| Standard Nominal Flow Rate (Outlet at Top) | 2700 l/min / 6000 l/min |
| Standard Nominal Flow Rate (Outlet Down) | 2800 l/min / 6400 l/min |
| DC Operating Voltage Range | 15 V / 30 V |
| Max. Temperature | 50 °C |
| Housing Material | Die-Cast Aluminum |
| Connection | G1/2 |

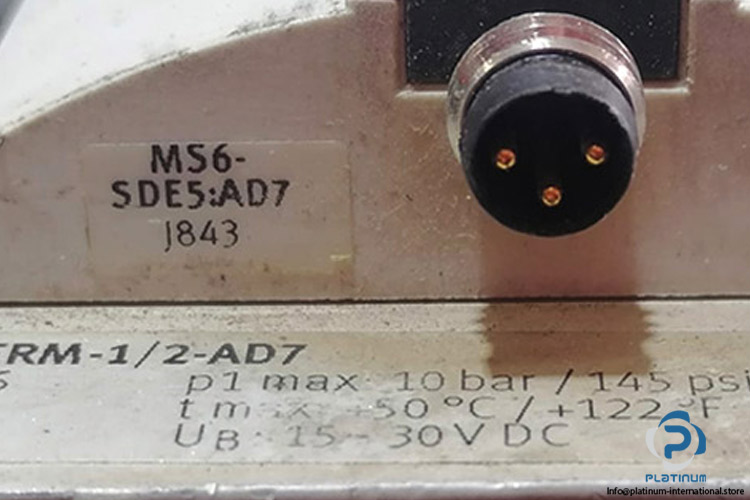

| Sensor Type | FESTO MS6-SDE5 AD7 Pressure Sensor |
| Series | SDE5 |
| Measured Variable | Relative Pressure |
| Switching Output | PNP |
| Electrical Connection | 3-Wire, 3-Pin |
| Medium | Compressed Air to ISO 8573-1:2010 [7:4:4] |
| Media Temperature | 0 / 50 °C |
| Ambient Temperature | 0 / 50 °C |
