Festo 527676 Branching Module
Used
Available on request
Branching Module
Pneumatic FESTO branching module for compressed air systems with integrated pressure monitoring capability and high flow capacity for industrial automation applications.AirBranchBranchingCompressedconnectionDistributionFestoflowg1/2IndustrialModuleMS6-FRM-1/2-AD1PneumaticPreparationUnit
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

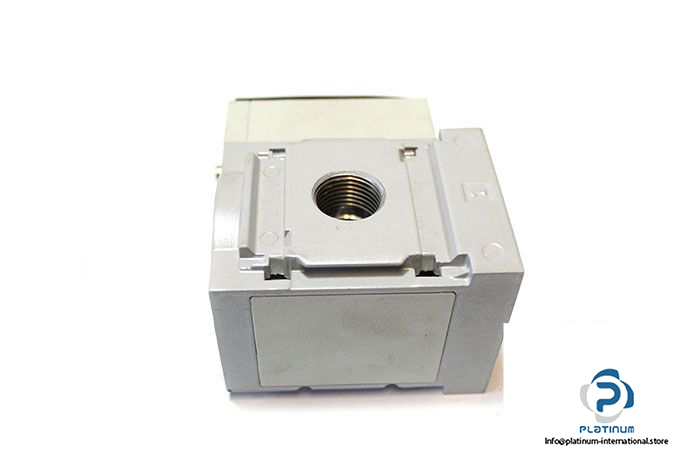

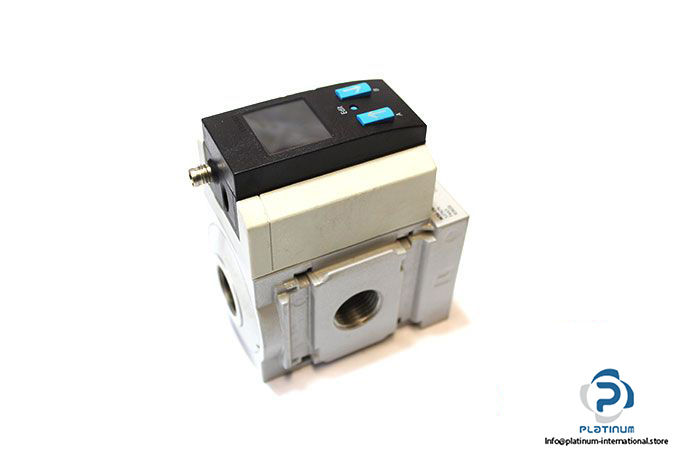

FESTO MS6-FRM-1/2-AD1 Branching Module
The FESTO MS6-FRM-1/2-AD1 is a pneumatic branching module designed for compressed air distribution in industrial automation and pneumatic systems. It integrates pressure monitoring capability with prepared ports for pressure gauges, supporting reliable system control and efficient air flow management.
Manufacturer: FESTO
Type: Branching Module

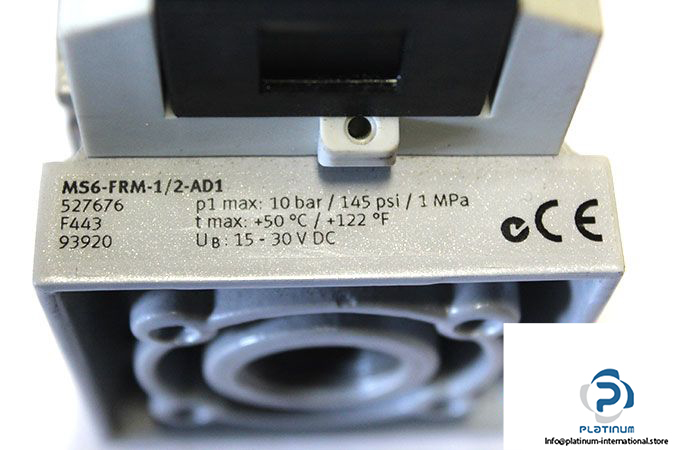

Model: MS6-FRM-1/2-AD1
MRN: 527676
| Operating Medium | Compressed Air |
| Structural Design | Branching Module |
| Symbol | 00991510 |
| Pressure Gauge | G1/4 Prepared, G1/8 Prepared |
| Features | With Pressure Sensor, With Pressure Gauge |
| Max Operating Pressure | 10 bar |
| Standard Nominal Flow Rate (Main Flow Direction 1 †’ 2) | 3200 l/min / 14700 l/min |
| Standard Nominal Flow Rate (Outlet at Top) | 2700 l/min / 6000 l/min |
| Standard Nominal Flow Rate (Outlet Down) | 2800 l/min / 6400 l/min |
| DC Operating Voltage Range | 15 V / 30 V |
| Max Temperature | 50 °C |
| Housing Material | Die-Cast Aluminum |
| Connection | G1/2 |
