Festo 529411 Lubricator
Used
In stock1 unitReady to ship
Lubricator
The FESTO MS4-LOE-1/4-R lubricator provides efficient air system lubrication with 1 to 12 bar pressure range, 2200 litres per minute flow rate, and durable aluminium and polycarbonate construction.12AirbarComponentsFestoG1/4IndustrialLubricatorMistmsMS4-LOE-1/4-RPneumaticPneumaticsPreparationProportionalSeriesUnit
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

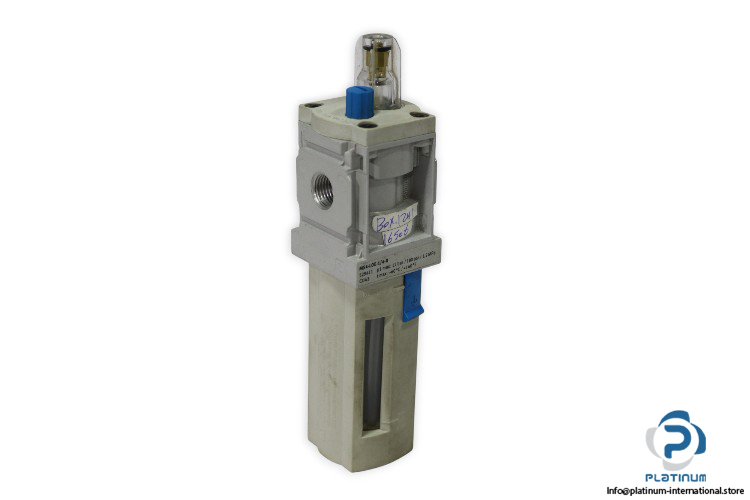

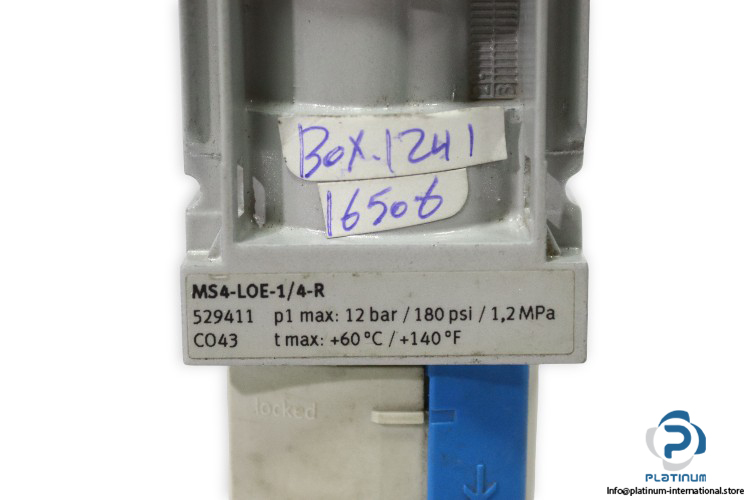

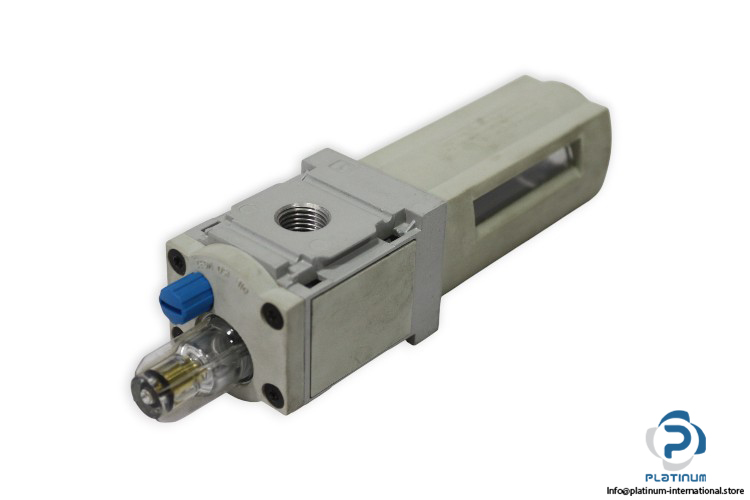

FESTO MS4-LOE-1/4-R Lubricator
The FESTO MS4-LOE-1/4-R Lubricator ensures precise and consistent lubrication of compressed air systems. It features a proportional standard mist design with durable materials, providing reliable performance and protection for pneumatic equipment in industrial environments.
Manufacturer: FESTO
Type: Lubricator
Model: MS4-LOE-1/4-R
Part No: 529411
| Size | 4 |
| Series | MS |
| Mounting position | Vertical plus or minus 5 degrees |
| Design | Proportional standard mist lubricator |
| Maximum oil capacity | 30 cubic centimetres |
| Bowl guard | Plastic bowl guard |
| Operating pressure | 1 bar to 12 bar |
| Minimum flow rate for lubricator function | 40 litres per minute |
| Standard nominal flow rate | 2200 litres per minute (DIN 1343) |
| Operating medium | Compressed air to ISO 8573-1:2010 7:4:4 |
| Inert gases | Suitable |
| Corrosion resistance class (CRC) | 2 Moderate corrosion stress |
| Oil viscosity | ISO VG 32 |
| Ambient temperature | -10 degrees Celsius to 60 degrees Celsius |
| Type of mounting | In line installation |
| With accessories | Yes |
| Pneumatic connection port 1 | G1/4 |
| Pneumatic connection port 2 | G1/4 |
| Material housing | Die cast aluminium |
| Material bowl | Polycarbonate (PC) |
