Festo 531117 AIR Preparation Combination Unit
Used
Available on request
Air Preparation Combination Unit
The FESTO MSB4-1/4-FRC5:J1M1 Air Preparation Unit combines a filter regulator and lubricator to deliver clean, regulated, and lubricated air at pressures from 1.5 to 14 bar, ensuring reliable pneumatic system performance.AirComponentsCompressedconnectionFestofilterG1/4IndustrialLubricatormsMSB4-1/4-FRC5:J1M1PneumaticPneumaticsPreparationregulatorSeriesSystemUnit
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

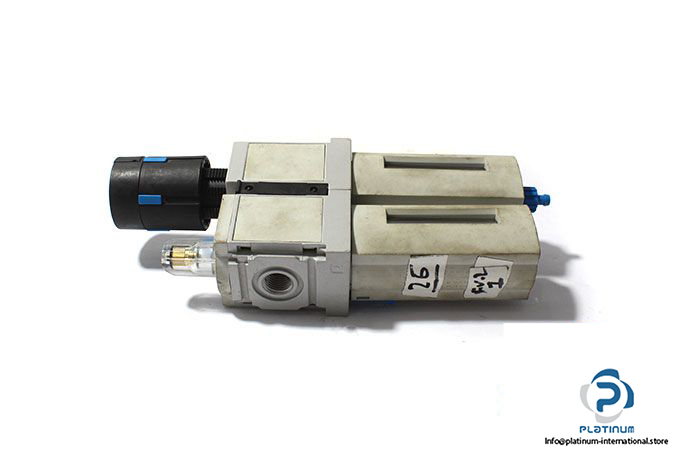

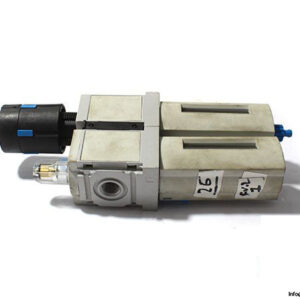

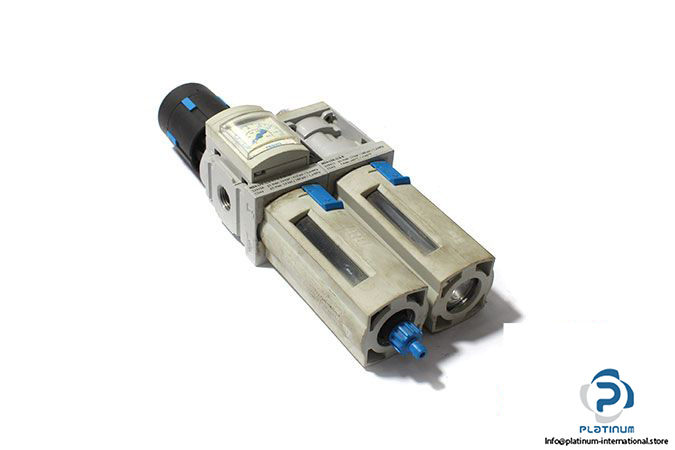

FESTO MSB4-1/4-FRC5:J1M1 Air Preparation Combination Unit
The FESTO MSB4-1/4-FRC5:J1M1 Air Preparation Combination Unit is an efficient and reliable solution for compressed air preparation. It integrates a high-quality filter regulator and lubricator, ensuring clean, regulated, and properly lubricated air supply for pneumatic systems.
Manufacturer: FESTO
Type: Air Preparation Combination Unit

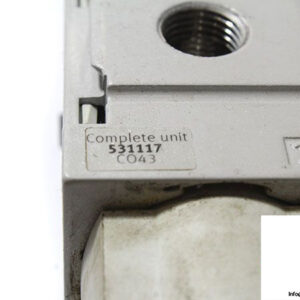

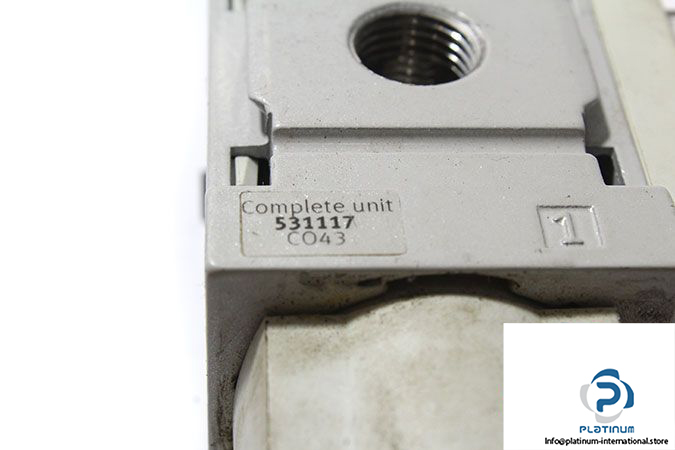

Part No.: 531117
Model: MSB4-1/4-FRC5:J1M1
Size: 4
Series: MS
Materials: Body: die-cast zinc Z410
Consists of Two Items
Lubricator Technical Information
| Standard nominal flow rate | 900 l/min |
| Media | Compressed air |
| Operating pressure | 1.5 to 14 bar |
| Pressure regulation range | 0.5 to 12 bar |
| Pneumatic connection | G1/4 |
| Temperature range | -10°C to 60°C |

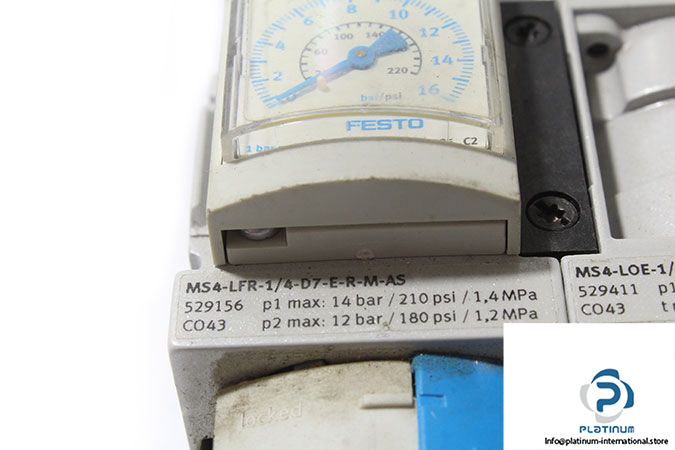

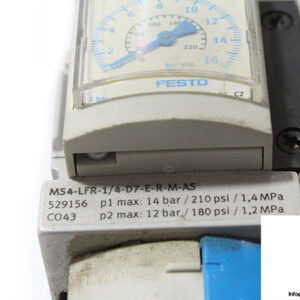

| 1. FESTO 529156 Filter Regulator Manufacturer | FESTO |
| Part No. | 529156 |

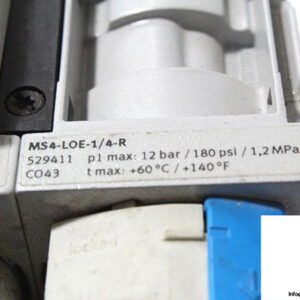

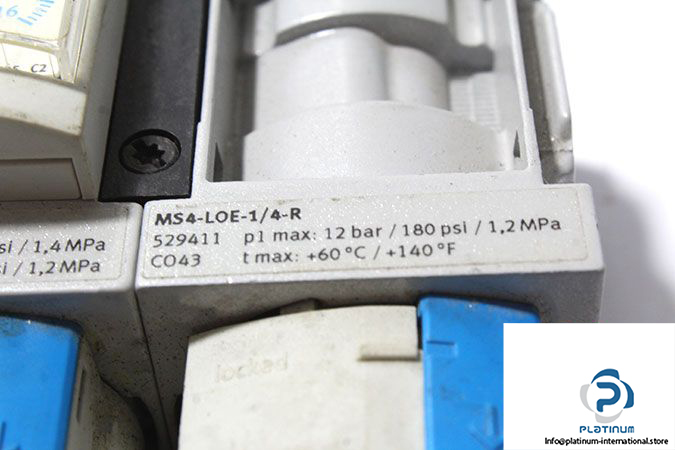

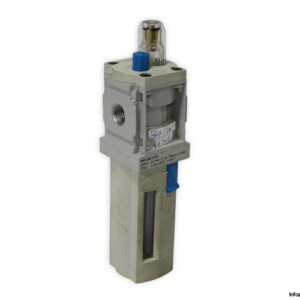

| 2. FESTO 529411 Lubricator Manufacturer | FESTO |
| Part No. | 529411 |
| Size | 4 |
| Series | MS |
| Mounting position | Vertical ±5° |
| Design | Proportional standard mist lubricator |
| Max. oil capacity | 30 cm³ |
| Bowl guard | Plastic bowl guard |
| Operating pressure | 1 to 12 bar |
| Min. flow rate for lubricator function | 40 l/min |
| Standard nominal flow rate | 2200 l/min |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| Oil viscosity | ISO VG 32 |
| Ambient temperature | -10°C to 60°C |
| Type of mounting | In-line installation |
| Pneumatic connection port 1 | G1/4 |
| Pneumatic connection port 2 | G1/4 |
| Material housing | Die-cast aluminium |
| Material bowl | PC |
