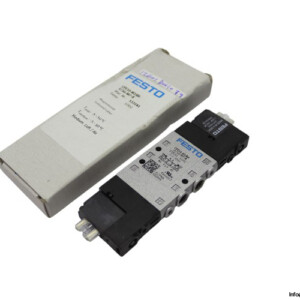

Festo 533141 Double Solenoid Valve
Used
In stock4 unitsReady to ship
49,99$
Double Solenoid Valve
The Festo CPE10-M1BH-5/3G-M7-B is a 5/3 way double solenoid valve designed for precise control of compressed air. With a 350 l/min flow rate and 3-8 bar pressure, it™s ideal for industrial automation applications. Includes Festo MSZE-3-24 DC solenoid coil.5/3AirAutomationcoilComponentsCompresseddcDoubleFestoGateIndustrialMSZE-3-24PistonPneumaticsolenoidValveWay
New
In stock 59,99$
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

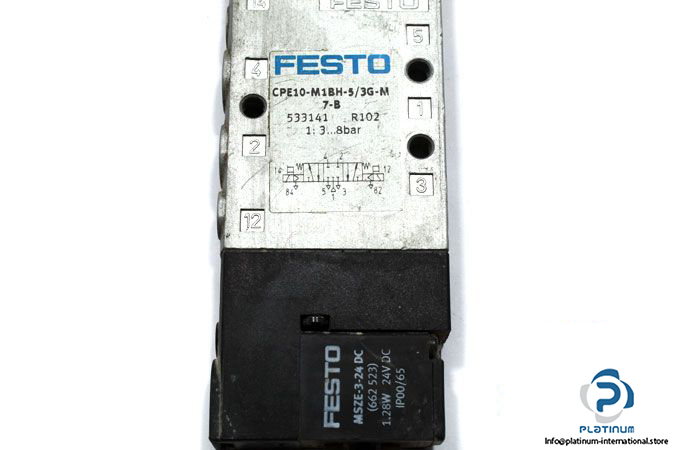

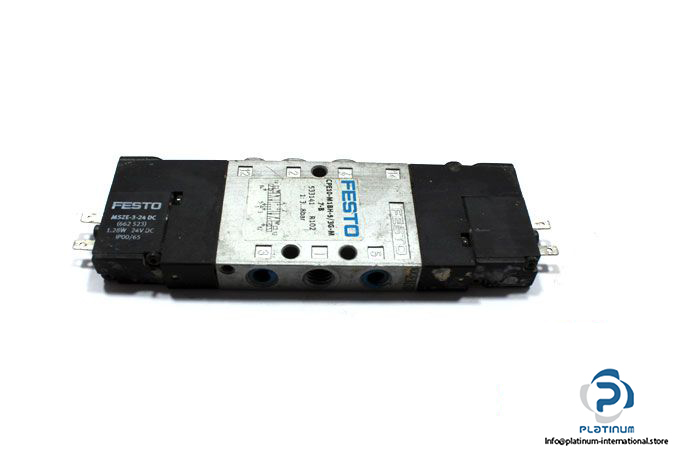

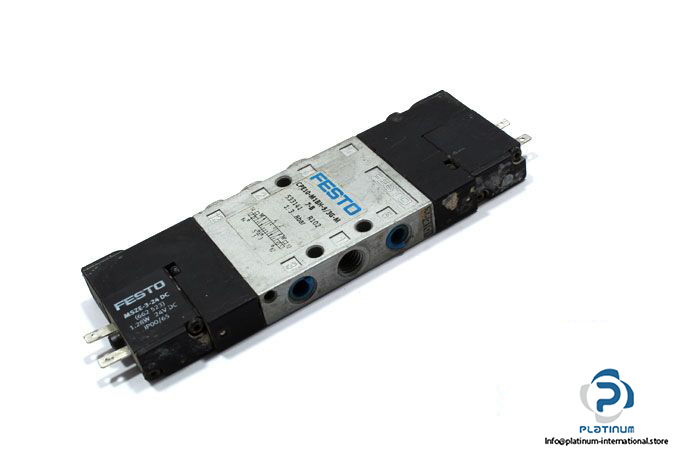

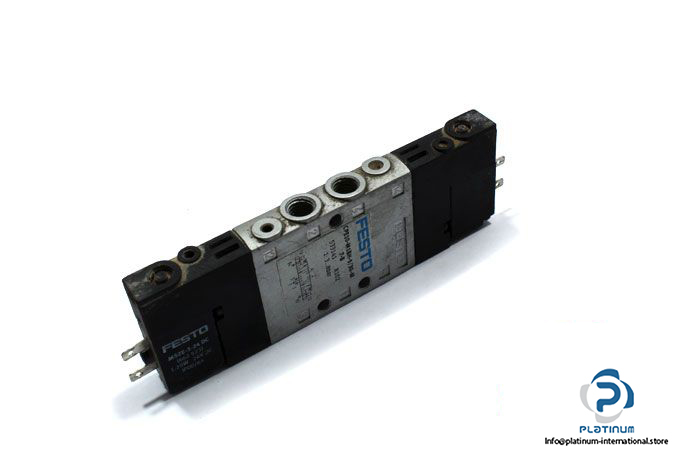

Festo CPE10-M1BH-5/3G-M7-B Double Solenoid Valve
The Festo CPE10-M1BH-5/3G-M7-B double solenoid valve is a highly efficient pneumatic control valve designed for precise operation in automated systems. With a 5/3 way function, it offers smooth control of compressed air flow. The valve operates within a pressure range of 3 to 8 bar and features a flow rate of 350 l/min. Designed for high durability, it has a die-cast aluminum housing and NBR seals for optimal sealing performance.
Manufacturer: Festo
Type: Double Solenoid Valve
Model: CPE10-M1BH-5/3G-M7-B
Part No.: 533141
Technical Data:
- Type of Actuation: Electrically
- Function: 5/3 way
- Operating Pressure: 3 to 8 bar
- Operating Medium: Compressed Air
- Flow Rate: 350 l/min
- Design: Piston Gate Valve
- Electrical Connection: 2-pin
- Ambient Temperature: -5 to 50°C
- Pneumatic Connection: Sub-based
- Material Seals: NBR
- Material Housing: Die-cast aluminum
- Pneumatic Working Port: M7
- Attachment: FESTO 662 523 SOLENOID COIL
Festo MSZE-3-24 DC Solenoid Coil
- Manufacturer: Festo
- Type: Solenoid Coil
- Model: MSZE-3-24 DC
- Part No.: 662 523
- Voltage: 24 V DC
- Power: 1.28 W
- Protection Degree: IP00/65
