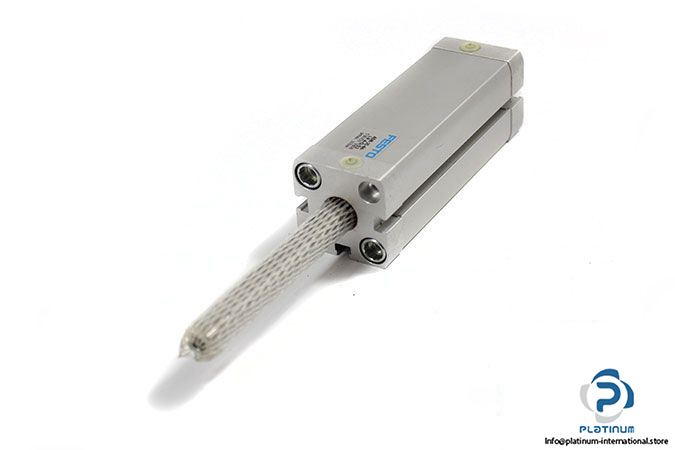

Festo ADN-25-80-I-P-A-Q-S2 Compact Cylinder

Manufacturer: FESTO

Type: Double-Acting Compact Cylinder

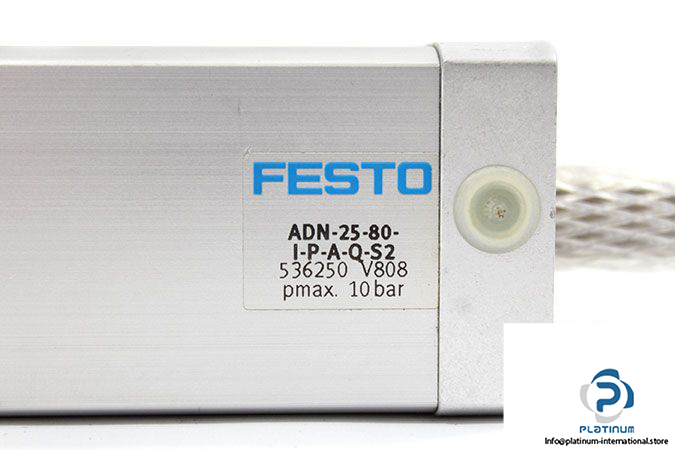

Model: ADN-25-80-I-P-A-Q-S2

Part No.: 536250

Materials

  Cylinder barrel : Aluminium wrought alloy, Smooth anodised

  Piston rod: High-alloy steel

Stroke Length: 80 mm

Piston Diameter: 25 mm

Piston rod thread: Female thread

Operating Pressure: 0.6 … 10 bar

Cushioning: Flexible cushioning rings/pads at both ends

Position Sensing: Via proximity sensor

Impact energy: 0,30 J

Theoretical force at 6 bar, Return Stroke: 247 N

Pneumatic Connection: M5

Mode of operation: Double-acting

Temperature: -20 … 60 °C

Weight: 0.41 kg
