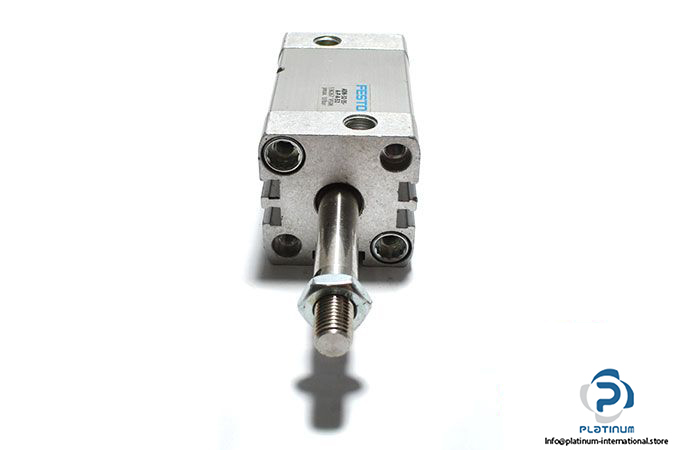

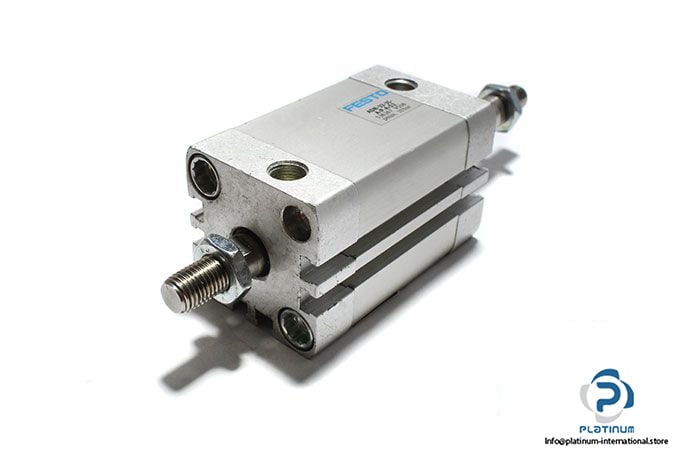

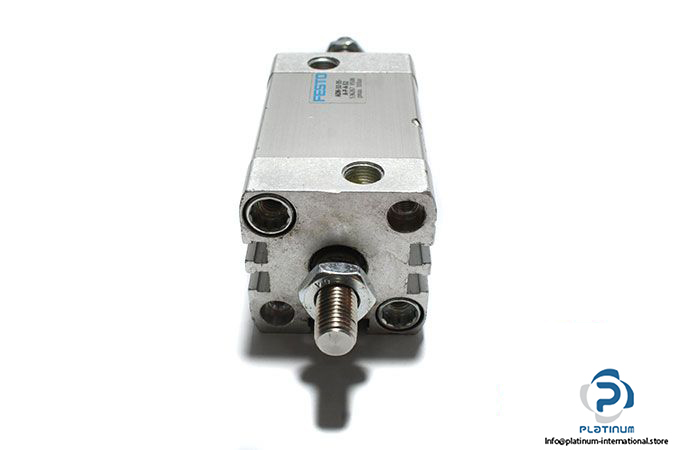

Festo ADN-32-35-A-P-A-S2 Compact Cylinder

Manufacturer: FESTO
Type: Double-Acting Compact Cylinder

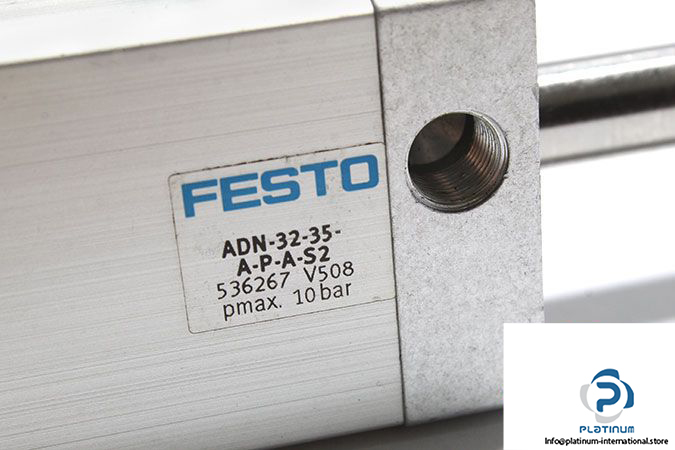

Model: ADN-32-35-A-P-A-S2
Part No.: 536267

Materials  Cylinder Tube: Aluminium wrought alloy Smooth anodised
Piston rod: High-alloy steel
Stroke Length: 35 mm
Piston Diameter: 32 mm
Piston rod thread: Male thread
Operating Pressure: 0.6 … 10 bar
Cushioning: Flexible cushioning rings/pads at both ends
Position Sensing: Via proximity sensor
Pneumatic Connection: G1/8
Dimensions (Height x width x Length): 47 x 47 x 75mm
Mode of operation: Double-Acting
Variant: Through piston rod
Temperature: -20 … 80 °C
