Festo 536269 Compact Cylinder
New
In stock1 unitReady to ship
Compact Cylinder
FESTO ADN-32-10-A-P-A Compact Cylinder is a high-precision pneumatic actuator designed for industrial automation. With a 10 mm stroke length, a 32 mm piston diameter, and an anodized aluminum barrel, it ensures durability and smooth operation.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

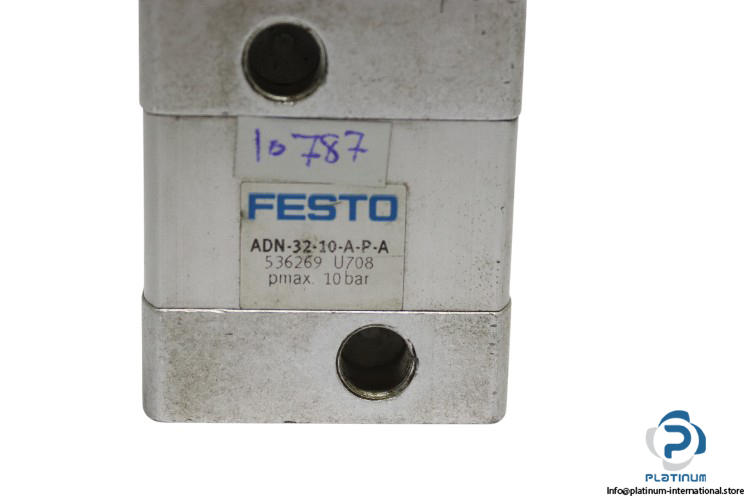

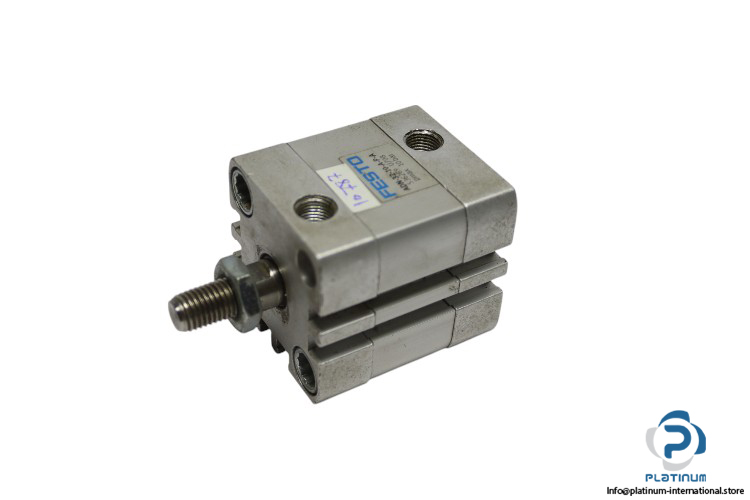

FESTO ADN-32-10-A-P-A Compact Cylinder
The FESTO ADN-32-10-A-P-A Compact Cylinder is a high-performance pneumatic actuator designed for applications requiring precise motion in compact spaces. With a 32 mm piston diameter, 10 mm stroke length, and a smooth-anodized aluminum alloy barrel, this double-acting cylinder ensures durability and efficiency. Built with elastic cushioning rings for shock absorption, it offers reliable performance in industrial automation and pneumatic systems.
- Manufacturer: FESTO
- Type: Compact Cylinder
- Model: ADN-32-10-A-P-A
- Part No.: 536269
Technical Specifications
- Stroke Length: 10 mm
- Piston Diameter: 32 mm
- Piston Rod Thread: M10x1.25
- Max. Operating Pressure: 10 bar
- Mode of Operation: Double Acting
- Cushioning: Elastic Cushioning Rings/Pads at Both Ends
- Position Sensing: For Proximity Sensing
- Variant: Piston Rod at One End
- Pneumatic Connection: G1/8
- Material of Cylinder Barrel: Wrought Aluminum Alloy, Smooth-Anodized
- Temperature Range: -20 … 80 °C
