Festo 536326 Compact Cylinder

FESTO COMPACT CYLINDER

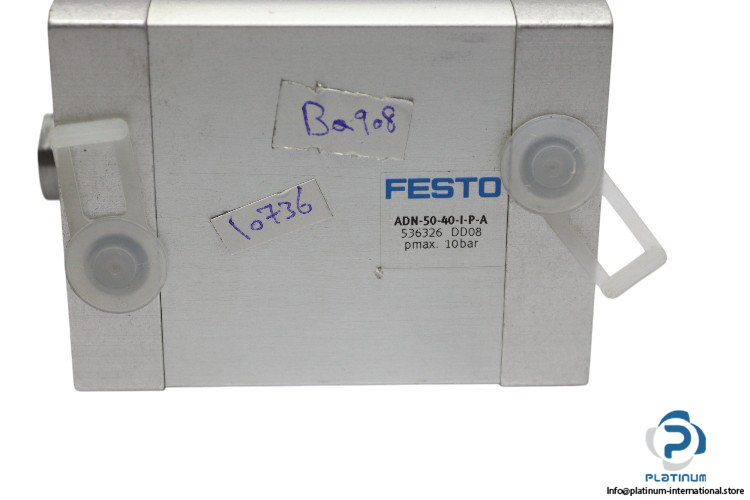

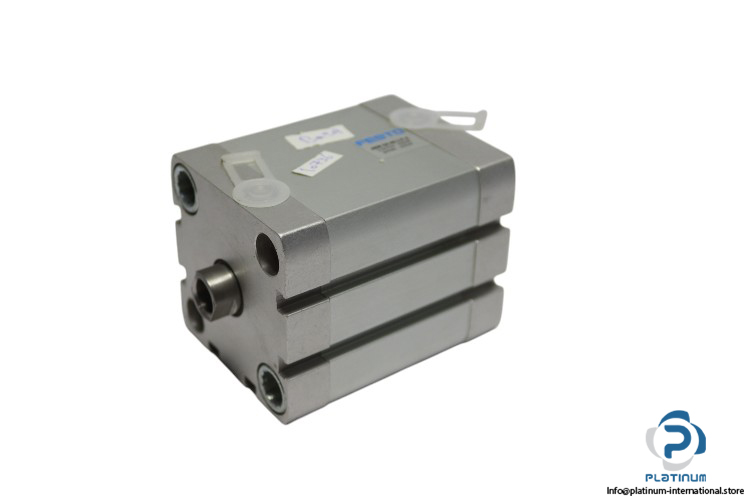

The FESTO Compact Cylinder (Model: ADN-50-40-I-P-A, Part No.: 536326) is designed for efficient and reliable linear motion in a wide range of industrial applications. With a stroke length of 40 mm and a piston diameter of 50 mm, this double-acting cylinder is ideal for precise positioning and handling in pneumatic systems. It features flexible cushioning at both ends and is optimized for use in temperatures ranging from -20 to 80°C.

Manufacturer: FESTO

Type: Compact Cylinder

Model: ADN-50-40-I-P-A

Part No.: 536326

Technical Specifications

• Stroke Length: 40 mm
• Piston Diameter: 50 mm
• Piston Rod Thread: Female
• Max. Operating Pressure: 10 bar
• Mode of Operation: Double acting
• Cushioning: Flexible cushioning rings/plates at both ends
• Position Sensing: For proximity sensing
• Pneumatic Connection: G1/8
• Temperature: -20 / 80 °C
