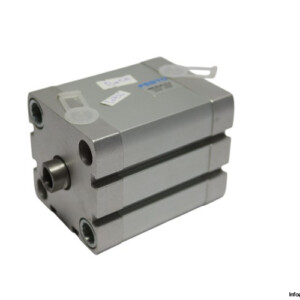

Festo 536326 Compact Cylinder
Used
In stock13 unitsReady to ship
compact cylinder
The FESTO Compact Cylinder ADN-50-40-I-P-A (Part No. 536326) offers reliable performance with a 40 mm stroke length, 50 mm piston diameter, and flexible cushioning for pneumatic systems.4050ActingconnectionCushioningCylinderDoubleFlexibleG1/8IndustrialmmPistonPneumaticPositionSensingStroke
New
In stock
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
FESTO COMPACT CYLINDER

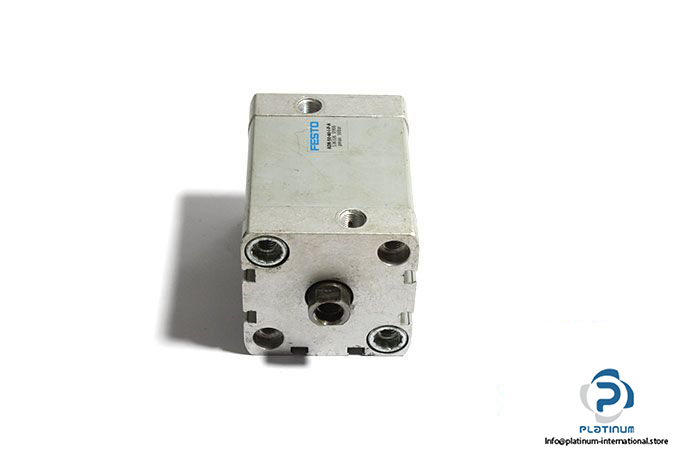

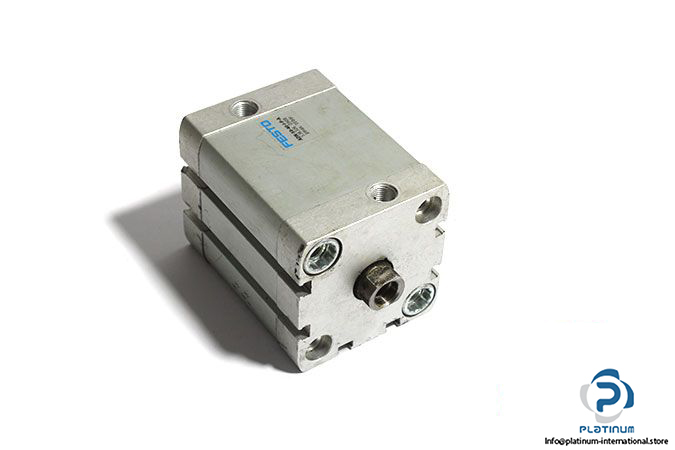

The FESTO Compact Cylinder (Model: ADN-50-40-I-P-A, Part No.: 536326) is designed for efficient and reliable linear motion in a wide range of industrial applications. With a stroke length of 40 mm and a piston diameter of 50 mm, this double-acting cylinder is ideal for precise positioning and handling in pneumatic systems. It features flexible cushioning at both ends and is optimized for use in temperatures ranging from -20 to 80°C.
Manufacturer: FESTO
Type: Compact Cylinder

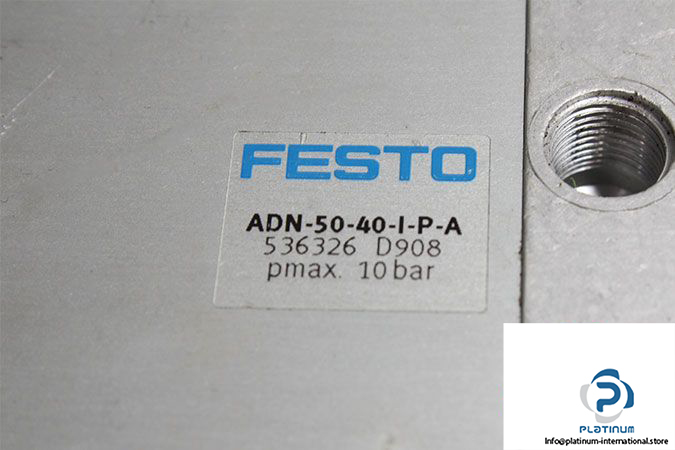

Model: ADN-50-40-I-P-A
Part No.: 536326
Technical Specifications
- Stroke Length: 40 mm
- Piston Diameter: 50 mm
- Piston Rod Thread: Female
- Max. Operating Pressure: 10 bar
- Mode of Operation: Double acting
- Cushioning: Flexible cushioning rings/plates at both ends
- Position Sensing: For proximity sensing
- Pneumatic Connection: G1/8
- Temperature: -20 / 80 °C
