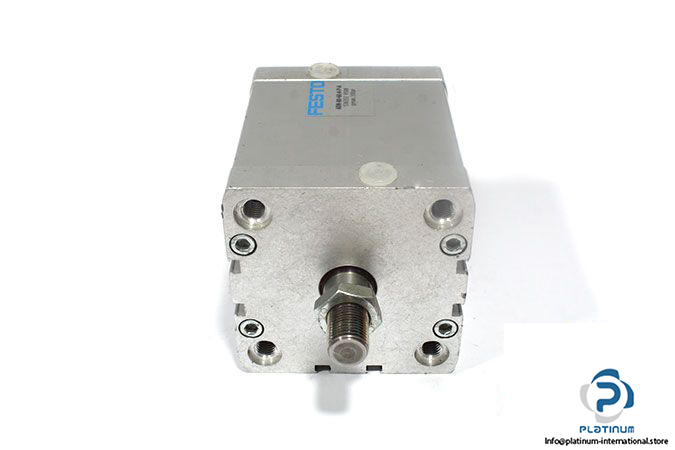

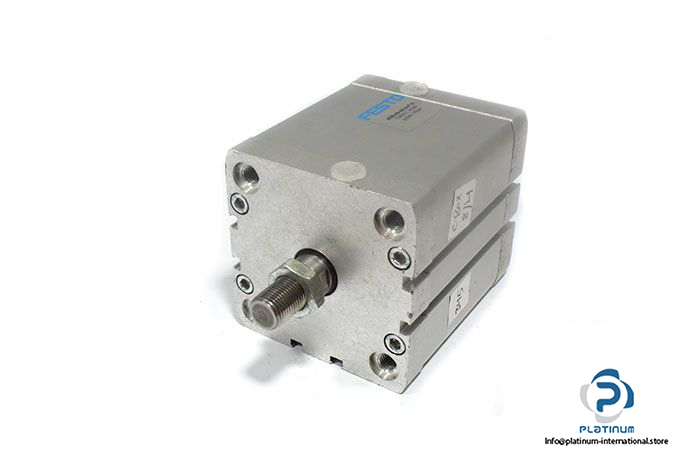

Festo 536351 Compact Cylinder

Manufacturer: FESTO

Type: Double-Acting Compact Cylinder

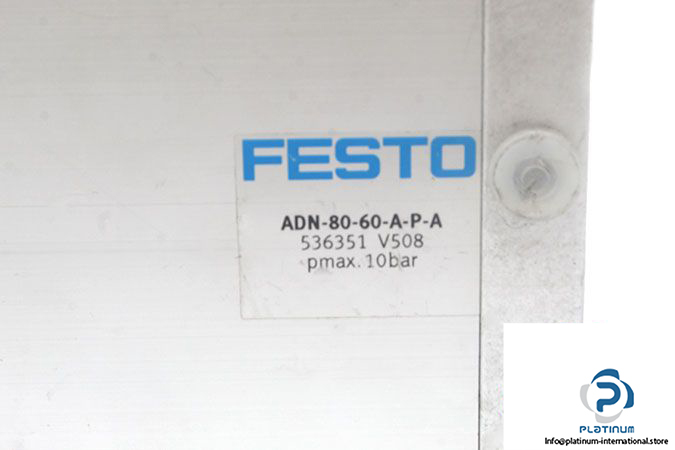

Model: ADN-80-60-A-P-A

Part No.: 536351

Materials

,,Cylinder Tube: Aluminium wrought alloy Smooth anodised

,,Piston rod: High-alloy steel

Stroke Length: 60 mm

Piston Diameter: 80 mm

Piston rod thread: Male thread

Operating Pressure: 0.6 … 10 bar

Cushioning: Flexible cushioning rings/pads at both ends

Position Sensing: Via proximity sensor

Pneumatic Connection: G 1/8

Mode of operation: Double-Acting

Temperature: -20 … 80 °C

Weight: 1.7 kg
