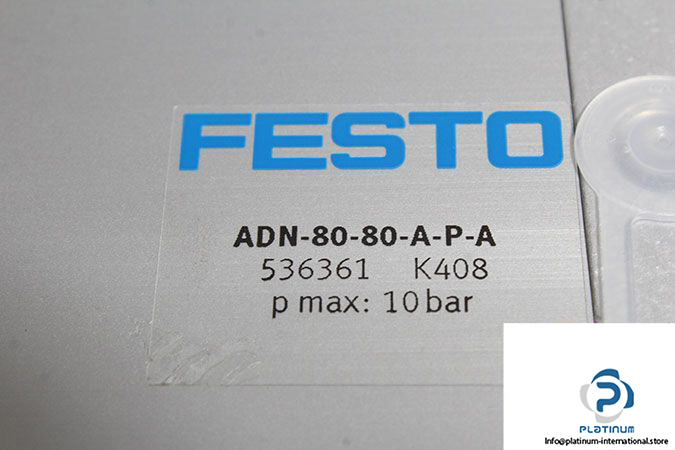

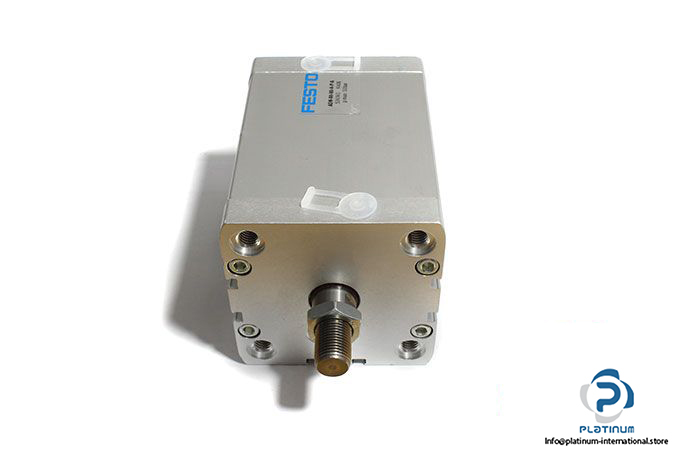

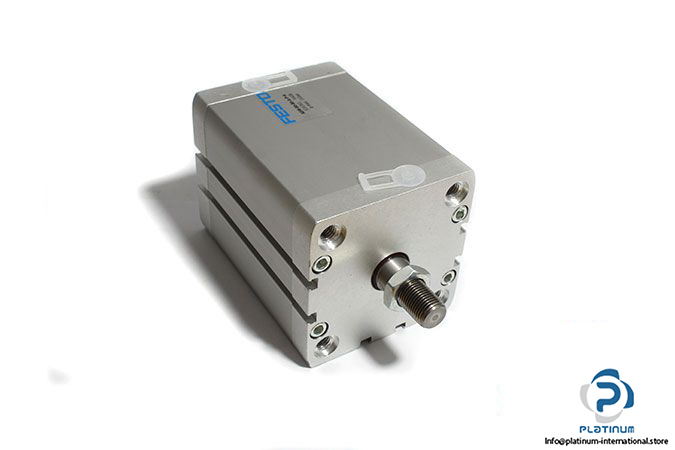

Festo 536361 Compact Cylinder

Manufacturer: FESTO

Type: Compact Cylinder

Model: ADN-80-80-A-P-A

Part No.: 536361



Materials

Piston rod material: High-alloy steel

Material of cylinder barrel: Wrought aluminum alloy

Stroke Length: 80 mm

Piston Diameter: 80 mm

Piston rod thread: Male

Operating Pressure: 0.6 bar … 10 bar

Mode of operation: Double acting

Cushioning: Elastic cushioning rings/pads at both ends

Position Sensing: For proximity sensing

Pneumatic Connection: G1/8

Temperature: -20 … 80 °C

Weight: 1.8 kg
