Festo 537149 Filter Regulator
Used
In stock1 unitReady to ship

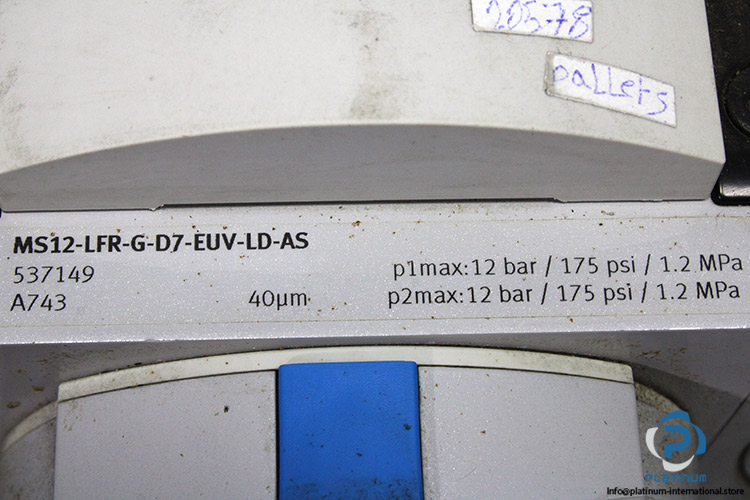

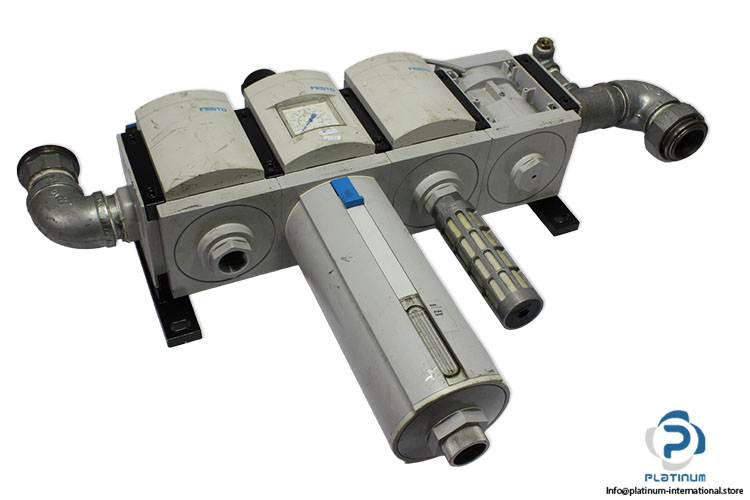

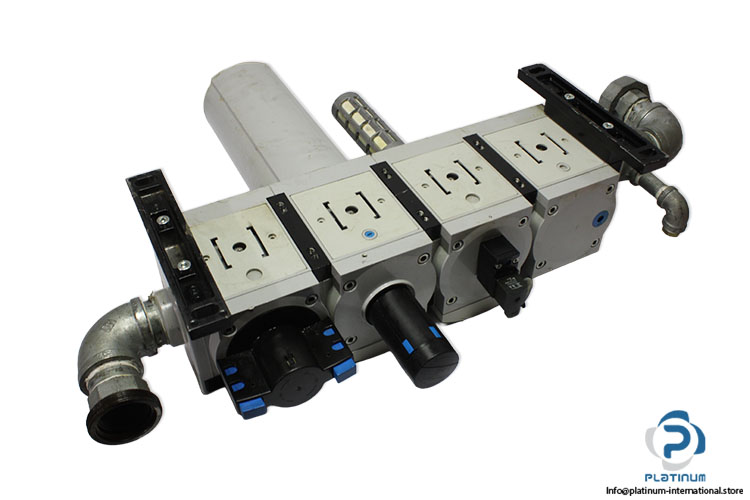

Filter Regulator The FESTO MS12-LFR-G-D7-EUV-LD-AS is a compressed-air filter regulator with integrated valve attachments, designed for pneumatic air preparation and control.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 537149 |
| Media | Compressed Air |
| Size | 12 |
| Actuator Lock | Rotary Knob with Detent |
| Operating Pressure | 2 … 12 bar |
| Pressure Regulation Range | 0.5 … 12 bar |
| Pressure P1 Max. | 12 bar / 175 psi / 1.2.MPa |
| Condensate Volume Max. | 400 ml |
| Filtration Grade | 40 µm |
| Flow Rate | 12000 … 17000 l/min |
| Material | Die-Cast Aluminum |
| Temperature Range | -10 … 60°C |

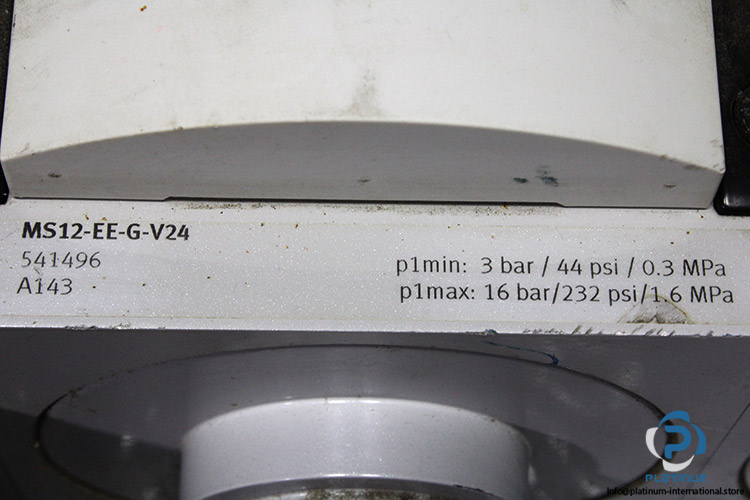

| Attachment 1 | FESTO 541496 ON/OFF VALVE |
| On/Off Valve 1 Manufacturer | FESTO |
| Attachment 1 Type | On/Off Valve |
| On/Off Valve 1 Model | MS12-EE-G-V24 |
| On/Off Valve 1 Part No. | 541496 |
| On/Off Valve 1 Series | MS |
| On/Off Valve 1 Size | 12 |
| On/Off Valve 1 Operating Medium | Compressed Air |
| On/Off Valve 1 Design | Piston Gate Valve |
| On/Off Valve 1 Function | 3/2-Way, Single Solenoid, Closed |
| On/Off Valve 1 Actuation Type | Electrical |
| On/Off Valve 1 Operating Pressure Range | 3 ... 16 bar |
| On/Off Valve 1 Pressure P1 Max. | 20 bar / 300 PSI / 2,0 MPa |
| On/Off Valve 1 Nominal Flow Rate | 25000 ... 32000 l/min |
| On/Off Valve 1 Material | Die-Cast Aluminum |
| On/Off Valve 1 Port Size | G1 |
| On/Off Valve 1 Ambient Temperature | -10 … 60 °C |

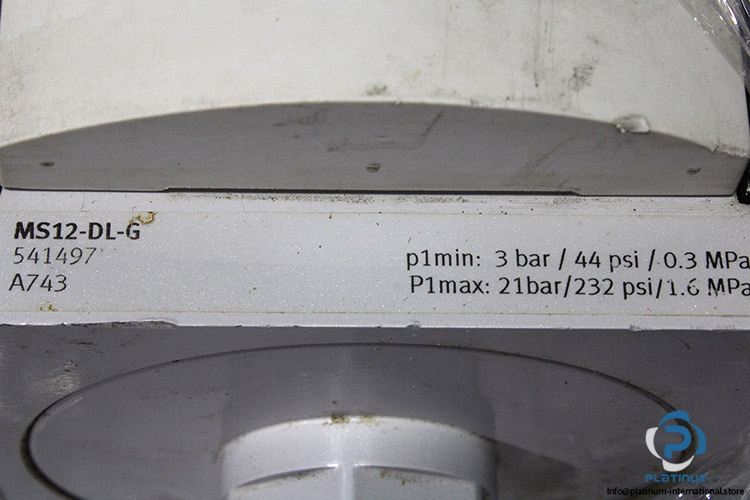

| Attachment 2 | FESTO 541497 SOFT-START VALVE |
| Soft-Start Valve Manufacturer | FESTO |
| Attachment 2 Type | Soft-Start Valve |
| Soft-Start Valve Model | MS12-DL-G |
| Soft-Start Valve Part No. | 541497 |
| Soft-Start Valve Series | MS |
| Soft-Start Valve Operating Medium | Compressed Air |
| Soft-Start Valve Design | Piston Seat Valve |
| Soft-Start Valve Function | 2/2 Way |
| Soft-Start Valve Actuation Type | Pneumatic |
| Soft-Start Valve Operating Pressure Range | 2 ... 20 bar |
| Soft-Start Valve Pressure P1 Max. | 21 bar / 232 psi / 1.6 MPa |
| Soft-Start Valve Nominal Flow Rate | 25000 ... 42000 l/min |
| Soft-Start Valve Material | Die-Cast Aluminum |
| Soft-Start Port Size | Manifold |
| Soft-Start Ambient Temperature | -10 … 60 °C |

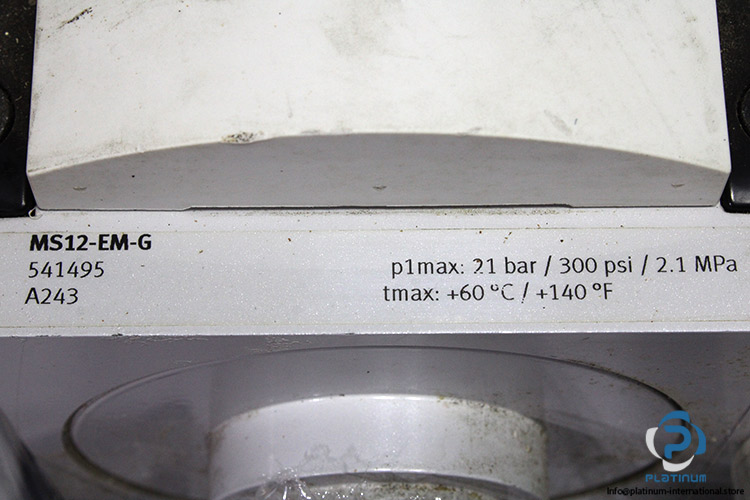

| Attachment 3 | FESTO 541495 ON/OFF VALVE |
| On/Off Valve Manufacturer | FESTO |
| Attachment 3 Type | On/Off Valve |
| On/Off Valve Model | MS12-EM-G |
| On/Off Valve Part No. | 541495 |
| On/Off Valve Series | MS |
| On/Off Valve Size | 12 |
| On/Off Valve Operating Medium | Compressed Air |
| On/Off Valve Design | Piston Gate Valve |
| On/Off Valve Function | 3/2-Way, Double Solenoid |
| On/Off Valve Actuation Type | Electrical |
| On/Off Valve Operating Pressure Range | 0 ... 20 bar |
| On/Off Valve Pressure P1 Max. | 20 bar / 300 PSI / 2,0 MPa |
| On/Off Valve Nominal Flow Rate | 25000 ... 32000 l/min |
| On/Off Valve Material | Die-Cast Aluminum |
| On/Off Valve Port Size | G1 |
| On/Off Valve Ambient Temperature | -10 … 60 °C |

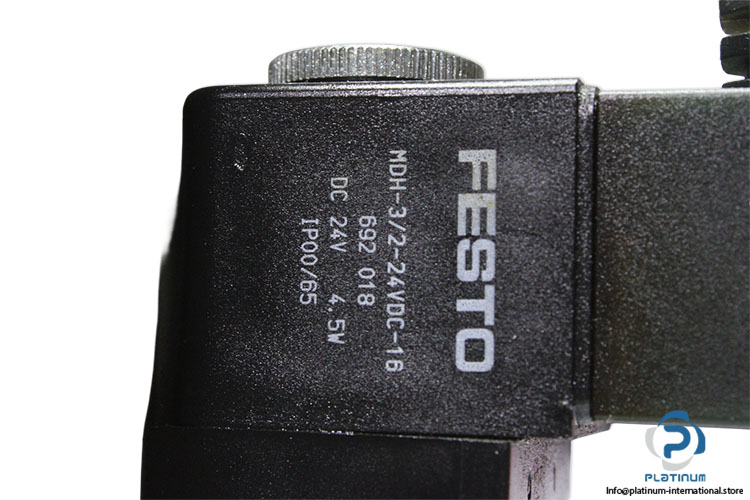

| Attachment 4 | FESTO 692 018 SOLENOID COIL |
| Solenoid Coil Manufacturer | FESTO |
| Attachment 4 Type | Solenoid Coil 1 |
| Solenoid Coil Model | MDH-3/2-24VDC-16 |
| Solenoid Coil Part No. | 692 018 |
| Solenoid Coil Supply Voltage | 24 V DC |
| Solenoid Coil Power Consumption | 4.5 W |
| Solenoid Coil Protection Class | IP00/ IP65 |
| Stock Key | JO-004 |
| Condition | Used |
| SKU | 1103140 |
| Weight | 24,81 |
