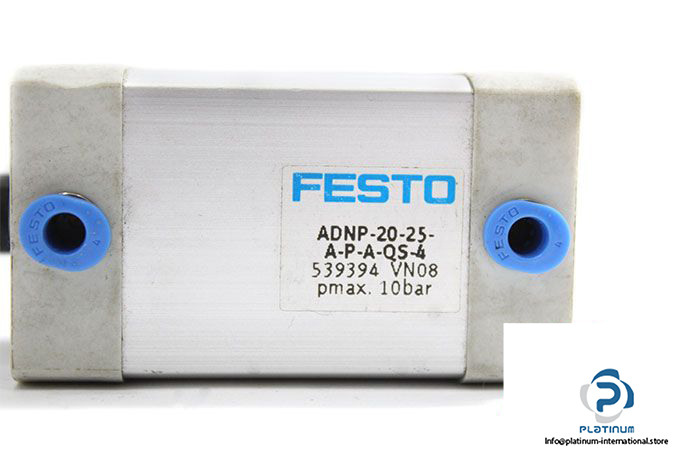

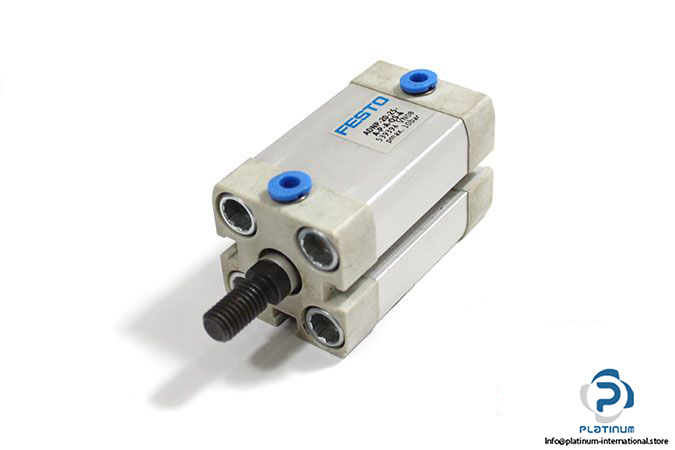

Festo 539394 Compact Cylinder

Manufacturer: FESTO

Type: Double-acting Compact Cylinder

Model: ADNP-20-25-A-P-A-QS-4

Part No.: 539394

Materials

  Cylinder barrel: Anodised aluminium

  Piston rod: High-alloy steel

Stroke Length: 25 mm

Piston Diameter: 20 mm

Piston rod thread: Male thread

Operating Pressure: 0.6 … 10 bar

Cushioning: Flexible cushioning rings/pads at both ends

Position Sensing: Via proximity sensor

Pneumatic Connection: M5

Mode of operation: Double-acting

Temperature: -20 … 80 °C

Weight: 0.15 kg
