Festo 542246 Proportional Pressure Control Valve
Used
In stock1 unitReady to ship
255,55$
PROPORTIONAL PRESSURE CONTROL VALVE
FESTO VPPM-6F-L-1-F-0L6H-V1N is a compact and accurate proportional pressure control valve for compressed air systems with 900 l/min flow rate and 24 V DC control.24vAirCompressedControldcFestoflowIndustrialPneumaticPressureProportionalregulatorSub-BaseValveVPPM-6F-L-1-F-0L6H-V1N
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
FESTO VPPM-6F-L-1-F-0L6H-V1N PROPORTIONAL PRESSURE CONTROL VALVE
The FESTO VPPM-6F-L-1-F-0L6H-V1N is a high-precision proportional pressure control valve designed for accurate regulation of compressed air in industrial pneumatic systems. It features integrated electronics and a compact sub-base design, making it ideal for applications requiring responsive and stable pressure control.
Manufacturer: FESTO
Type: Proportional Pressure Control Valve
Model: VPPM-6F-L-1-F-0L6H-V1N
Part No.: 542246
| Media | Compressed Air |
| Nominal Width | 6 mm |
| Exhaust Nominal Width | 4.5 mm |
| Inlet Pressure Max. | 0 / 8 bar |
| Standard Flow Rate | 900 l/min |
| Operational Voltage Range | 24 V DC |
| Current Consumption Max. | 300 mA |
| Switching Output | NPN |
| Analog Output Signal Range | 0 / 10 V |
| Pneumatic Connection | Sub-Base |

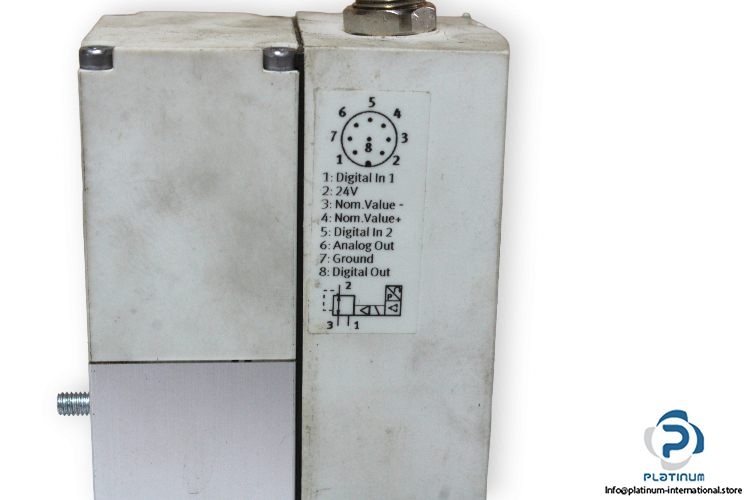

| Electrical Connection | M12, 8-Pin |
| Ambient Temperature | 10 / 50 °C |
