Festo 542582 On/Off Valve
Used
In stock1 unitReady to ship
ON/OFF VALVE WITH SOLENOID COIL
FESTO MS6-EE-1/2-10V24 on/off valve with 3/2-way monostable function and 546256 solenoid coil, designed for efficient air flow control in automation systems.3/2-way546256ActuatedAircoilControlElectricallyFestoflowHighIndustrialMS6-EE-1/2-10V24On/OffPneumaticsolenoidValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

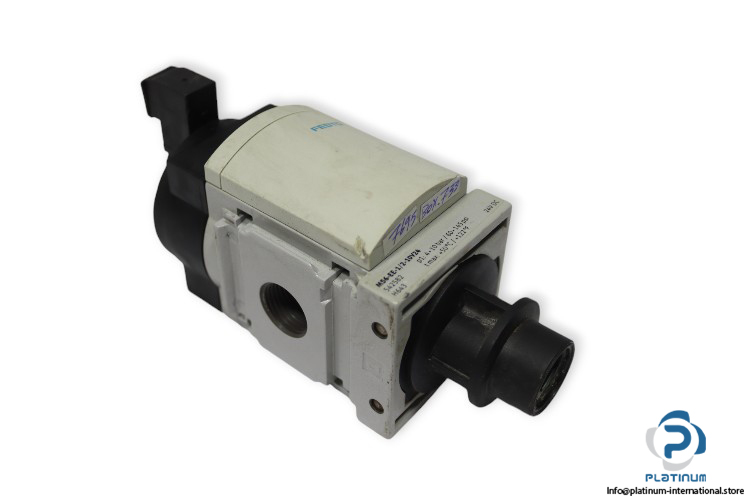

FESTO MS6-EE-1/2-10V24 ON/OFF VALVE WITH SOLENOID COIL
The FESTO MS6-EE-1/2-10V24 is a high-performance electrically actuated on/off valve designed for precision air control in industrial applications. Its robust piston gate design supports reliable 3/2-way operation, with a monostable configuration for safety and automation systems. Included is the FESTO 546256 solenoid coil, offering optimal actuation control.
Manufacturer: FESTO
Type: On/Off Valve

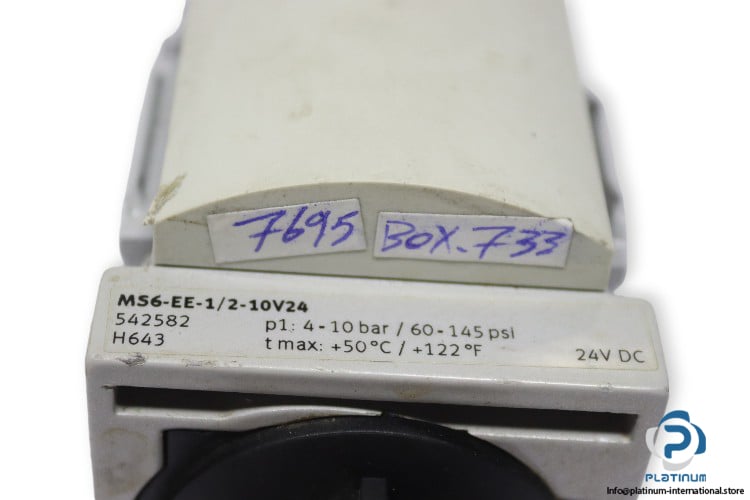

Model: MS6-EE-1/2-10V24
Part No.: 542582
Coil Technical Information
| Fluid | Air |
| Design | Piston gate valve |
| Function | 3/2-way, closed, monostable |
| Type of Actuation | Electrically |
| Operating Pressure | 4 ... 10 bar |
| Nominal Flow Rate | 7000 l/min |
| Pneumatic Connection | G1/2 |
| Material | Die-cast aluminium |
| Ambient Temperature | -10 ... 50 °C |

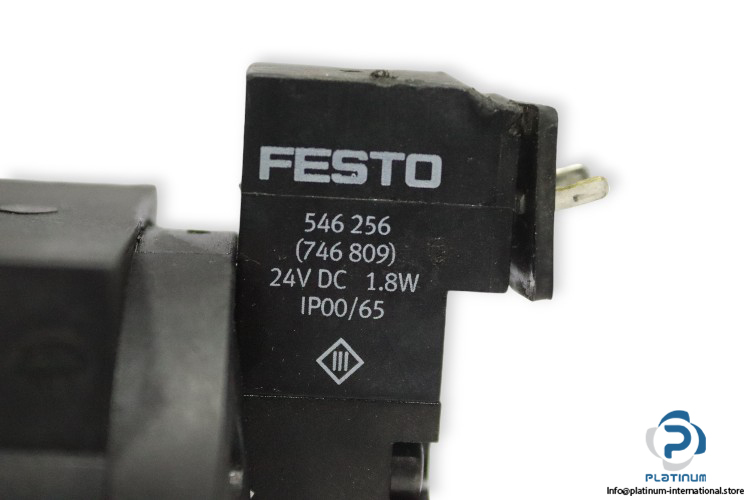

| Attachment | FESTO 546256 SOLENOID COIL |
| Supply Voltage | 24 V DC |
| Power Consumption | 1.8 W |
| Protection Class | IP00 / IP65 |
