Festo 542602 On/Off Valve
Used
In stock1 unitReady to ship
On/Off Valve
FESTO MS6-EE-1/2-10V24-S electrically actuated on/off valve with 3/2 monostable function, high flow capacity, and 24 VDC solenoid coil for compressed air systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

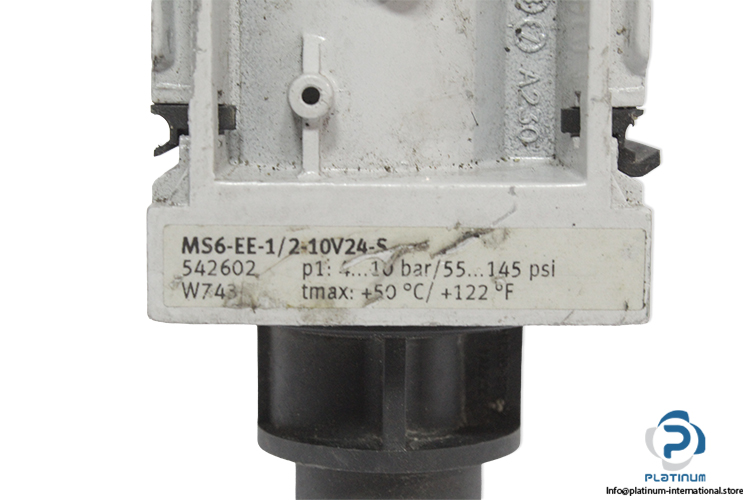

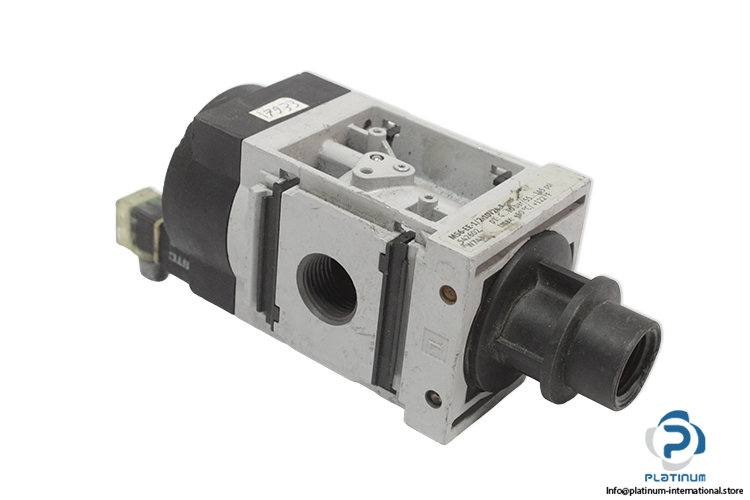

FESTO MS6-EE-1/2-10V24-S On/Off Valve
The FESTO MS6-EE-1/2-10V24-S is an electrically actuated on/off valve designed for compressed air systems. Featuring a piston gate valve design and pilot-controlled operation, it provides reliable switching performance with a monostable 3/2 valve function. The valve is equipped with a mechanical spring reset and a non-detenting manual override.
Manufacturer: FESTO
Type: On/Off Valve
Model: MS6-EE-1/2-10V24-S
MRN: 542602
| Operating Medium | Compressed Air |
| Structural Design | Piston Gate Valve |
| Actuation Type | Electrical |
| Exhaust Air Function | Without Flow Control Option |
| Manual Override | Non-Detenting |
| Reset Method | Mechanical Spring |
| Type of Control | Pilot-Controlled |
| Symbol | 00991008 |
| Valve Function | 3/2, Closed, Monostable |
| Operating Pressure | 4 bar / 10 bar |
| C Value | 29 l/sbar |
| b-Value | 0.4 |
| Normal Nominal Flow Rate (DIN 1343) | 7000 l/min |
| Ambient Temperature | -10 °C / 50 °C |
| Pneumatic Connection | G1/2 |
| Housing Material | Die-Cast Aluminum |

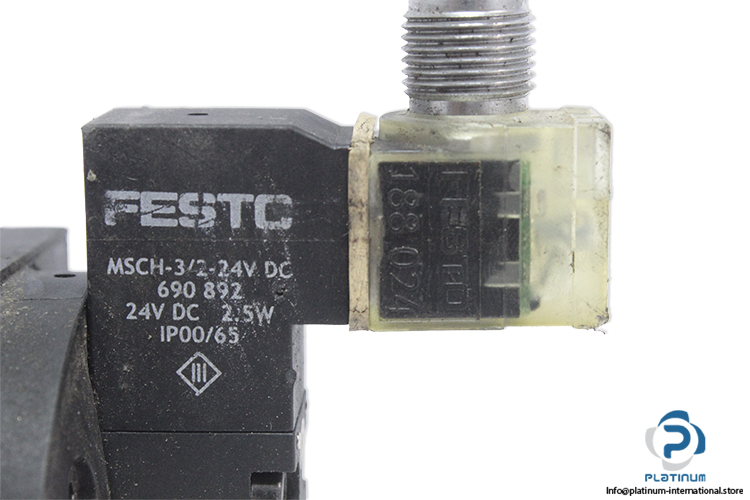

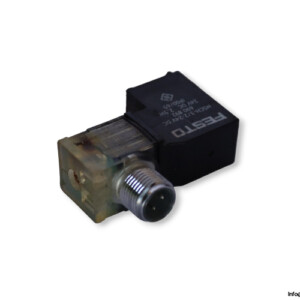

| Attached Solenoid Coil | FESTO 690892 |
| Coil Model | MSCH-3/2-24V DC |
| Voltage | 24 VDC |
| Power | 2.5 W |
| Protection Rating | IP00 / IP65 |
