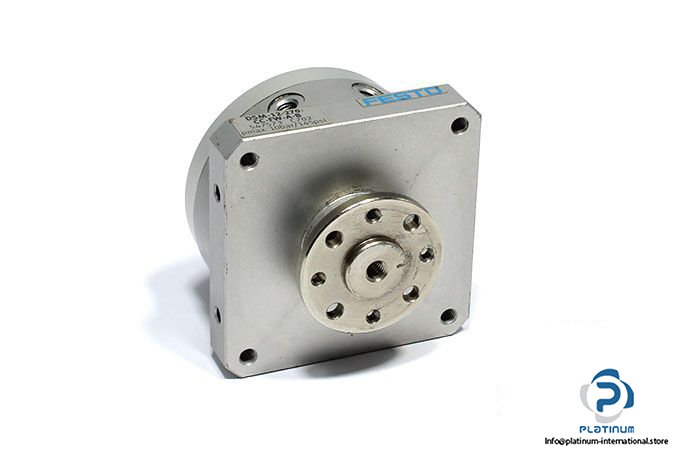

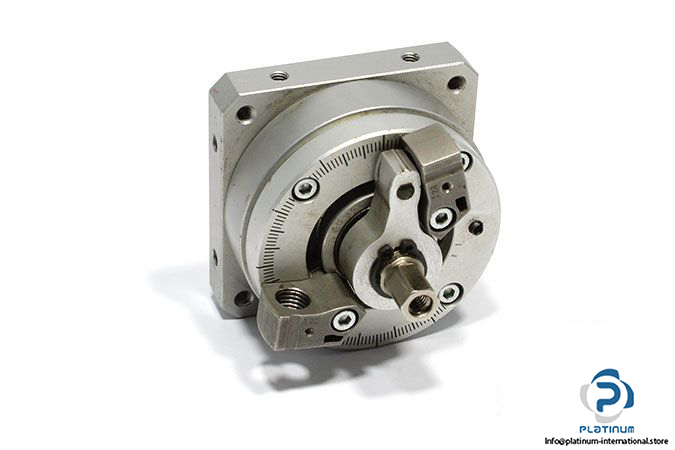

Festo 547573 Rotary Actuator

Manufacturer: Festo

Type: Rotary Actuator

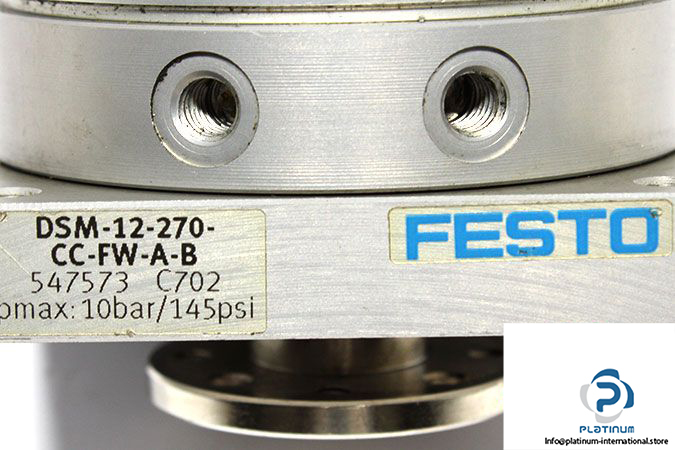

Model: DSM-12-270-CC-FW-A-B

Part No.: 547573

Size: 12

Cushioning Angle: 15 deg

Swivel Angle: 0…246 deg

Operating Pressure: 2…10 bar

Fluid: Air

Design: Rotary Vane

Torque at 6 bar: 1.25 Nm

Position Sensing: For Proximity Sensor

Pneumatic Connection: M5

Ambient Temperature: -10…60 °C

Mode of Operation: Double-Acting

Materials: Aluminum

Weight: 0.27 kg
