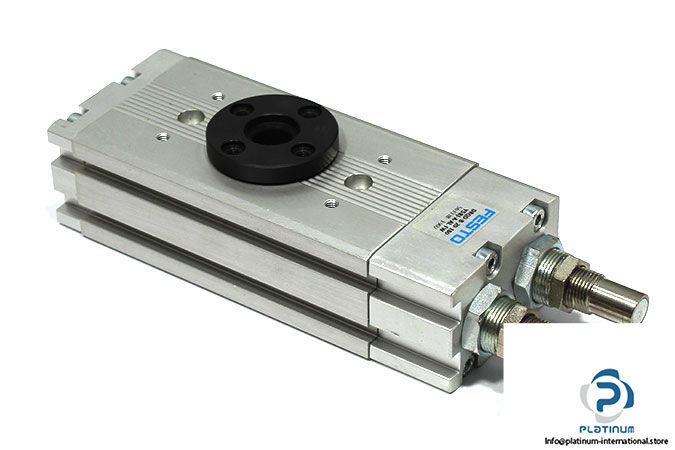

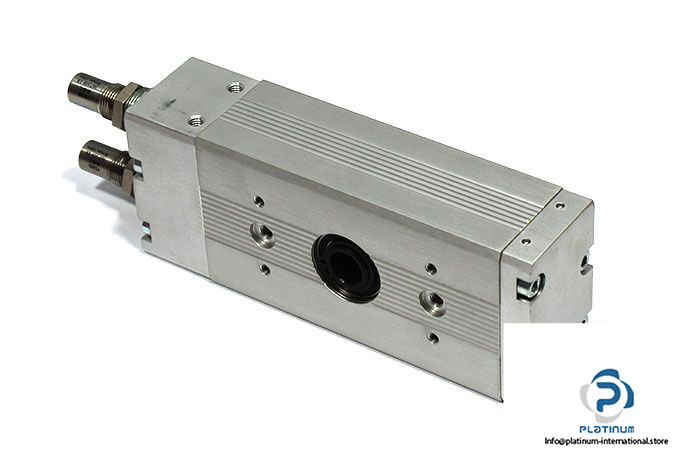

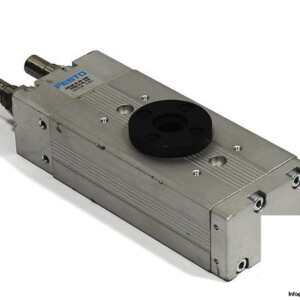

Festo 563338 Semi-Rotary Drive

Manufacturer: Festo

Type: Semi-Rotary Drive

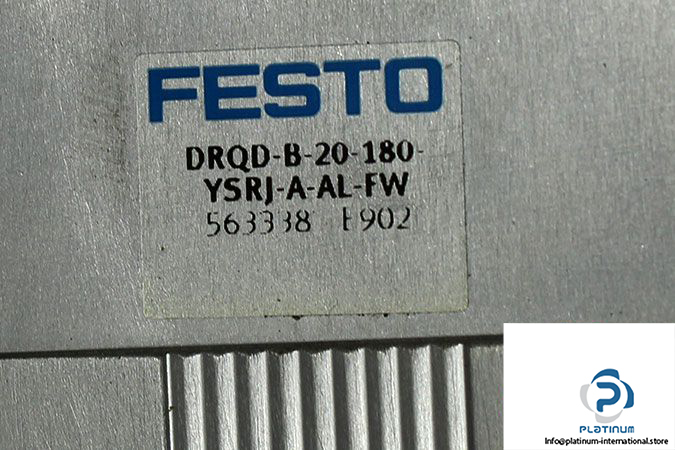

Model: DRQD-B-20-180-YSRJ-A-AL-FW

Alternative Model: DRRD-20-180-FH-Y9A

Part No.: 563338

Alternative Part No: 1427379

Size: 20

Rotation Angle Adjustment Range: -20…6 deg

Swivel Angle: 180 deg

Operating Pressure: 2…10 bar

Fluid: Air

Design: Rack and Pinion

Torque At 6 bar: 3.1 Nm

Pneumatic Connection: M5

Ambient Temperature: -10…60 °C

Mode of Operation: Double-Acting

Materials: Aluminum

Weight: 0.94 kg



Attachment: FESTO 567509 PNEUMATIC SHOCK ABSORBER

Manufacturer: Festo

Type: Pneumatic Shock Absorber

Model: YSRD-8-8-C

Part No.: 567509

Size: 8

Stroke: 8 mm

Cushioning: Self-Adjusting

Torque: 3 Nm

Housing Material: High-Alloy Steel
