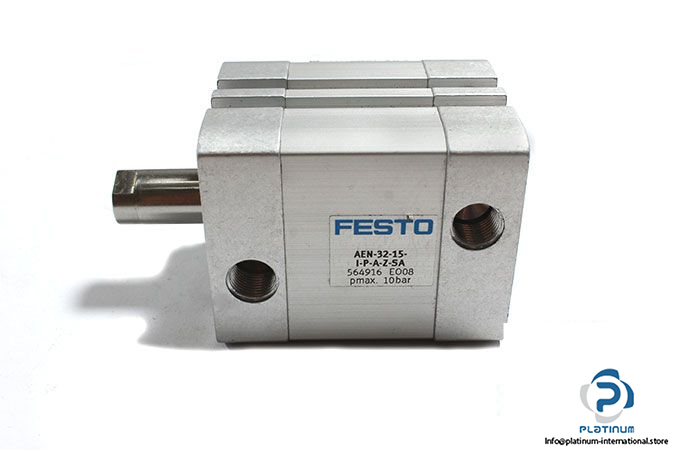

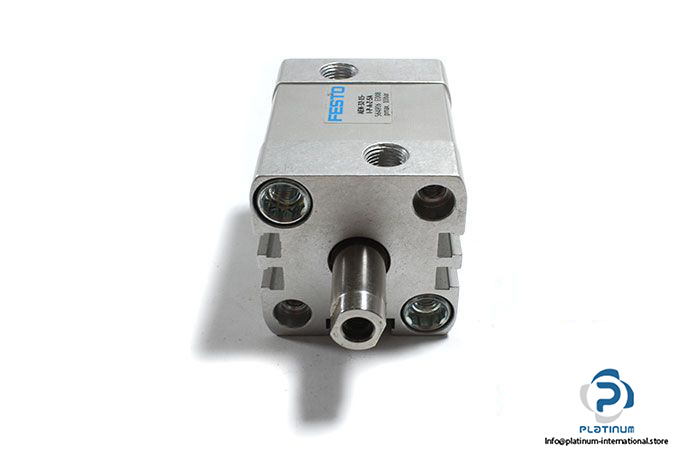

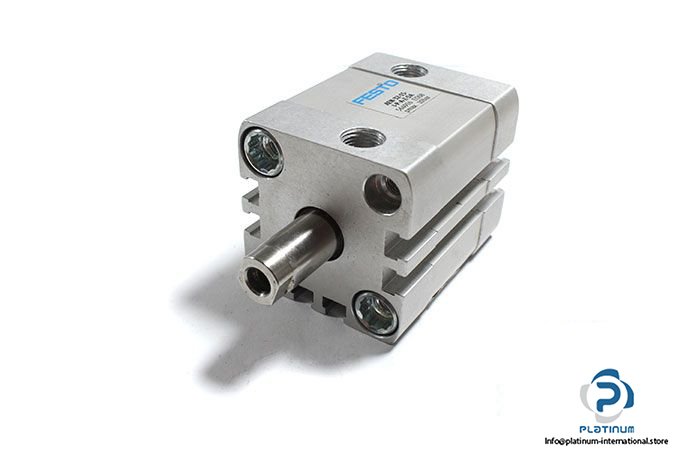

Festo 564916 Compact Cylinder

Manufacturer: FESTO

Type: Double-Acting Compact Cylinder

Model: AEN-32-15-I-P-A-Z-SA

Part No.: 564916

Materials

  Cylinder Tube: Aluminium wrought alloy Smooth anodised

  Piston rod: High-alloy steel

Stroke Length: 15 mm

Piston Diameter: 32 mm

Piston rod thread: Female thread

Operating Pressure: 0.6 … 10 bar

Cushioning: Flexible cushioning rings/pads at both ends

Position Sensing: Via proximity sensor

Pneumatic Connection: G1/8

Mode of operation: Double-acting

Temperature: -20 … 80 °C

Weight: 0.28 kg
