Festo 566502 Double Solenoid Valve
Used
In stock1 unitReady to ship
Festo VUVG-L14-P53E-T-G18-1P3 Double Solenoid Valve “ Electrically actuated 5/3 exhausted valve with 560 l/min flow rate, 14 mm valve size, and G1/8 port. Designed for fast and precise control in automation systems.
245/3566502AirAluminiumAutomationControlDoubleExhaustedFastFestoG1/8IndustrialPneumaticPortsolenoidSwitchingValveVDCVUVG-L14-P53E-T-G18-1P3wrought
New
Available on request
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

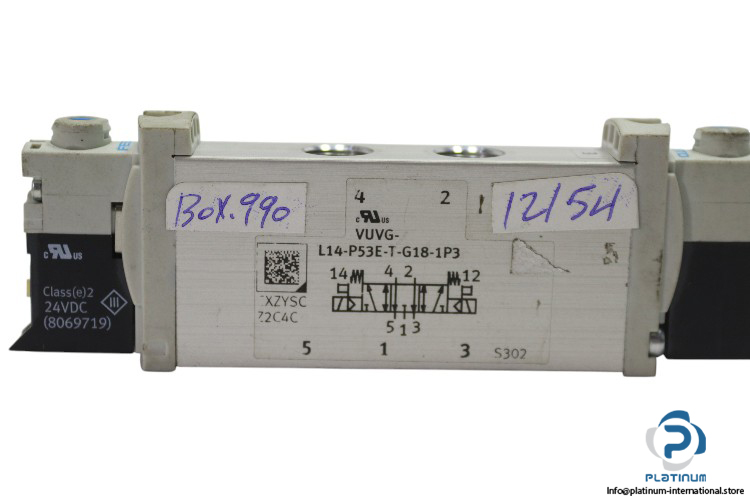

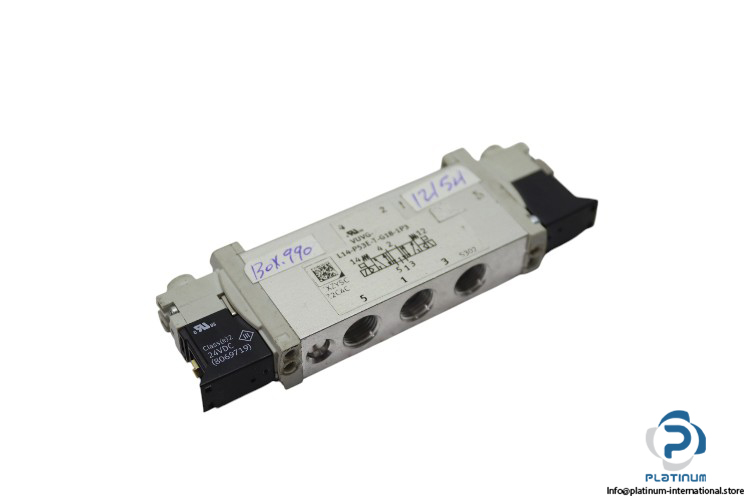

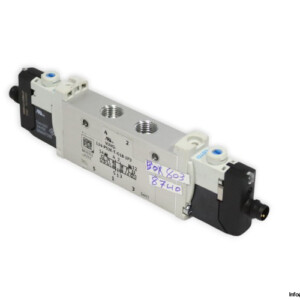

Festo VUVG-L14-P53E-T-G18-1P3 Double Solenoid Valve
The Festo VUVG-L14-P53E-T-G18-1P3 is a high-performance double solenoid valve designed for fast, precise pneumatic control. With robust housing and rapid switching times, it is ideal for demanding industrial automation systems requiring reliable airflow control.
Manufacturer: Festo
Type: Double Solenoid Valve
Model: VUVG-L14-P53E-T-G18-1P3
Part No.: 566502
| Type of Actuation | Electrically |
| Valve Size | 14 mm |
| Valve Function | 5/3 Exhausted |
| Standard Nominal Flow Rate | 560 l/min |
| Operating Pressure | 3 to 8 bar |
| Switching Time Off | 40 ms |
| Switching Time On | 12 ms |
| Operating Medium | Compressed Air |
| Material Housing | Wrought Aluminium Alloy |
| Ambient Temperature | -5 to 60 °C |
| Port Size | G1/8 |
| Voltage | 24 VDC |
