Festo 566502 Double Solenoid Valve
New
Available on request
DOUBLE SOLENOID VALVE WITH COIL & SUB-BASE
FESTO VUVG-L14-P53E-T-G18-1P3 is a 5/3 exhausted double solenoid valve with 560 l/min flow rate, electrical actuation, and G1/8 connection”supplied with coil and electrical sub-base.5/38069719AircoilControlDoubleFestoG1/8IndustrialPneumaticsolenoidSub-BaseValveVAVE-L1-1VR8-LPVUVG-L14-P53E-T-G18-1P3
Used
In stock
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

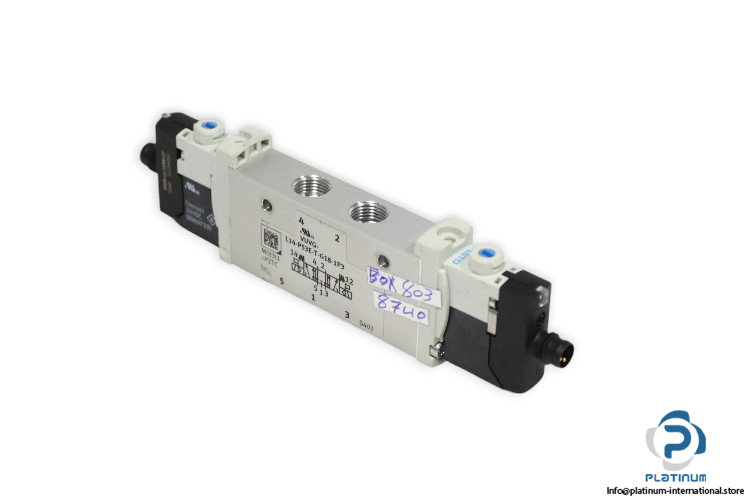

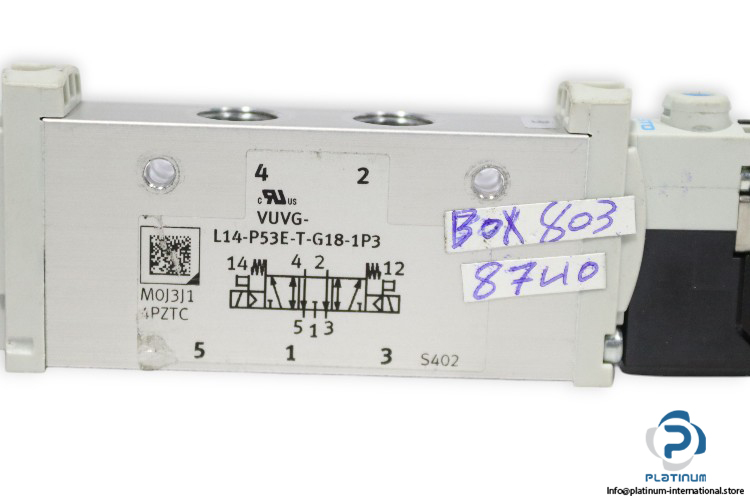

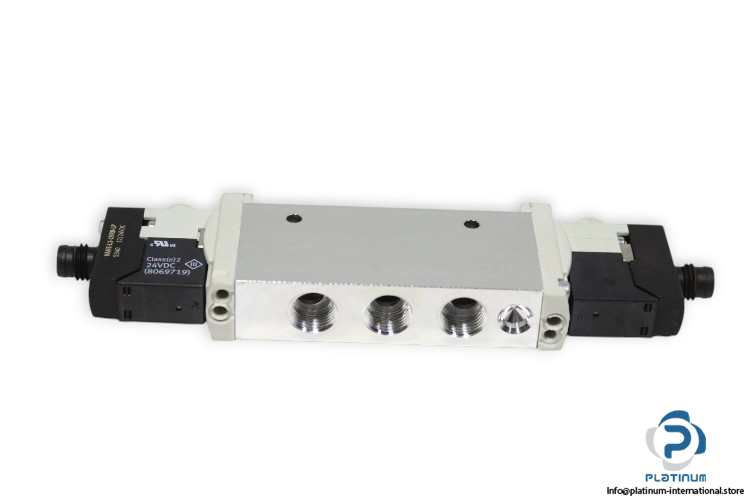

FESTO VUVG-L14-P53E-T-G18-1P3 DOUBLE SOLENOID VALVE WITH COIL AND SUB-BASE
The FESTO VUVG-L14-P53E-T-G18-1P3 is a high-performance double solenoid valve designed for dynamic air control in industrial pneumatic systems. Engineered with a piston gate valve design, this 5/3 exhausted function valve operates reliably under a wide pressure range and ambient conditions. Supplied with a FESTO 8069719 solenoid coil and VAVE-L1-1VR8-LP electrical sub-base, the assembly provides precise, responsive operation and robust integration.
Manufacturer: FESTO
Type: Double Solenoid Valve
Model: VUVG-L14-P53E-T-G18-1P3
Part No.: 566502
Valve Technical Specifications
- Fluid: Air
- Design: Piston gate valve
- Function: 5/3 exhausted
- Type of Actuation: Electrically
- Operating Pressure: 3 / 8 bar
- Nominal Flow Rate: 560 l/min
- Pneumatic Connection: G1/8
- Material: Wrought aluminium alloy
- Ambient Temperature: -5 / 60 °C
Attachment: FESTO Solenoid Coil
Manufacturer: FESTO
Type: Solenoid Coil
Model: 8069719
Supply Voltage: 24 V DC

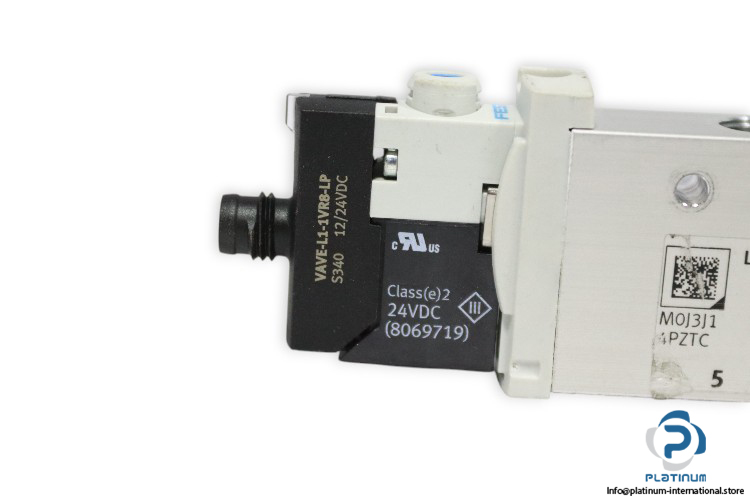

Attachment: FESTO Electrical Sub-Base
Manufacturer: FESTO
Type: Electrical Sub-Base
Model: VAVE-L1-1VR8-LP
Part No.: 573919
- Nominal Operating Voltage: 12 / 24 V DC
- Electrical Connection: 3-pin / 2-pin M8 Plug connector/socket
- Material: PA
- Ambient Temperature: -5 / 60 °C
