Festo 570842 Round Cylinder
Used
In stock1 unitReady to ship
Festo DSNU-X-25-185-PPV-A-R82 Round Cylinder “ Double-acting pneumatic cylinder with 25 mm piston, 185 mm stroke, G1/8 port, and dust-protected design. Features adjustable cushioning and sensor compatibility.
25ActingAdjustableAirAutomationCompatibleCushioningcylindeCylinderDoubleDSNU-X-25-185-PPV-A-R82DustFestoG1/8IndustrialmmPistonPneumaticPortProtectionProximityRoundSensor
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

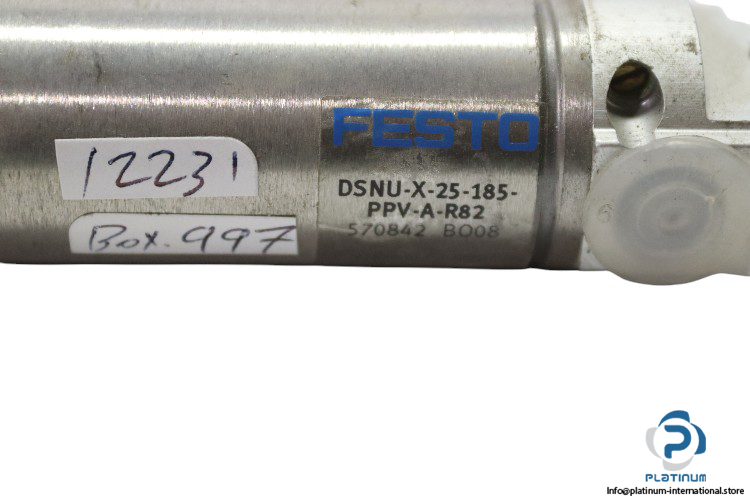

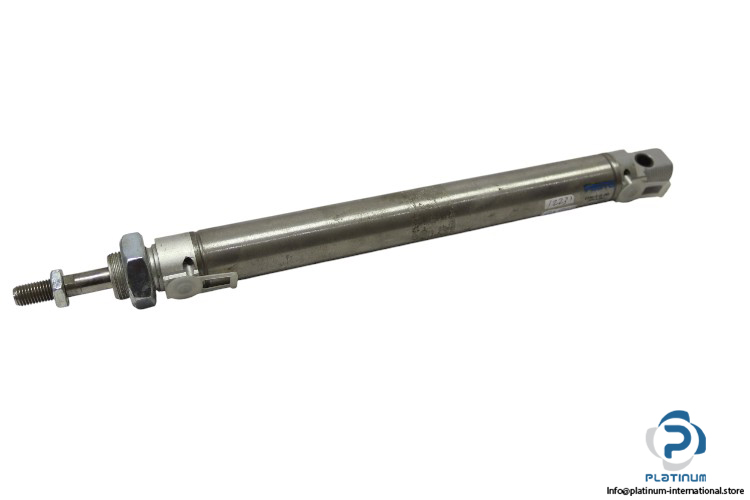

Festo DSNU-X-25-185-PPV-A-R82 Round Cylinder
The Festo DSNU-X-25-185-PPV-A-R82 is a precision-engineered round cylinder designed for dynamic pneumatic applications. It features a 25 mm piston diameter and 185 mm stroke, with adjustable pneumatic cushioning and dust protection, making it ideal for reliable operation in demanding industrial environments.
Manufacturer: Festo
Type: Round Cylinder
Model: DSNU-X-25-185-PPV-A-R82
Part No.: 570842
| Piston Diameter | 25 mm |
| Stroke | 185 mm |
| Pneumatic Connection | G1/8 |
| Mode of Operation | Double Acting |
| Operating Medium | Compressed Air |
| Maximum Operating Pressure | 10 bar |
| Shape | Circular |
| Ambient Temperature | -20 to 80 °C |
| Type of Mounting | Direct Mounting |
| Scraper Variant | Dust Protection |
| Position Sensing | For Proximity Sensor |
| Cushioning | Pneumatic Cushioning, Adjustable at Both Ends |
| Piston Rod Thread | Male |
| Rod Direction | One Side |
