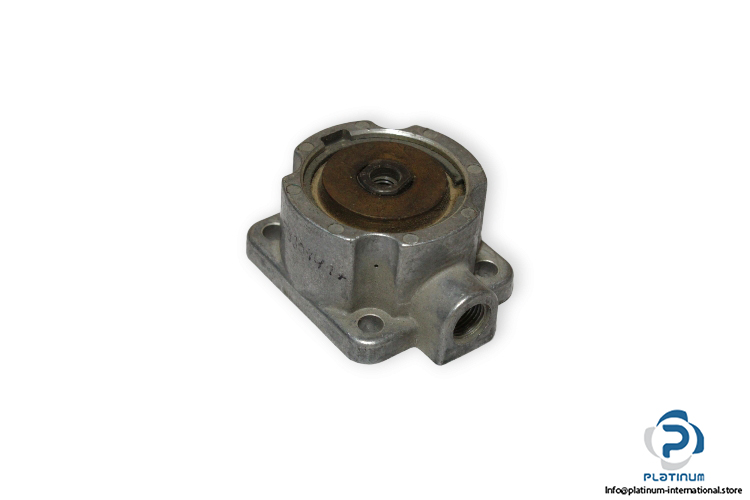

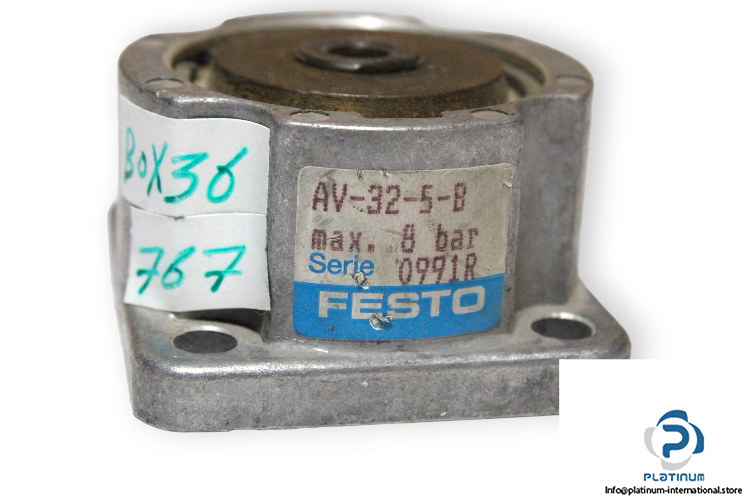

Festo 7855 Pneumatic Cylinder

Manufacturer: FESTO
Type: Pneumatic Cylinder
Model: AV-32-5-B
Part No.: 7855

Mode of operation: Single, pushing
Shape piston: Round
Shape of piston rod: Round
Piston, nominal size: 32
Stroke: 5 mm
Piston rod diameter: 12 mm
End of piston rod: Female thread
KK Piston rod thread: M 6
Operating pressure min.: 0,5 bar
Operating pressure max.: 10 bar
Minimum ambient temperature: -20 °C
Maximum ambient temperature: 80 °C
Material of barrel/housing: Aluminium
Air connection type cover cap: Female thread
EE Connecting thread for end cap: G 1/8
Effective force (theor.) at 6 bar, adv: 0.440 N
