Festo 7959 Single Solenoid Valve With Coil
SINGLE SOLENOID VALVE

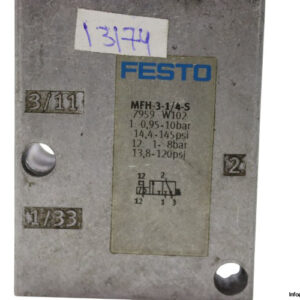

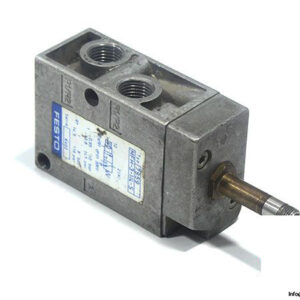

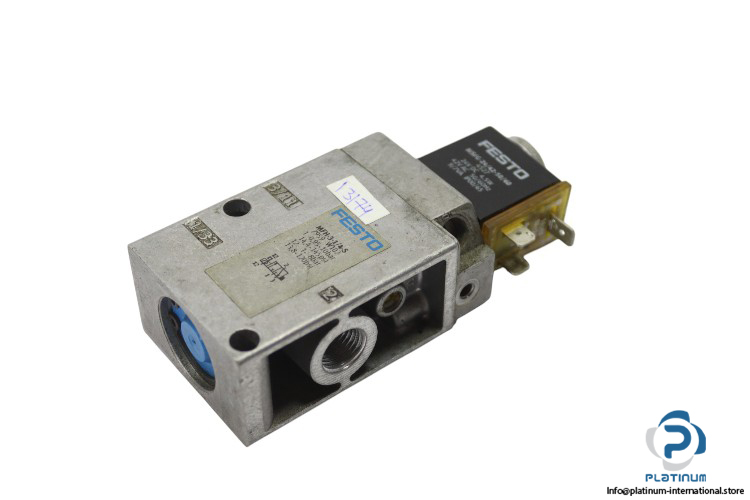

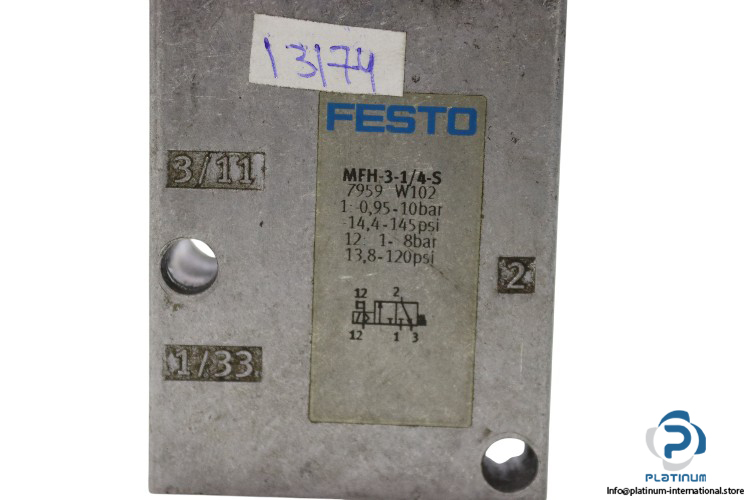

FESTO MFH-3-1/4-S is a 3/2-way single solenoid valve with electrical actuation, pilot control, and 800 l/min nominal flow. Supplied with FESTO MSFG-24/42-50/60 coil for complete pneumatic control.FESTO MFH-3-1/4-S SINGLE SOLENOID VALVE WITH COIL
The FESTO MFH314S Single Solenoid Valve is a robust and reliable component designed for precise control of compressed air in pneumatic systems. Electrically actuated and pilot controlled, it features a monostable 3/2-way valve function with high flow efficiency. Supplied complete with the FESTO MSFG-24/42-50/60 solenoid coil, this unit is ideal for demanding industrial automation environments.
Manufacturer: FESTO
Type: Single Solenoid Valve
Model: MFH-3-1/4-S
Part No.: 7959
Technical Information (Valve)
Fluid: Compressed Air
Valve Function: 3/2-Way, Closed, Monostable
Type of Actuation: Electrically
Operating Pressure: -0.9 / 10 bar / -0.095 … 1 MPa
Nominal Flow Rate: 800 l/min
Piloting Type: Pilot Actuated
Pilot Pressure: 1 … 8 bar / 0.1 … 0.8 MPa
Material: Die-Cast Aluminium
Pneumatic Connection: G 1/4
Attachment: Solenoid Coil

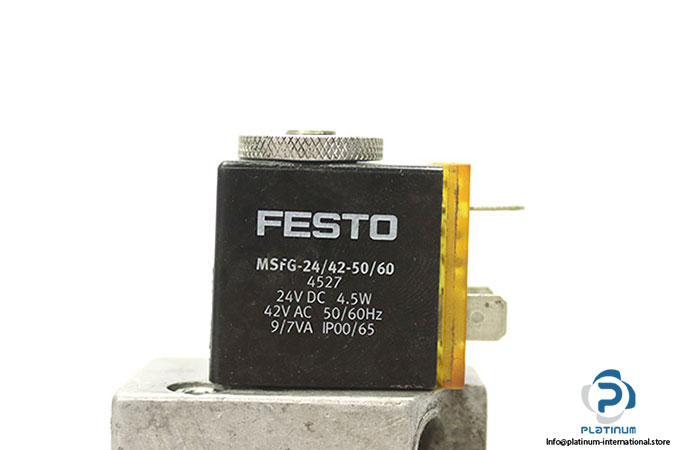

Manufacturer: FESTO
Type: Solenoid Coil
Model: MSFG-24/42-50/60
Part No.: 4527
Supply Voltage: 24 V DC / 42 V AC
Frequency: 50 / 60 Hz
Power Consumption: 4.5 W / 9/7 VA
Protection Class: IP00/65
